DC2010A
LT8612 Demo Circuit | 5.8V ≤ VIN ≤ 42V, VOUT = 5V @ 6A
トップへ
製品概要
製品概要

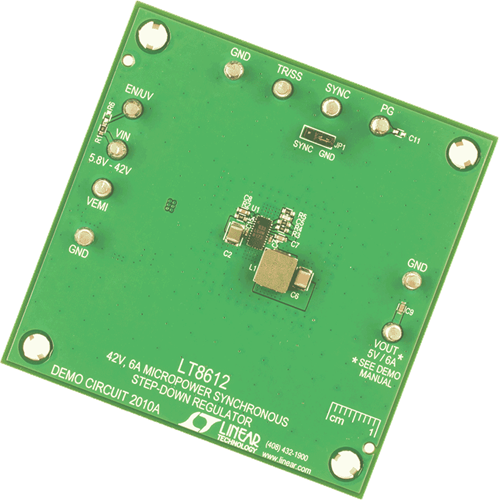

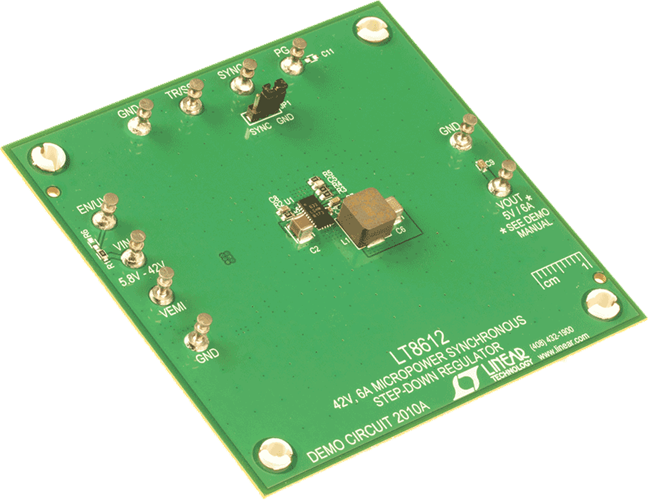

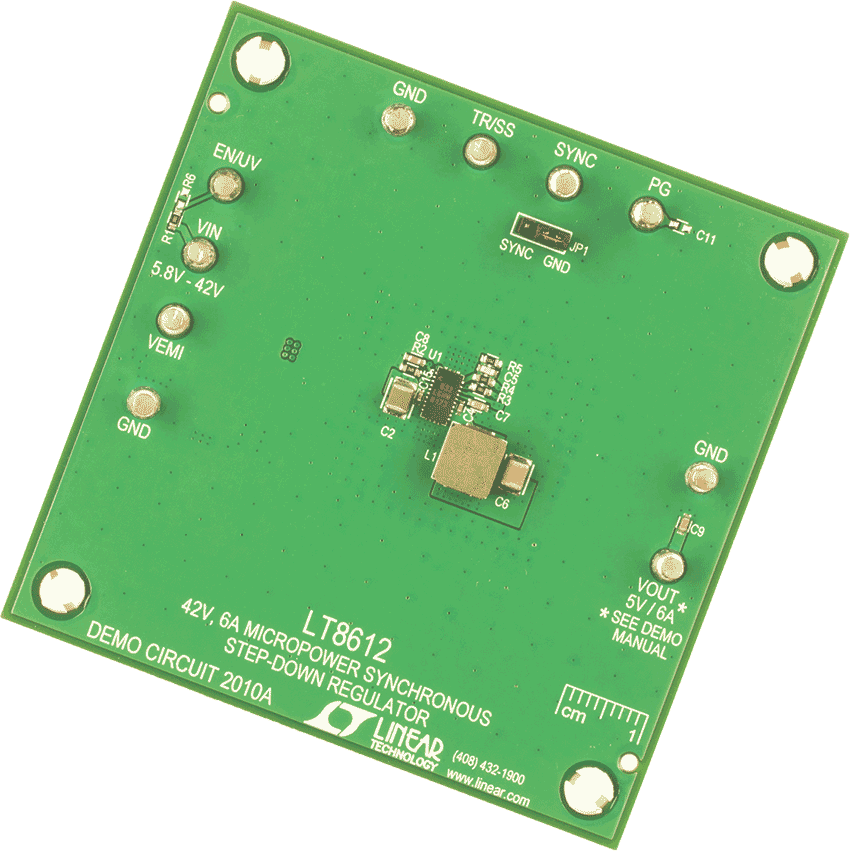

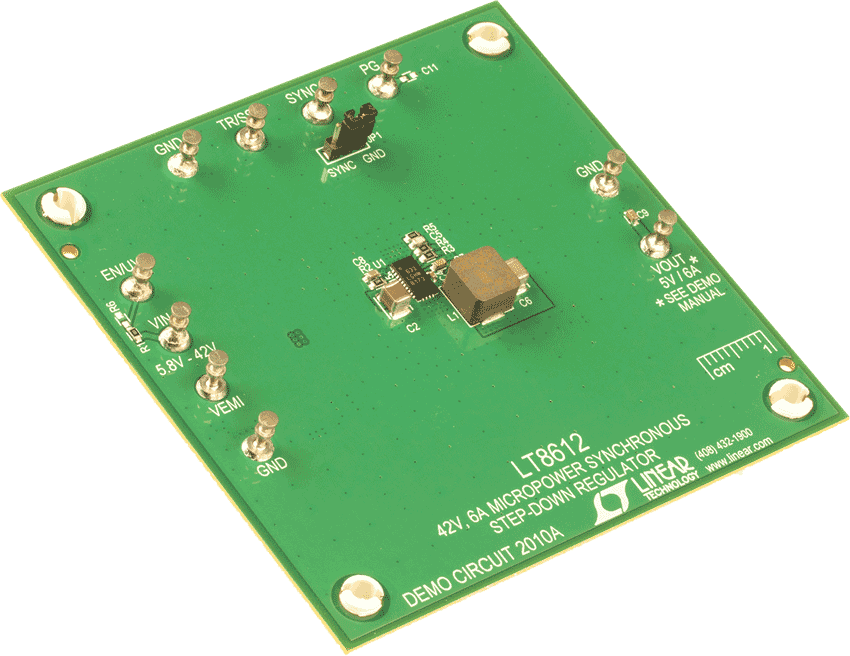

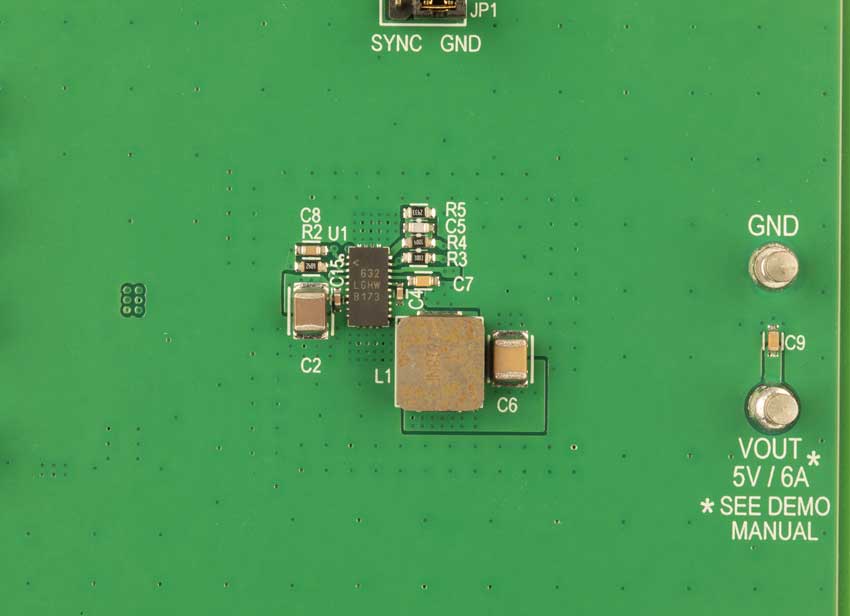

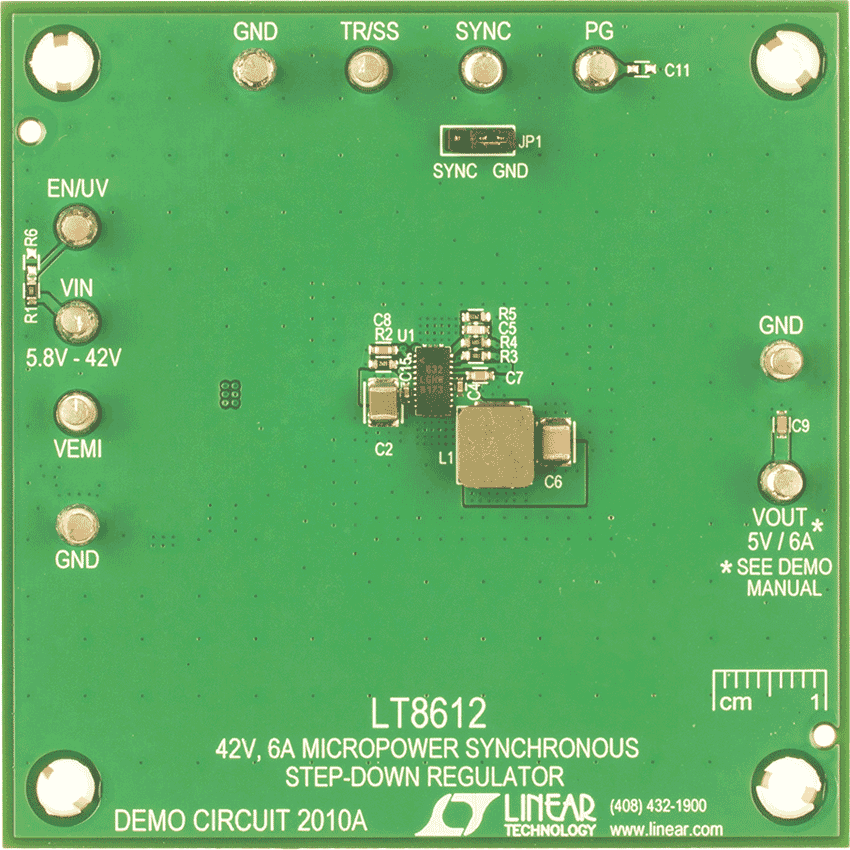

Demonstration circuit 2010A is a 42V, 6A micropower synchronous step-down regulator featuring the LT8612. The demo board is designed for 5V output from a 5.8V to 42V input. The wide input range allows a variety of input sources, such as automotive batteries and industrial supplies. The LT8612 is a compact, high efficiency, and high speed synchronous monolithic step-down switching regulator. The integrated power switches and inclusion of all necessary circuitry reduce the components count and solution size. Ultralow 3μA quiescent current in Burst Mode® operation achieves high efficiency at very light loads. Fast minimum on-time of 40ns enables high VIN to low VOUT conversion at high frequency.
関連資料
-

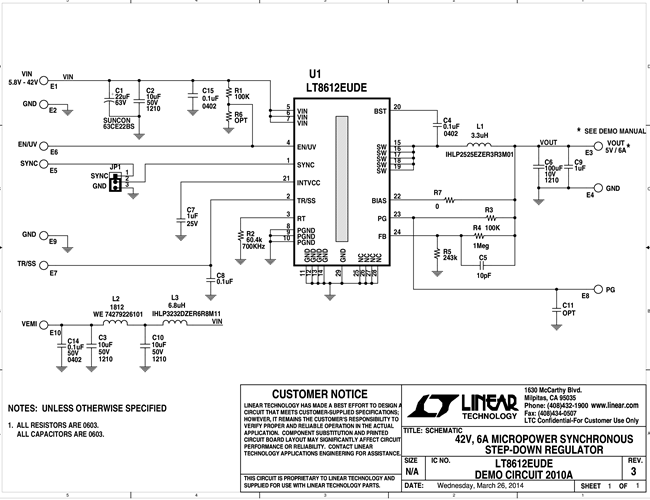

DC2010A - Schematic2014/04/14PDF30K
-
DC2010A - Demo Manual2015/09/16PDF219K
-
DC2010A - Design Files2014/04/14ZIP1M
