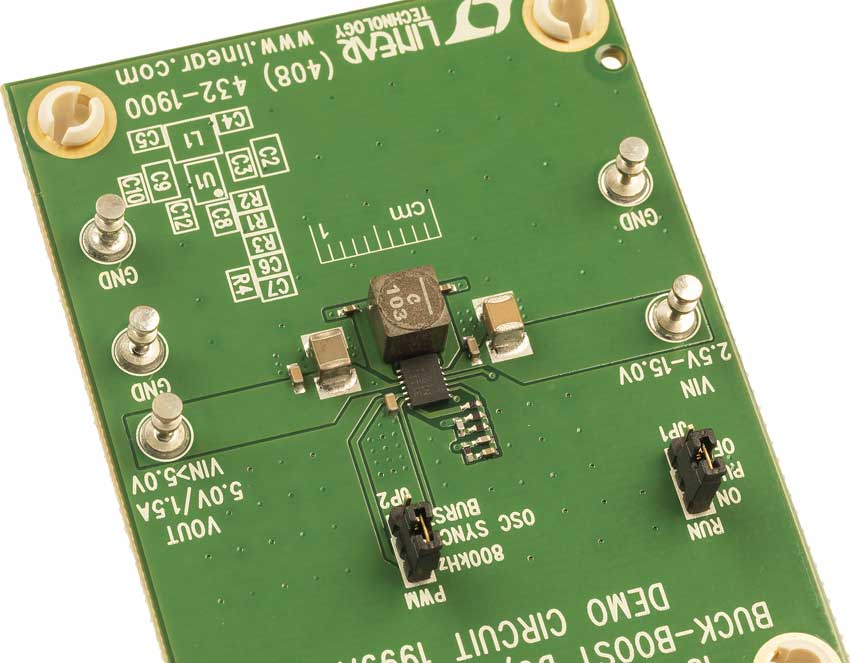

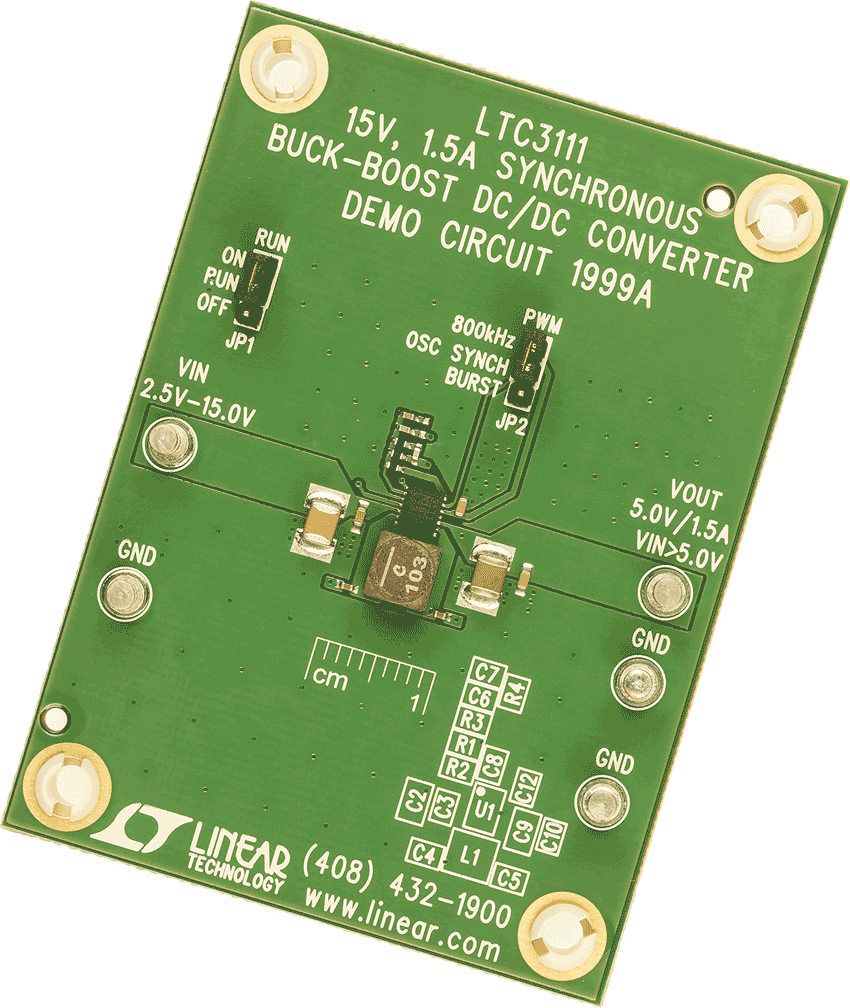

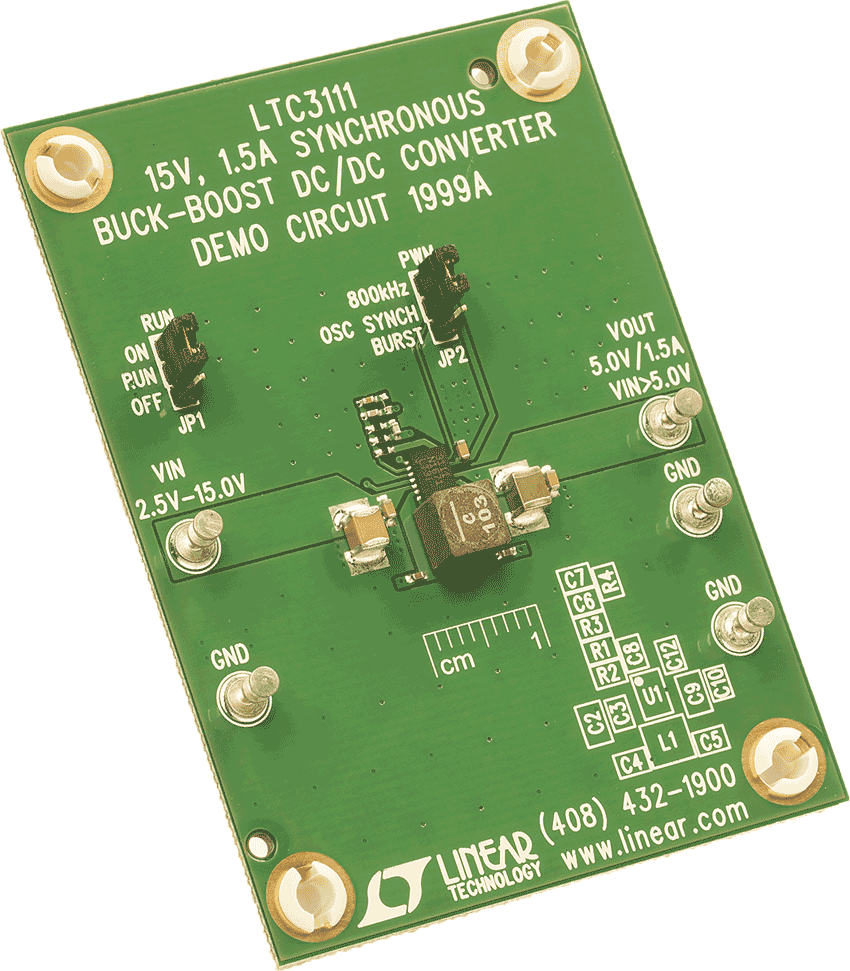

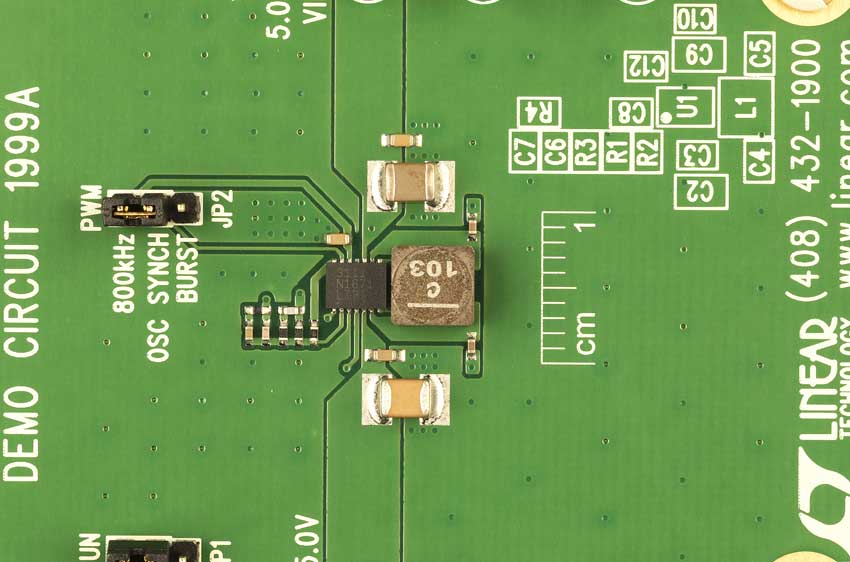

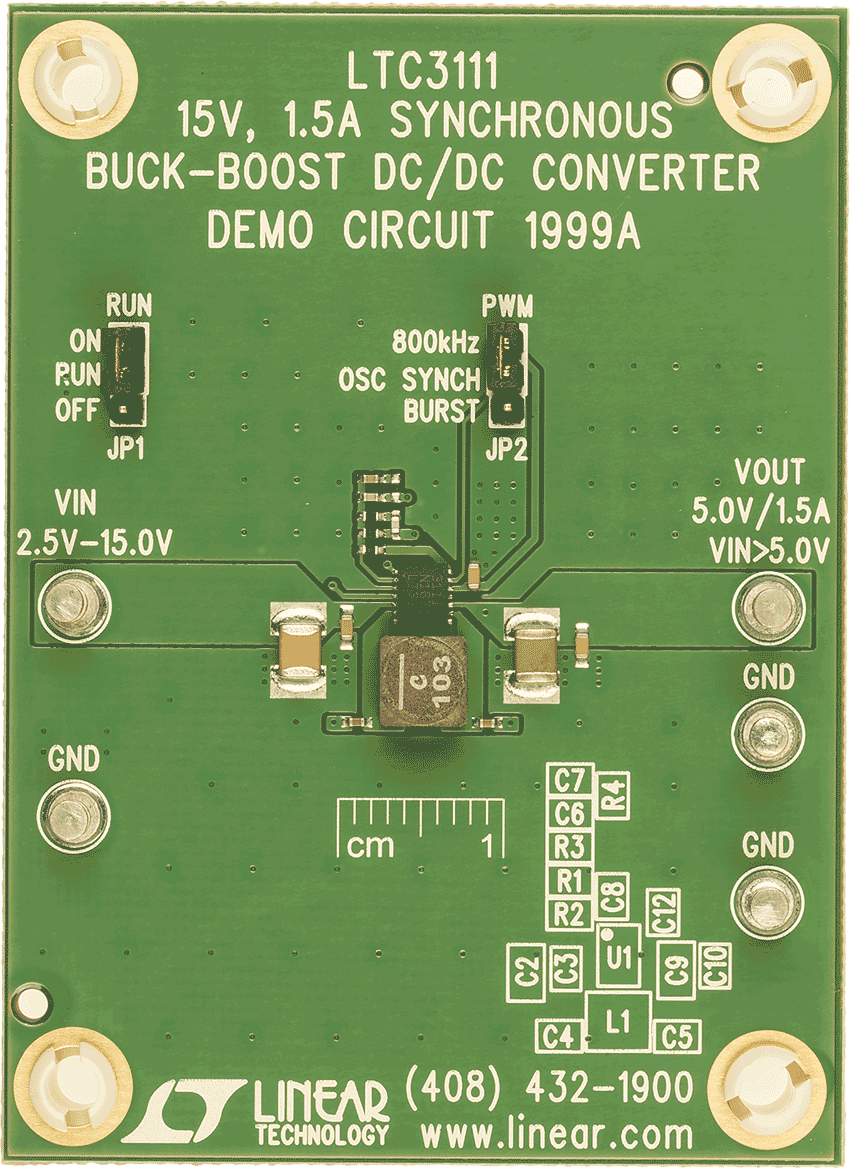

DC1999A
LTC3111 Demo Board | Buck-Boost Converter, 2.5V ≤ VIN ≤ 15V, VOUT = 5V @ 1.5A
トップへ
製品概要
製品概要
Demonstration circuit 1999A is a fixed frequency synchronous buck-boost converter with an extended input and output range. The unique 4-switch, single inductor architecture provides low noise and seamless operation from input voltages above, below, or equal to the output voltage.
対象となる製品
関連資料
-
DC1999A - Schematic2014/02/27PDF87K
-
DC1999A - Demo Manual2014/02/27PDF525K
-
DC1999A - Design Files2014/02/27ZIP809K
