DC1989B-B
LTM4676A Demo Board | LTM4676A(x3) Current Shared, PMBus Buck µModule, 4.5V ≤ VIN ≤ 17V, VOUT = 0.5V to 4V @ 75A
トップへ
製品概要
製品概要

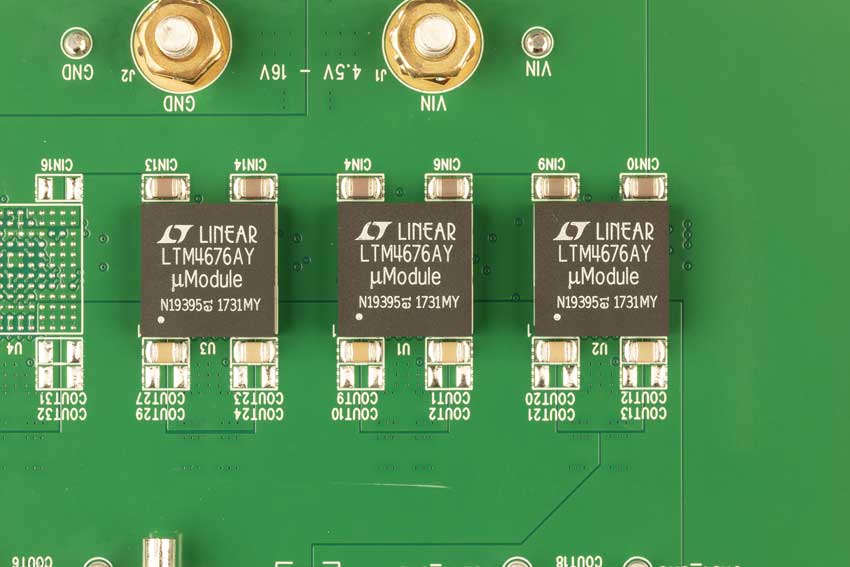

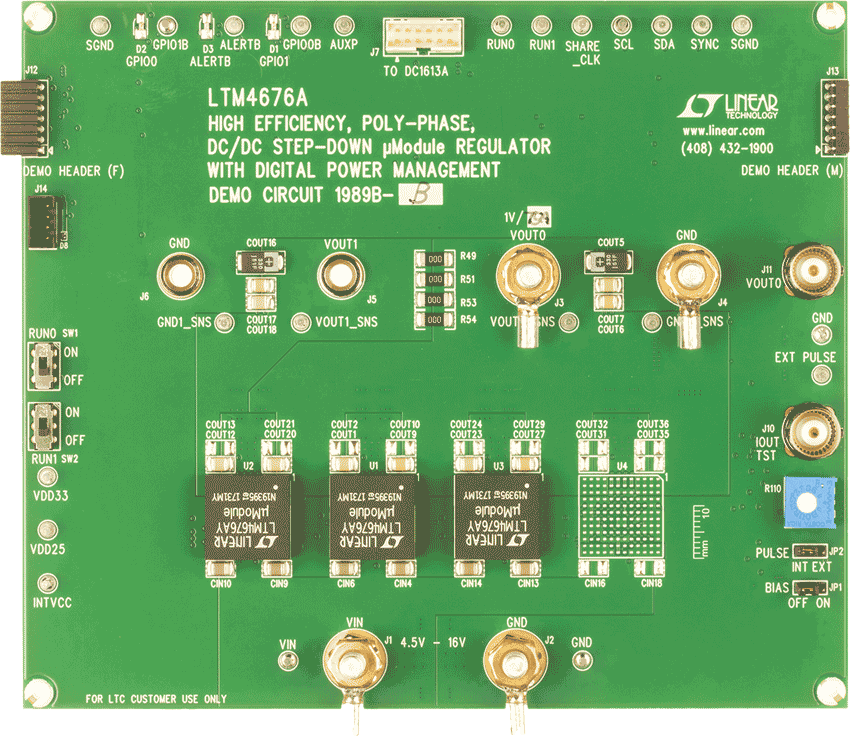

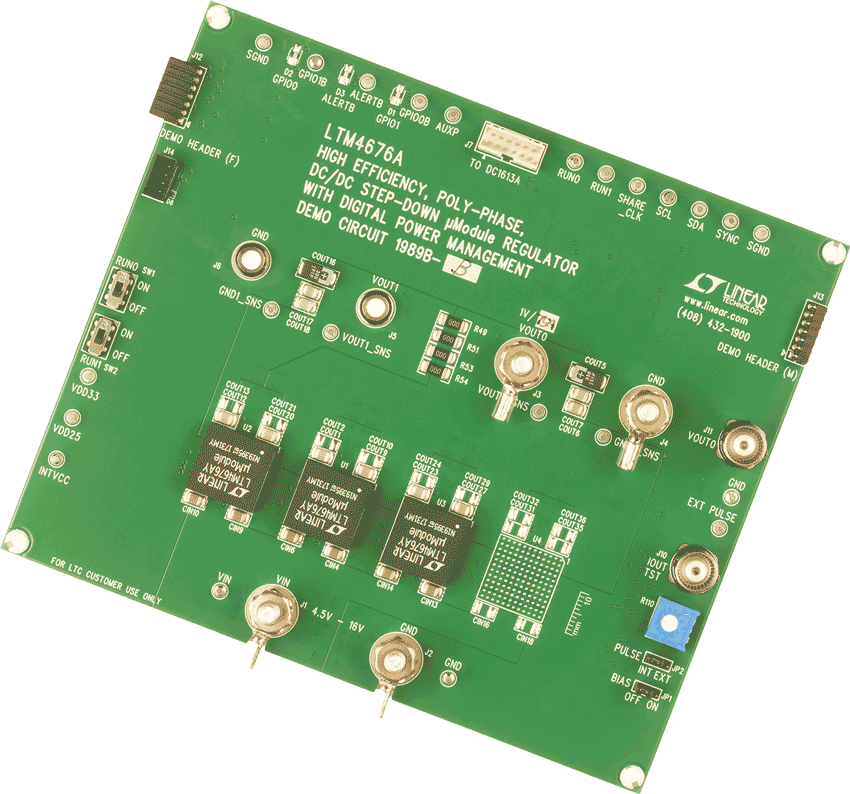

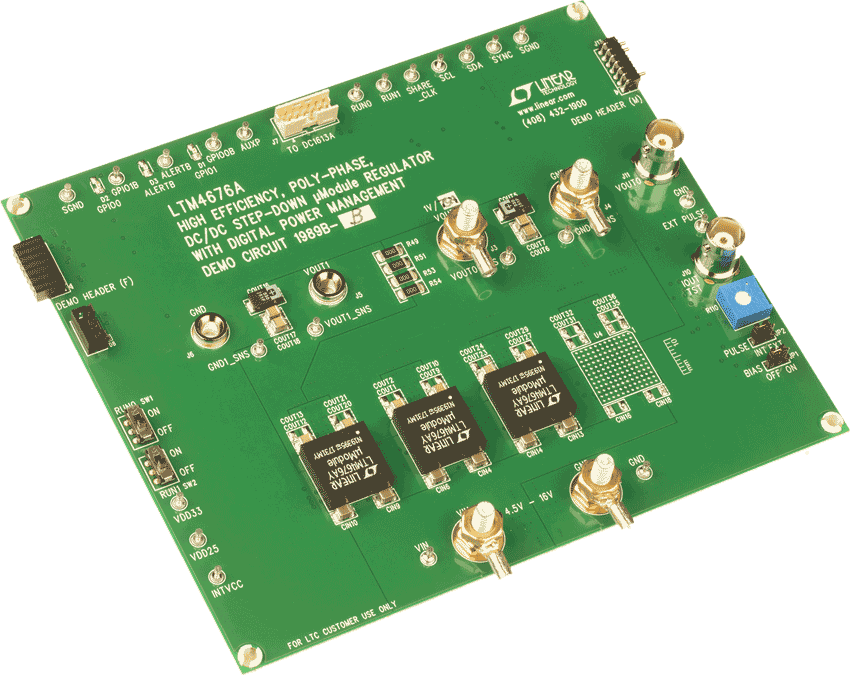

Demonstration circuit 1989B-B is a high efficiency, high density, μModule regulator with 4.5V to 17V input range. The output voltage is adjustable from 0.5V to 4V, and it can supply 75A maximum load current. The demo board has three LTM4676A μModule regulators, and the LTM4676A is a dual 13A or single 26A step-down regulator with PMBus power system management. Please see LTM4676A data sheet for more detailed information.
対象となる製品
関連資料
-
DC1989B-B - Schematic2016/10/13PDF172K
-
DC1989B-B - Demo Manual2016/10/13PDF1M
-
DC1989B-B - Design Files2016/10/13ZIP4M
