DC1984A
LTC5510 | Demo Board - (Low Frequency) Input Frequency Range 30MHz to 2.6GHz; Output Range 10MHz to 1.3GHz
トップへ
製品概要
製品概要

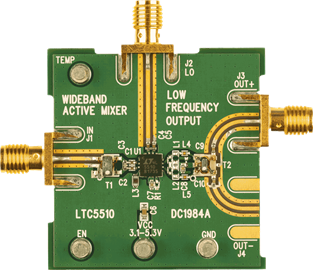

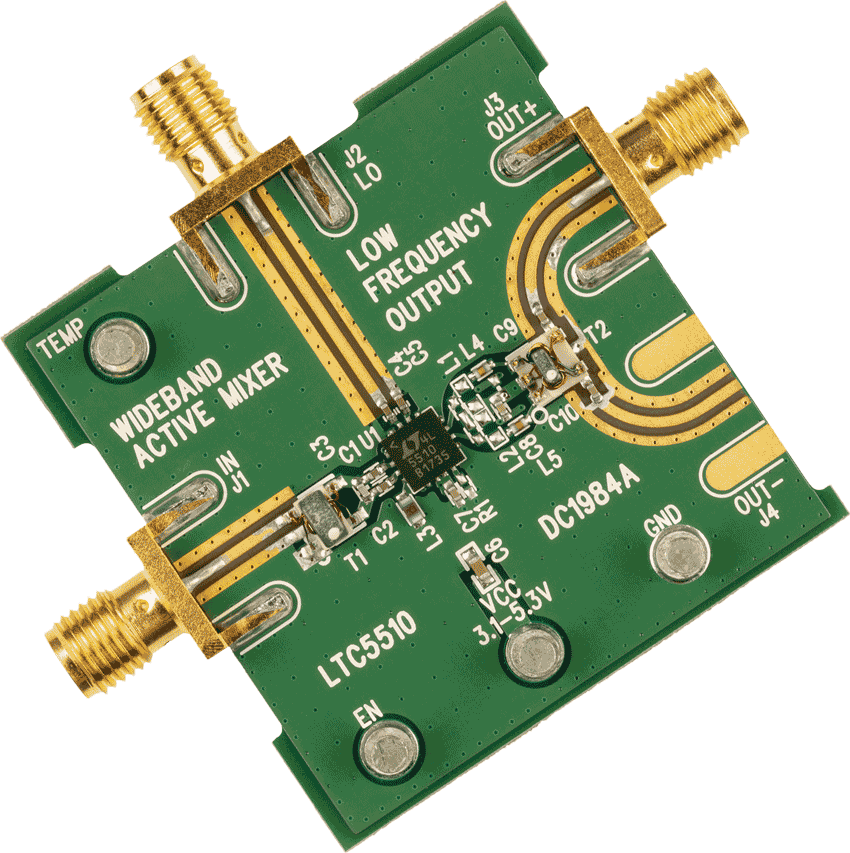

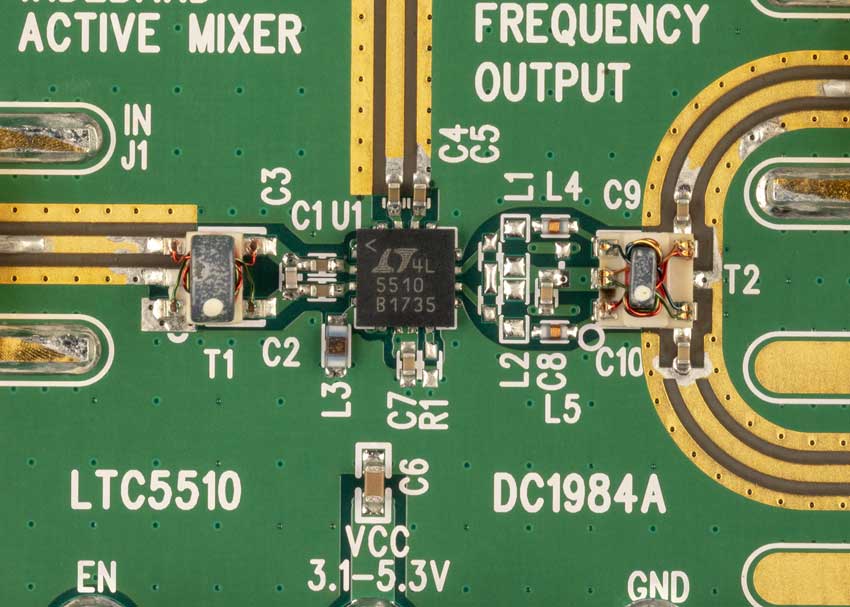

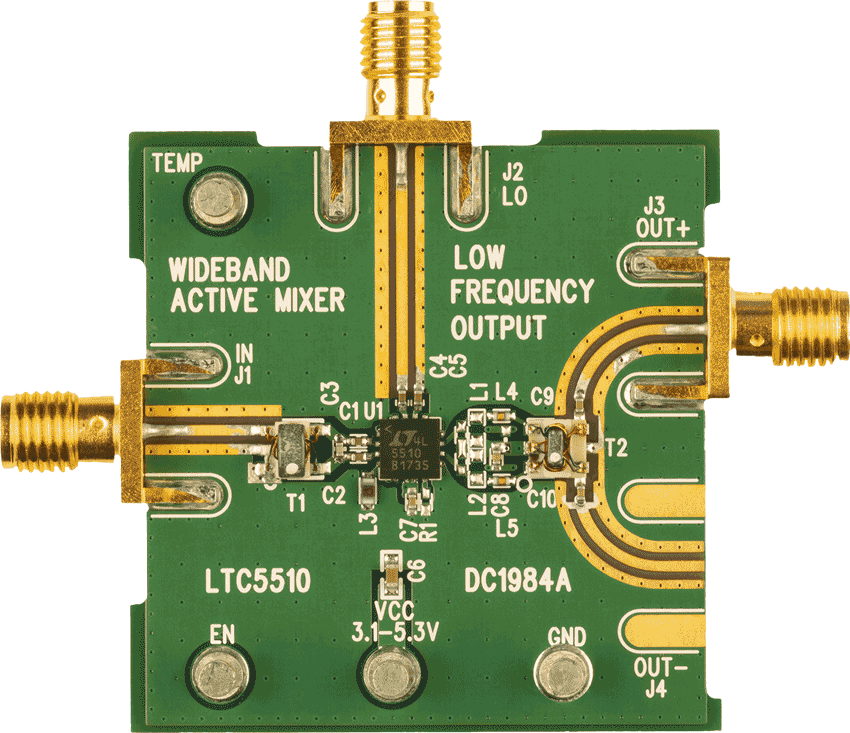

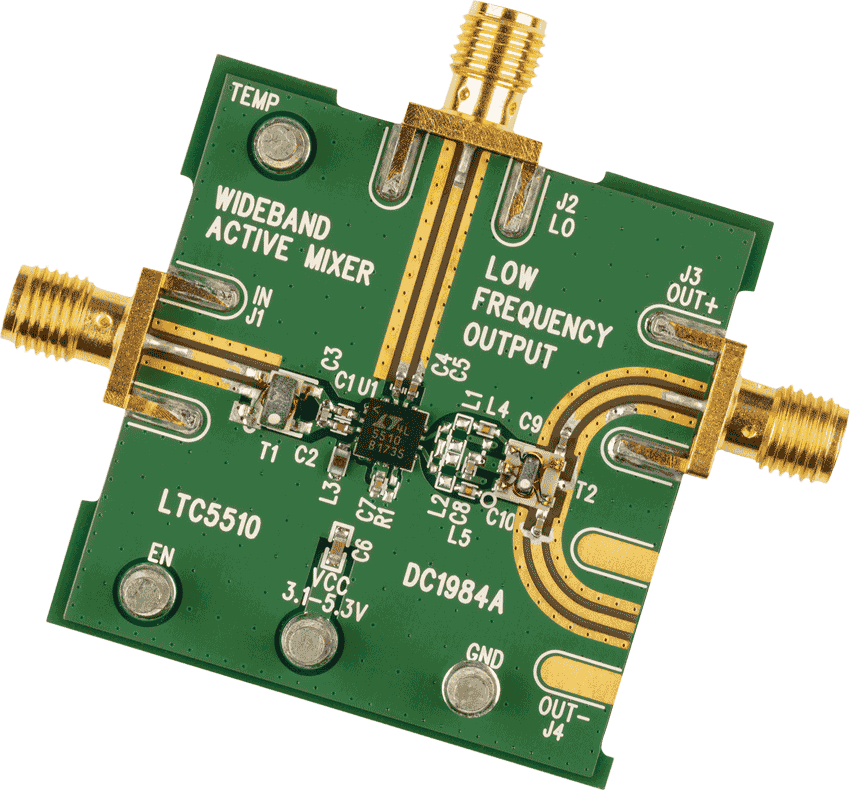

Demonstration circuit 1984A showcases the LTC5510. wideband high linearity active mixer for VHF/UHF upmixer applications, where a 70MHz input signal is upconverted to the 100MHz to 1GHz output range. Its input port is optimized for 30MHz to 2.6GHz, and its output port is optimized for 10MHz to 1.3GHz. The LO input can be either high side or low side.
マーケット＆テクノロジー
対象となる製品
関連資料
-

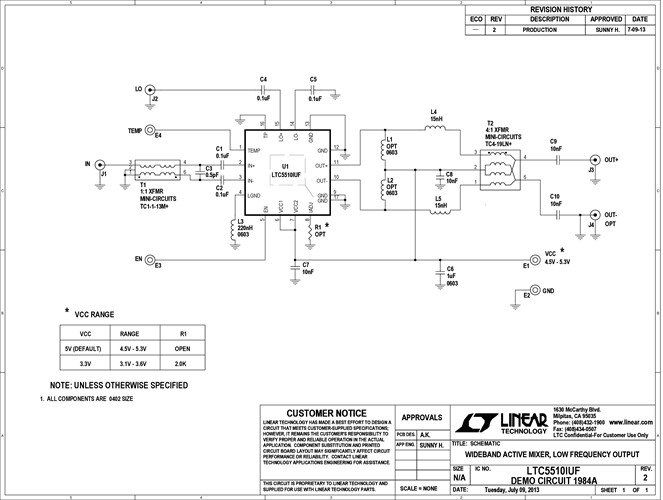

DC1984A - Schematic2014/06/04PDF46K
-
