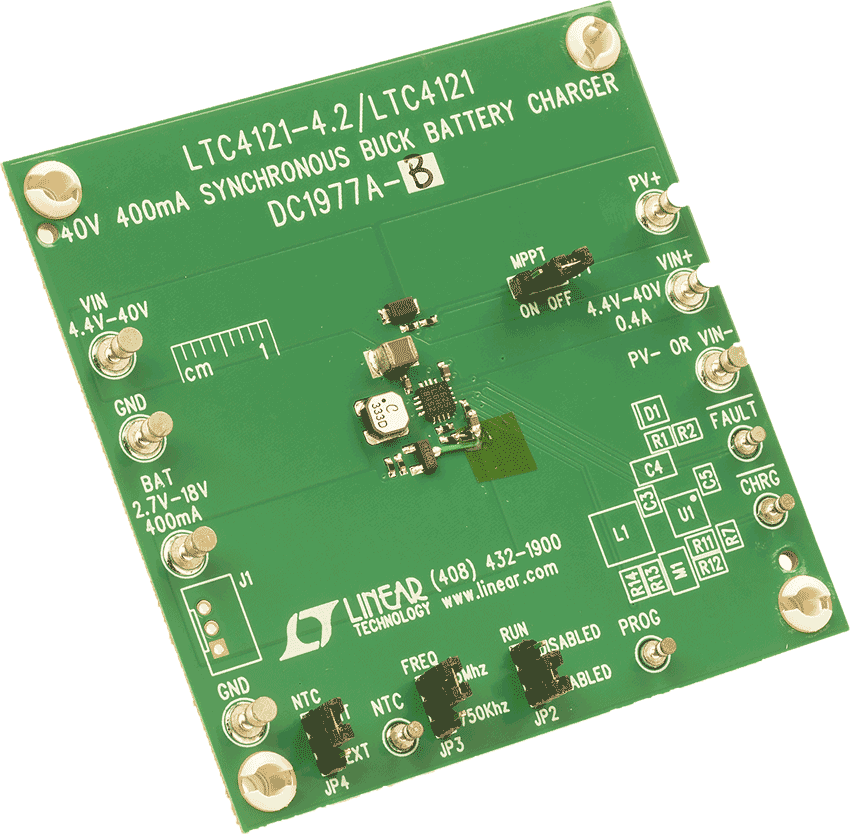

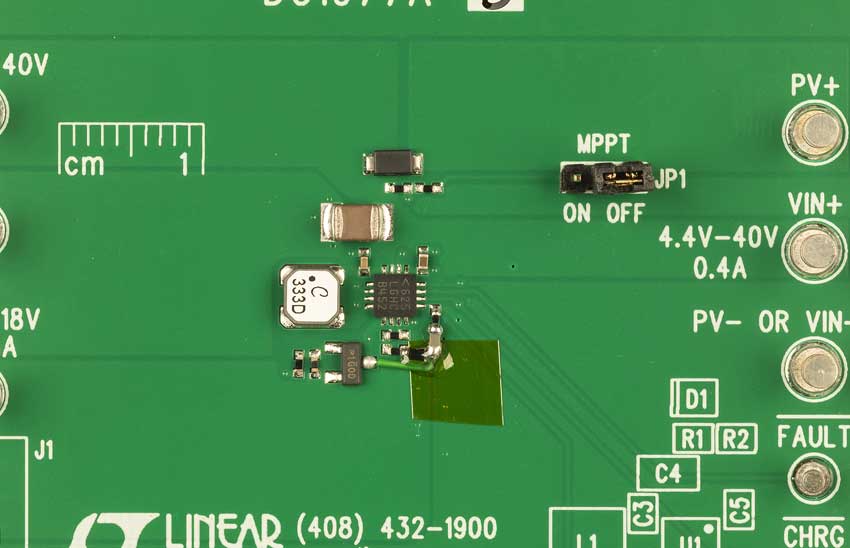

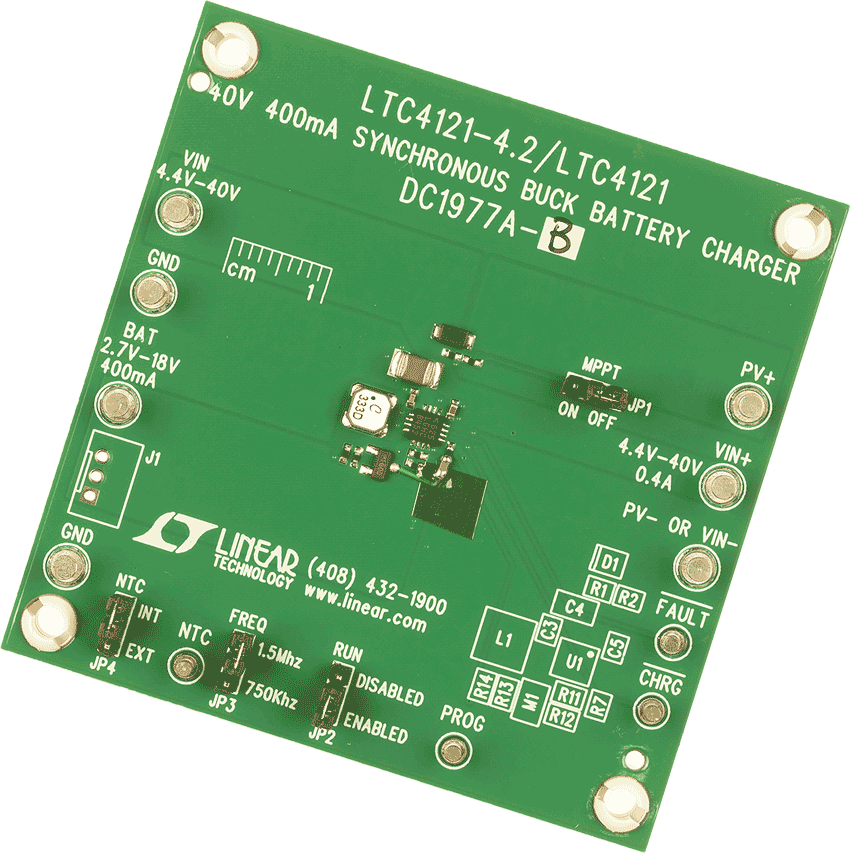

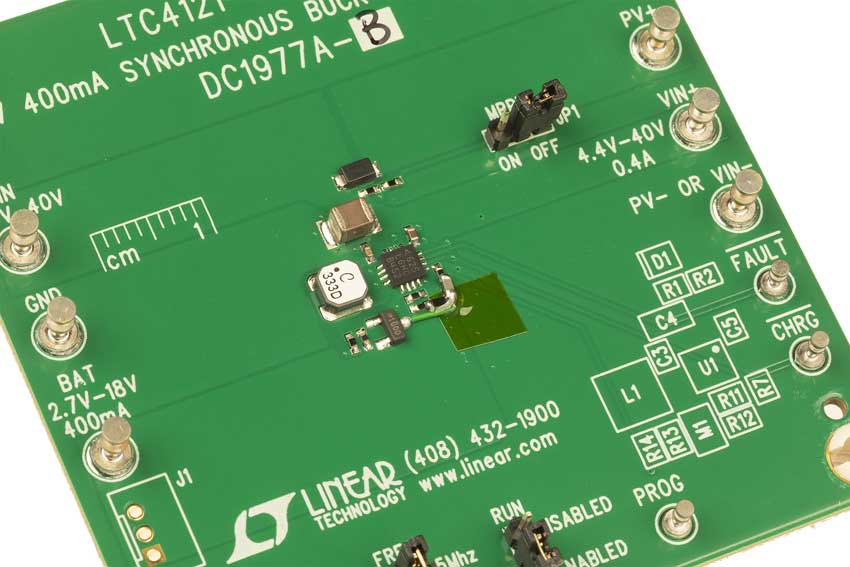

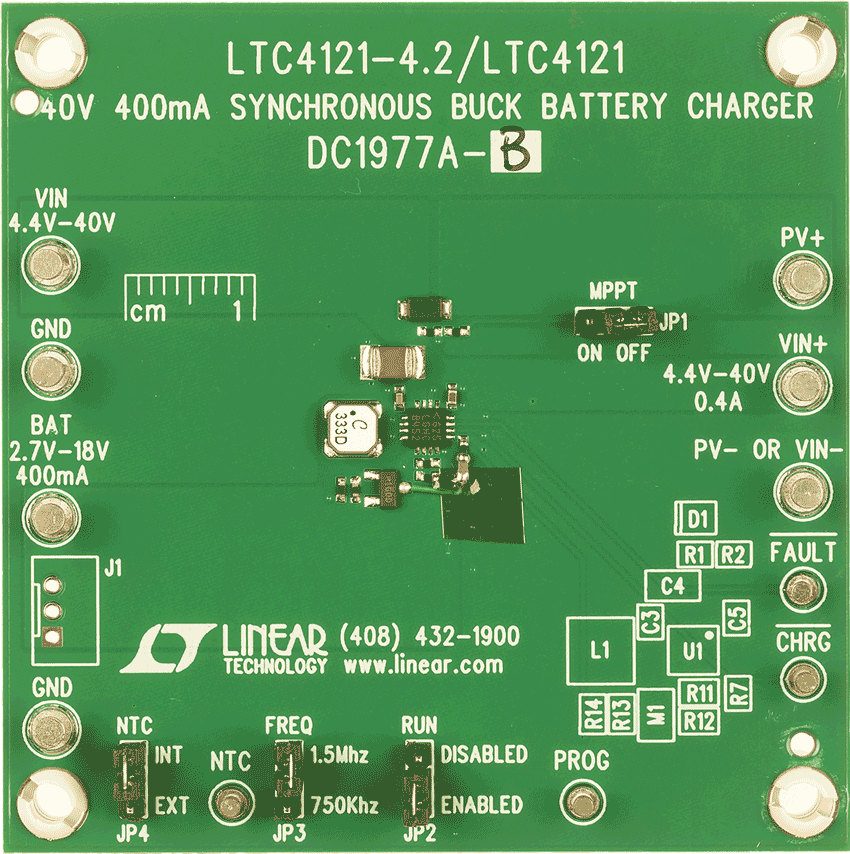

DC1977A-B
LTC4121EUD Demo Board | 400mA Synchronous Buck Battery Charger, VIN = 4.4V to 40V, VBAT = Adjustable
トップへ
製品概要
製品概要
Demonstration circuit 1977A is the demonstration board for LTC4121EUD-4.2/LTC4121EUD, a 400mA Synchronous Buck Battery Charger. The DC1977A supports the Maximum Power Point Tracking (MPPT) feature on the LTC4121EUD, for use with Photovoltaic (PV) cells or highly resistive sources.
対象となる製品
関連資料
-
DC1977A - Schematic2017/06/30PDF33K
-
DC1977A - Demo Manual2017/08/09PDF1M
-
DC1977A - Design Files2017/06/27ZIP924K
