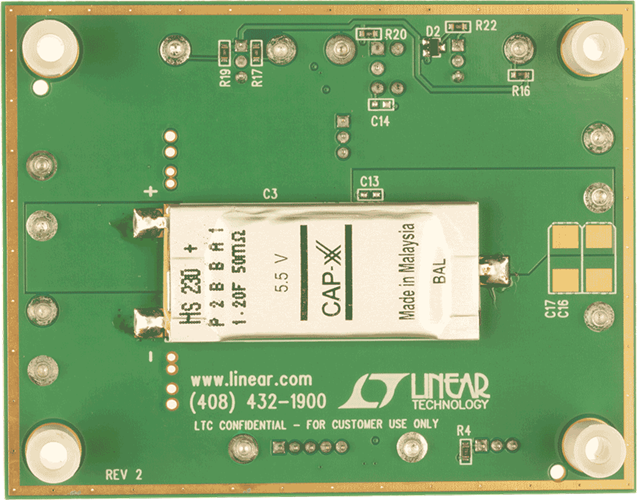

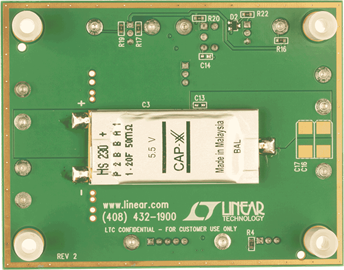

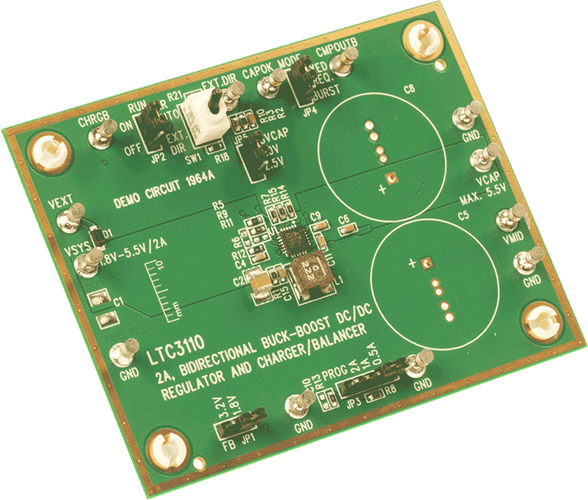

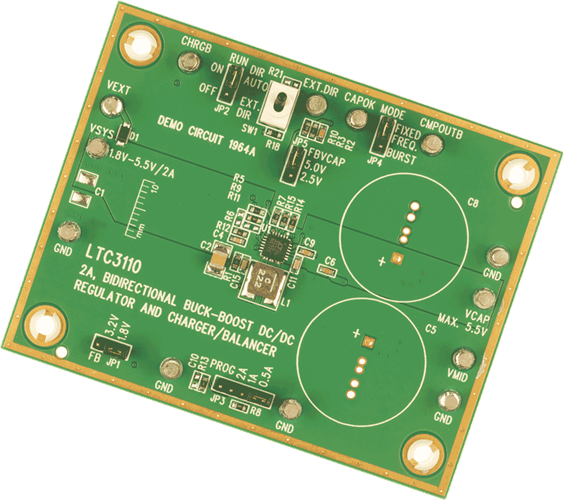

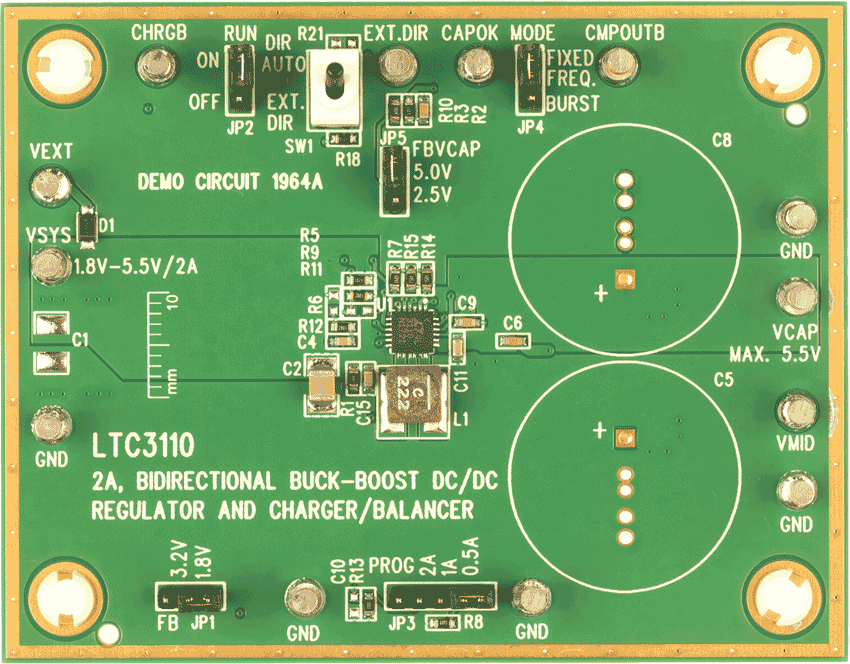

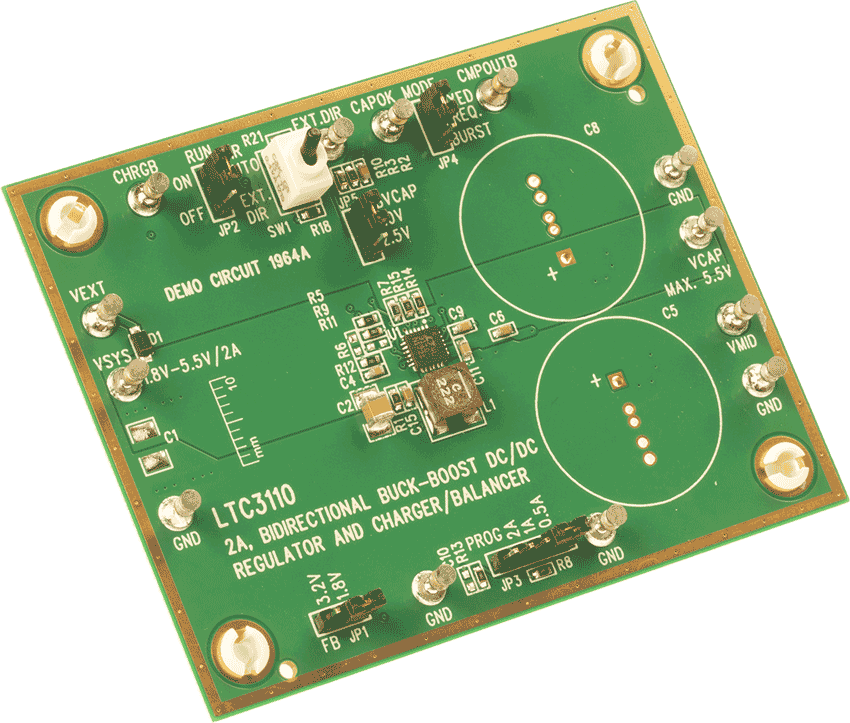

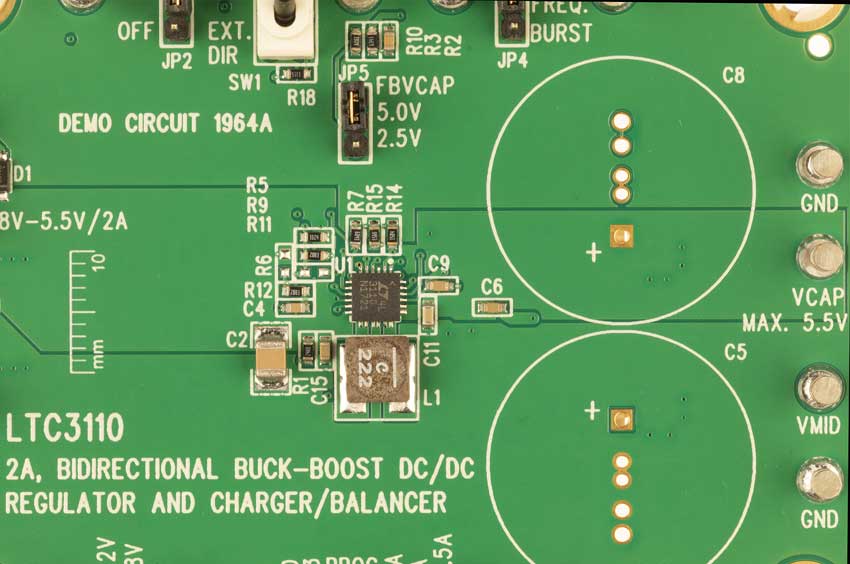

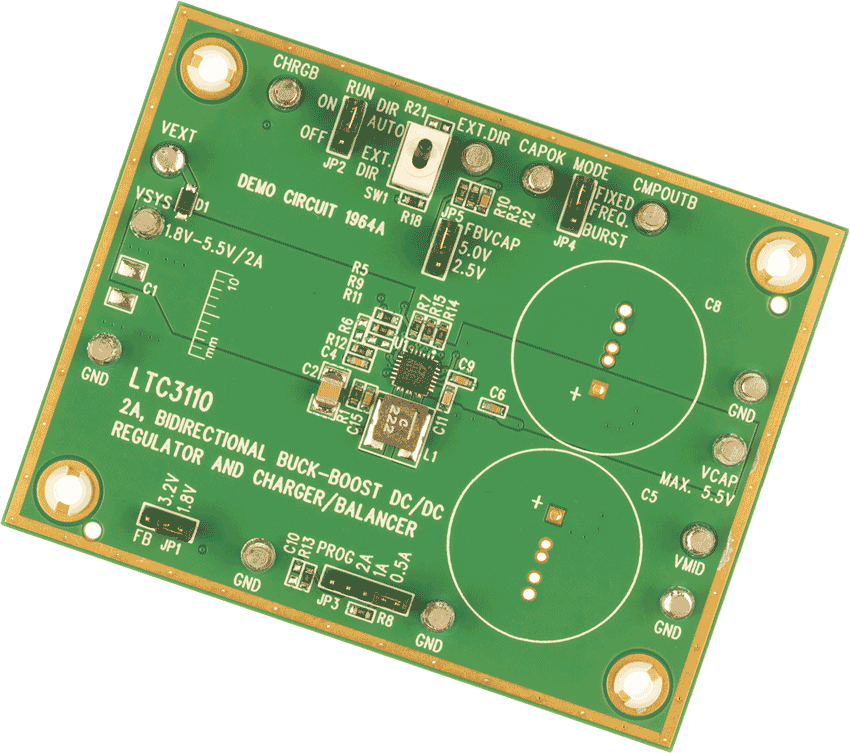

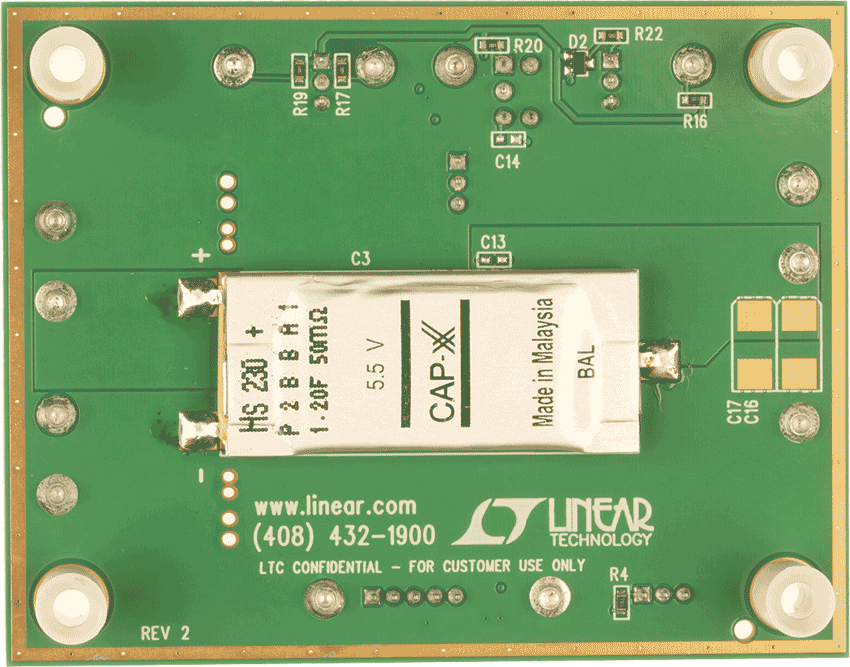

DC1964A
LTC3110 Demo Board | Bidirectional Buck-Boost with Supercap Charger/Balancer, 1.8V ≤ VIN ≤ 5.5V, 1.8V or 3.2V VBACKUP at 2A
トップへ
製品概要
製品概要
Demonstration circuit 1964A is a 2A, bidirectional buckboost DC/DC regulator and charger/balancer, featuring the LTC3110 boost controller. Its wide voltage range both in capacitor/battery charger mode and in system backup mode makes it well suited to a wide variety of applications using supercapacitors and batteries.
対象となる製品
関連資料
-

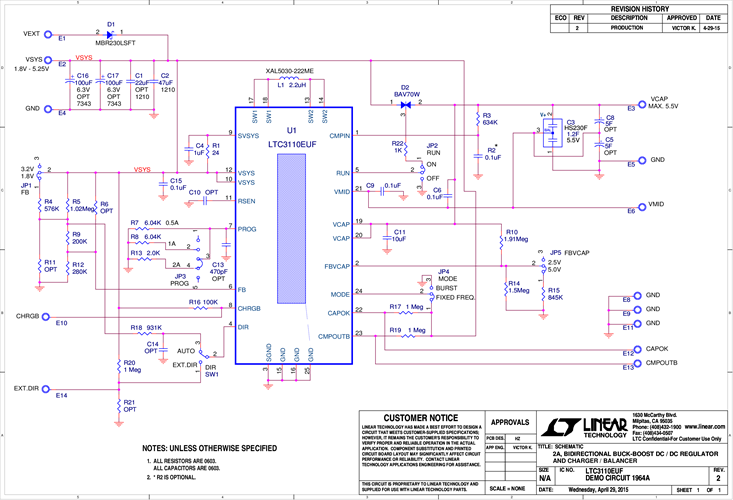

DC1964A - Schematic2015/06/02PDF37K
-
DC1964A - Demo Manual2015/06/19PDF299K
-
DC1964A - Design Files2015/06/19ZIP960K
