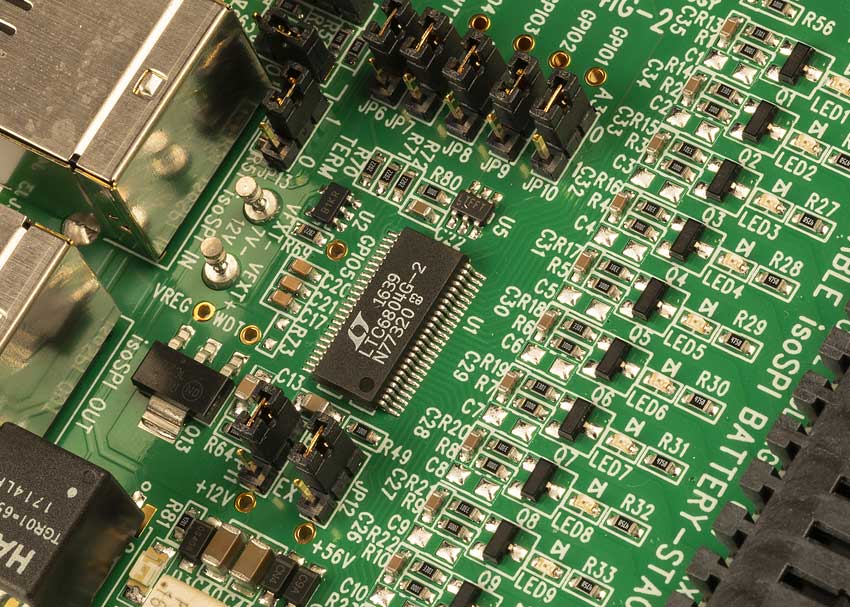

DC1942C

製品概要

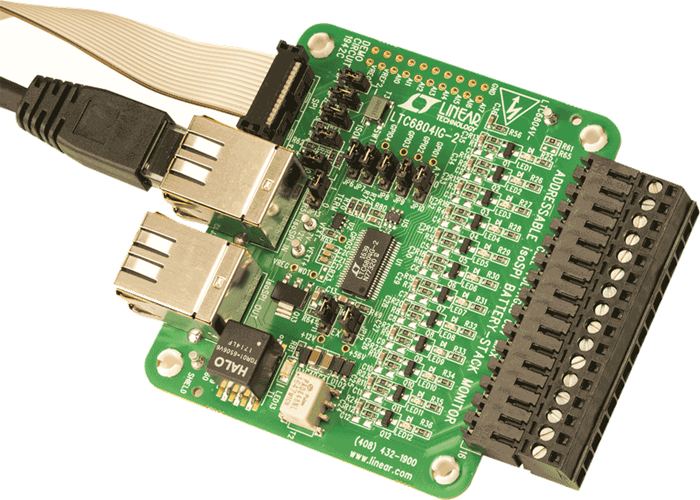

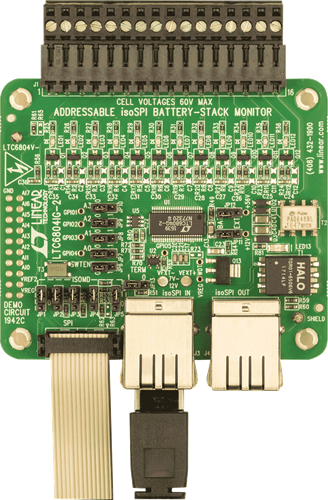

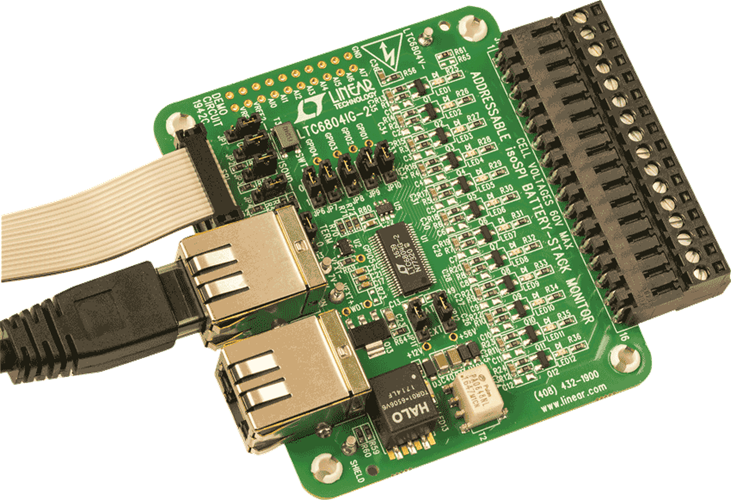

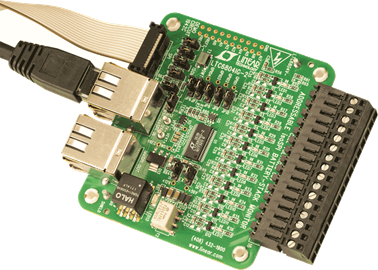

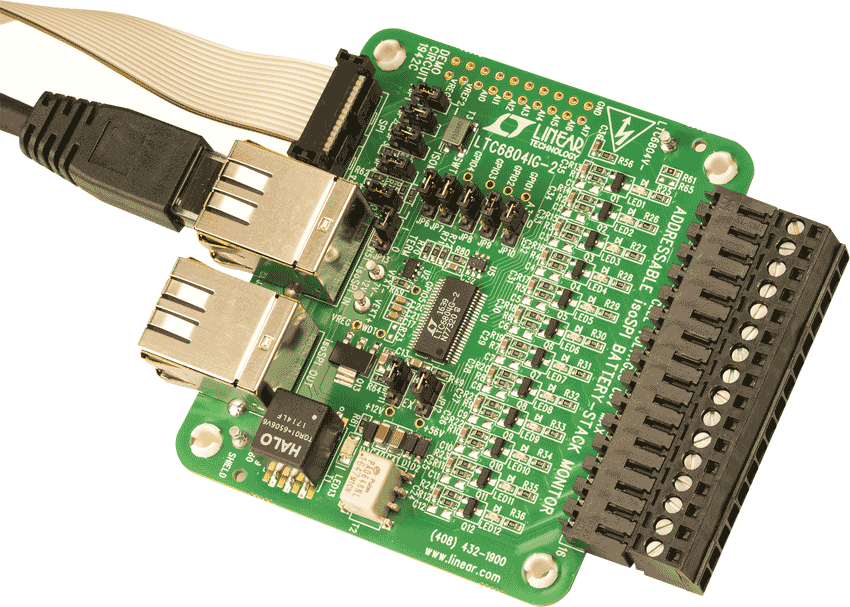

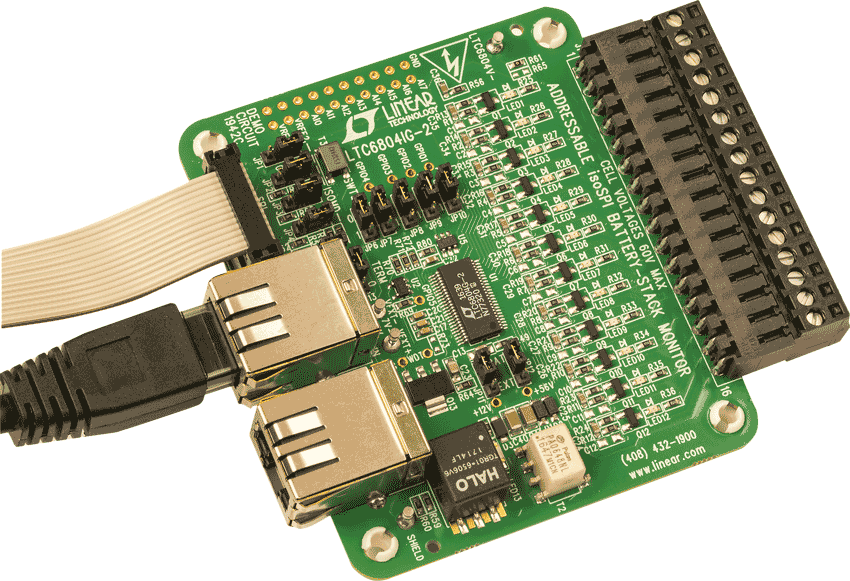

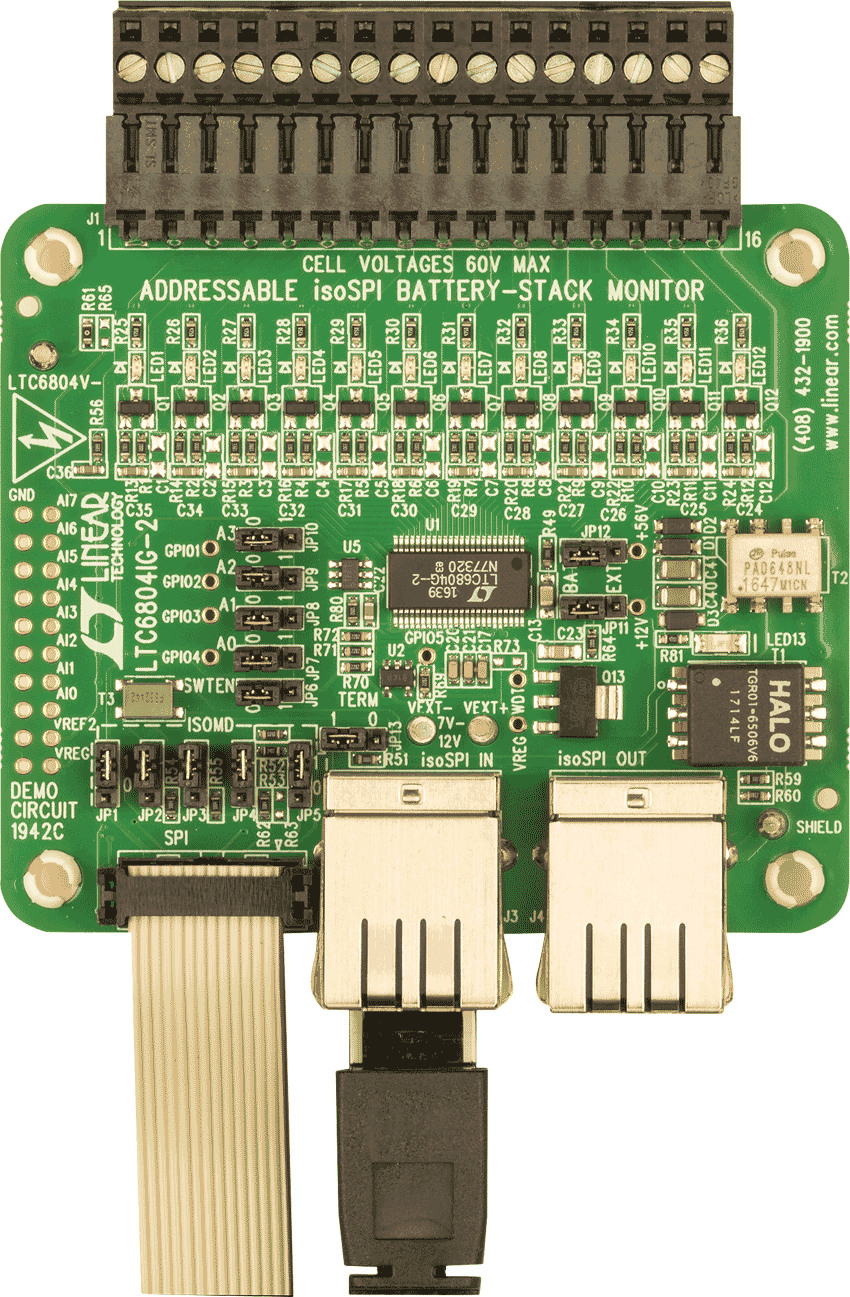

Demonstration circuit 1942C is an addressable isoSPI battery-stack monitor featuring the LTC6804-2. These boards can be linked through a 2-wire isolated serial interface to monitor any number of cells on a stack. Communication to a PC uses a DC590 USB interface board. A control program for up to ten stacked boards has a Graphical User Interface (GUI) to implement the device command set.
