DC1846A-A
LTC6947 Demo Board | Ultralow Noise and Spurious 350MHz to 6GHz Frac-N Synthesizer, VCO=2328-2536MHz , (Requires DC590)
トップへ
製品概要
製品概要

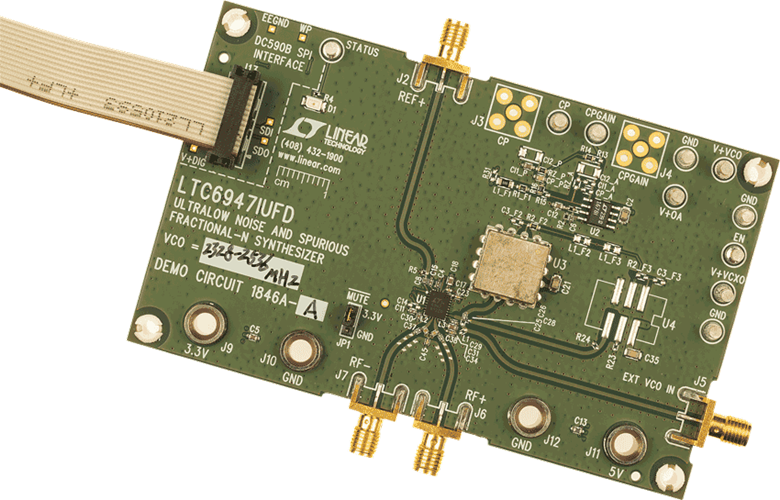

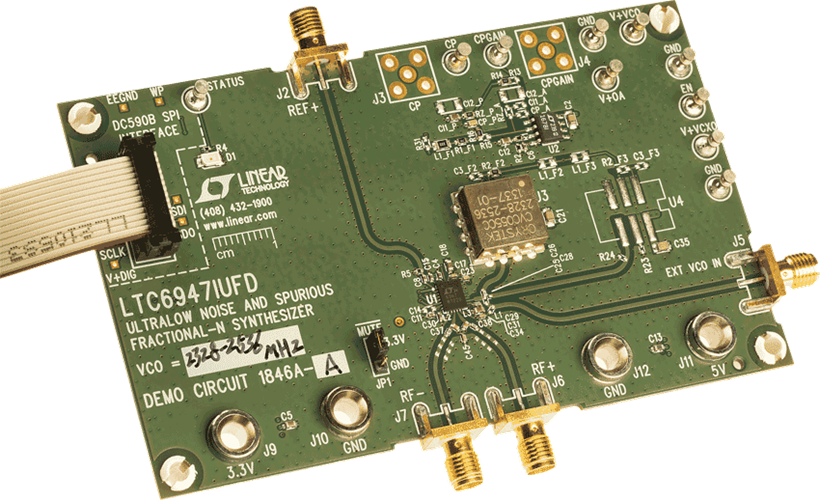

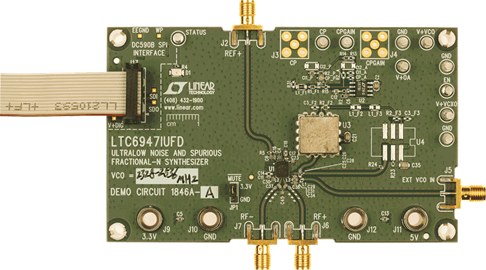

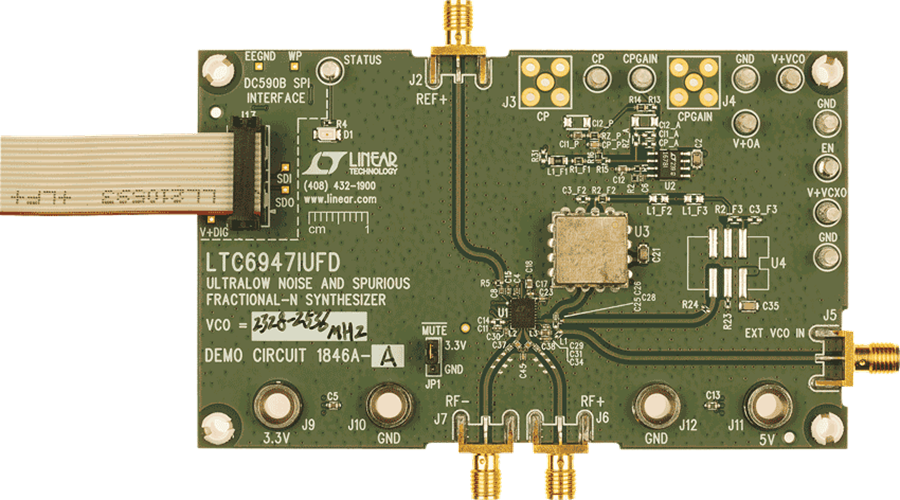

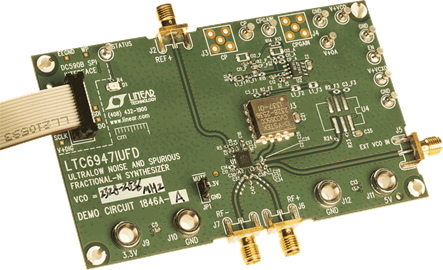

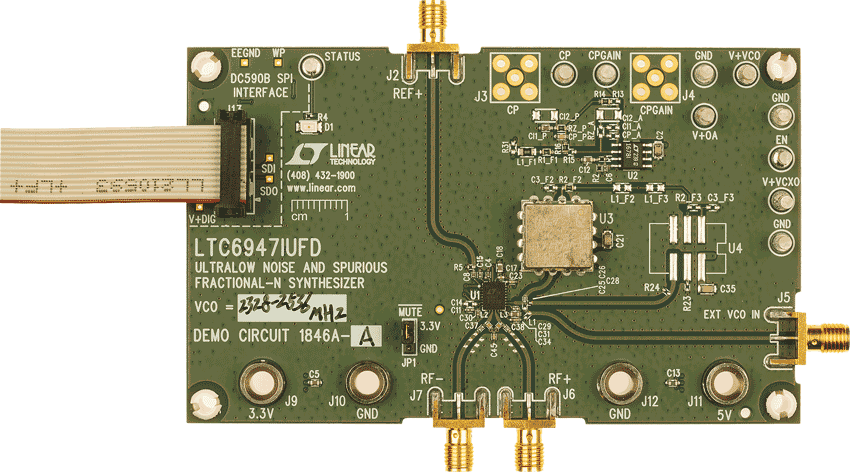

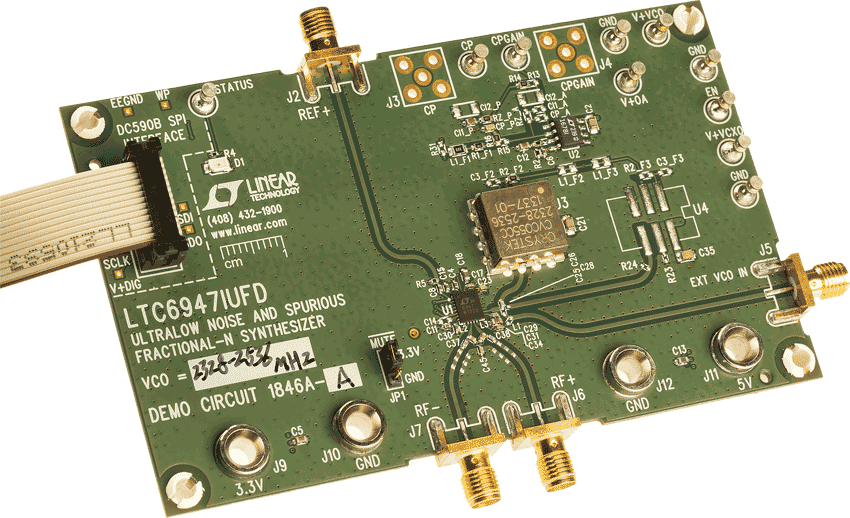

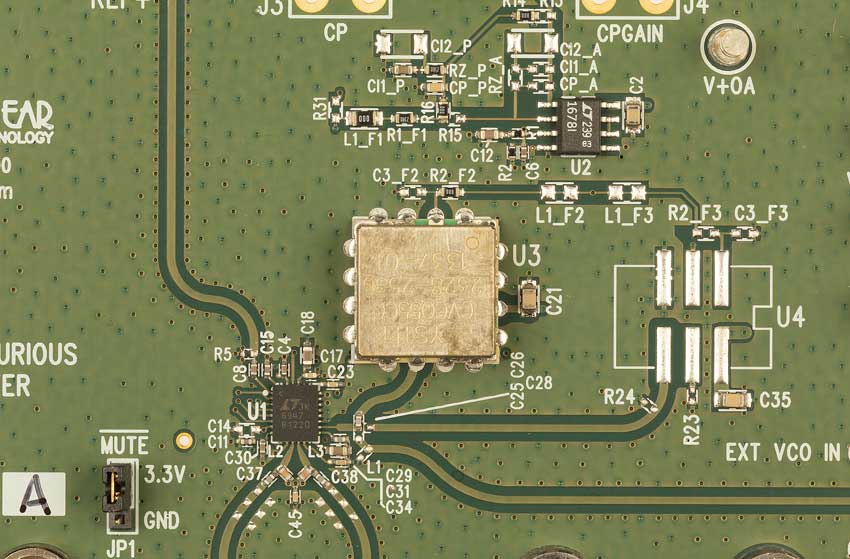

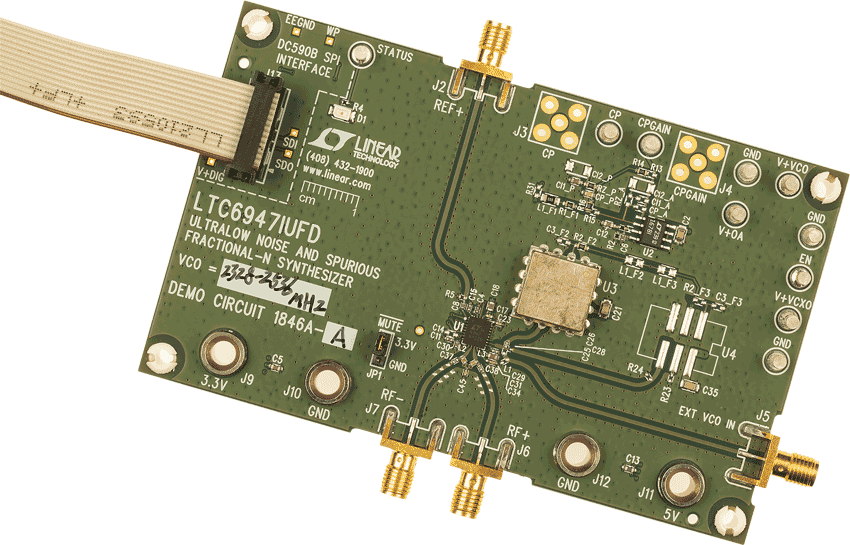

Demonstration circuit 1846A features the LTC6947, an Ultralow Noise and Spurious Fractional-N Synthesizer. DC1846A provides 50Ω SMA connectors for the reference frequency (REF+) and the two single-ended RF outputs (RF+ and RF–).
関連資料
-

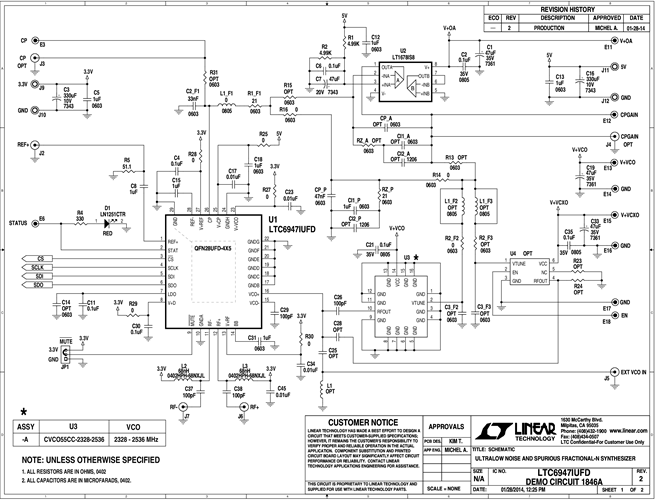

DC1846A - Schematic2014/08/28PDF65K
-
DC1846A - Demo Manual2014/08/28PDF941K
-
DC1846A - Design Files2014/08/28ZIP2M
