DC1802A
LTC3245EMSE Demo Board | Buck-Boost Charge Pump, 2.7V ≤ VIN ≤ 38V, VOUT = 1.2V/3.3V/5V @ 250mA
トップへ
製品概要
製品概要

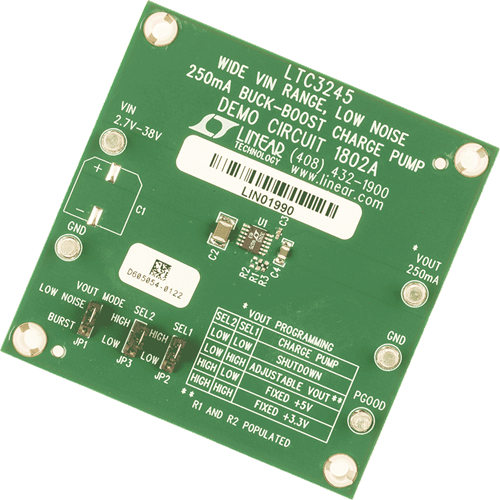

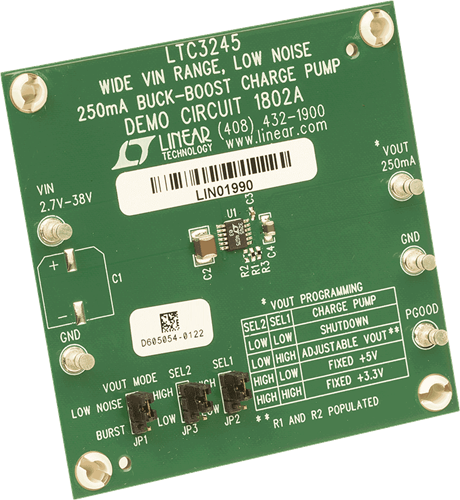

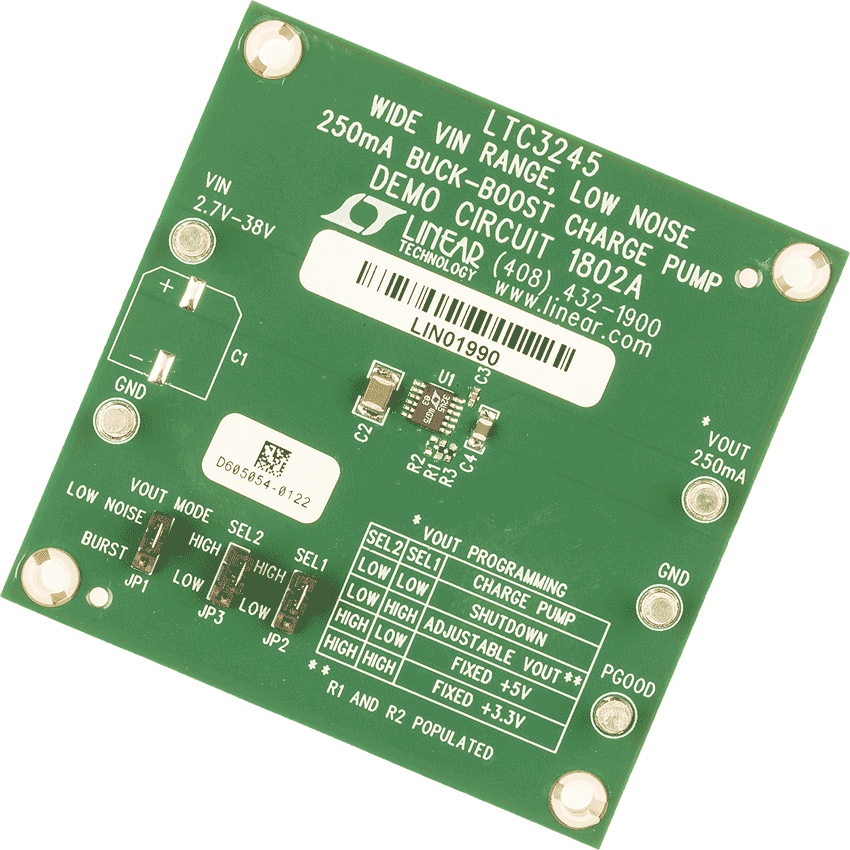

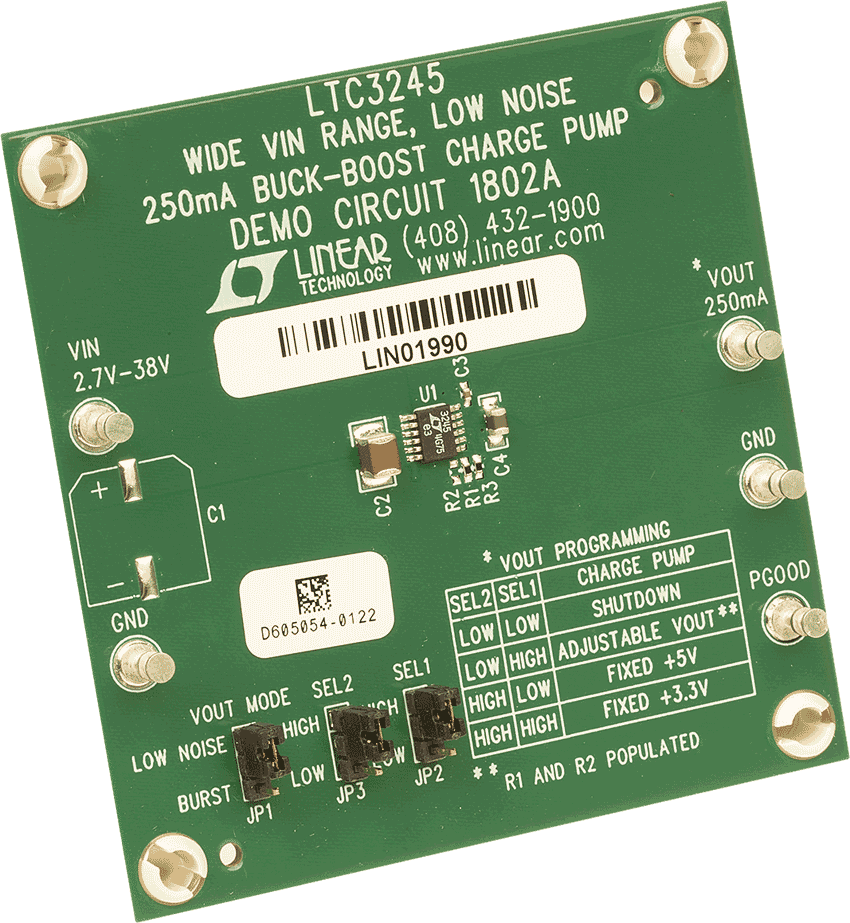

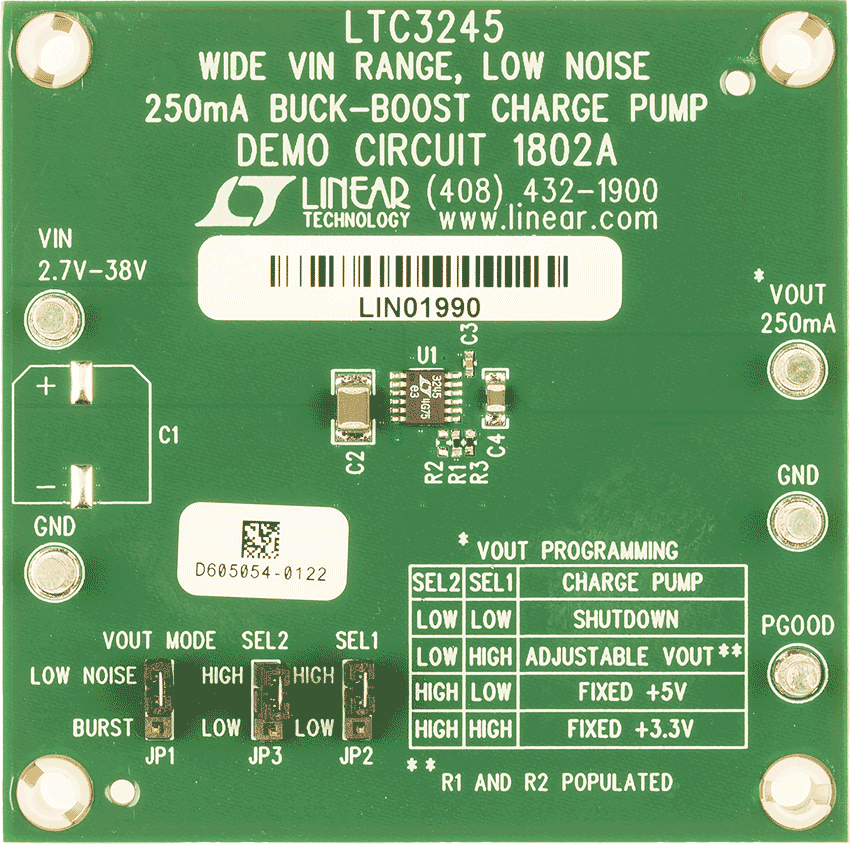

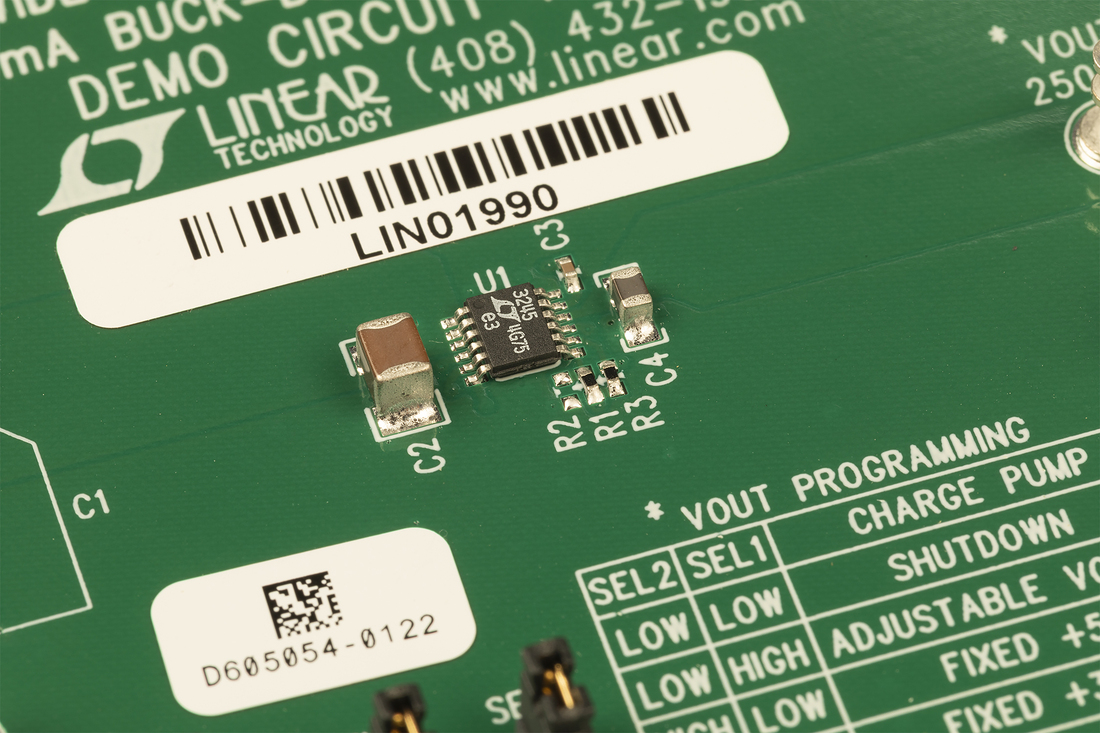

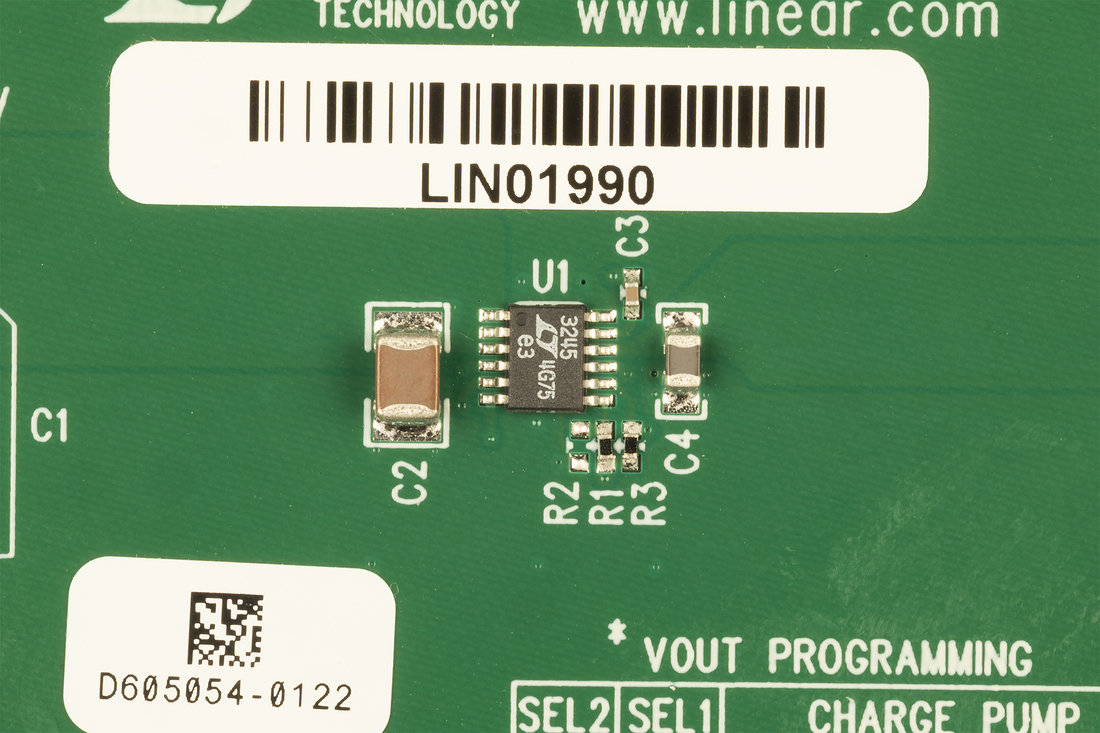

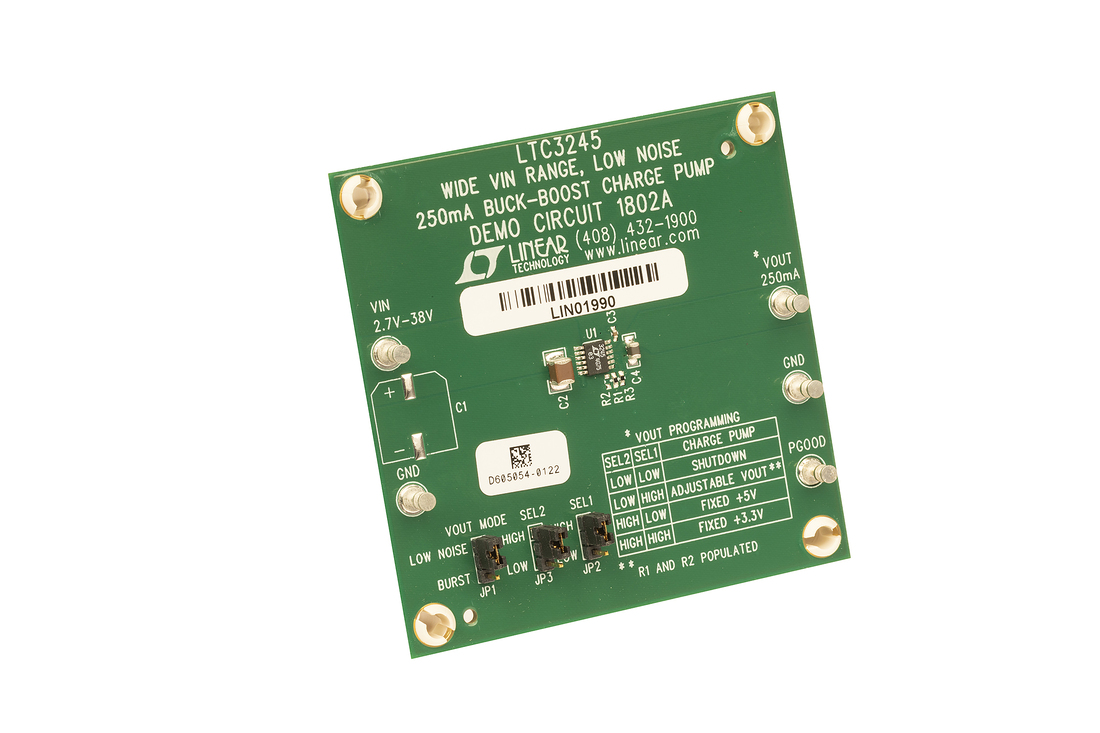

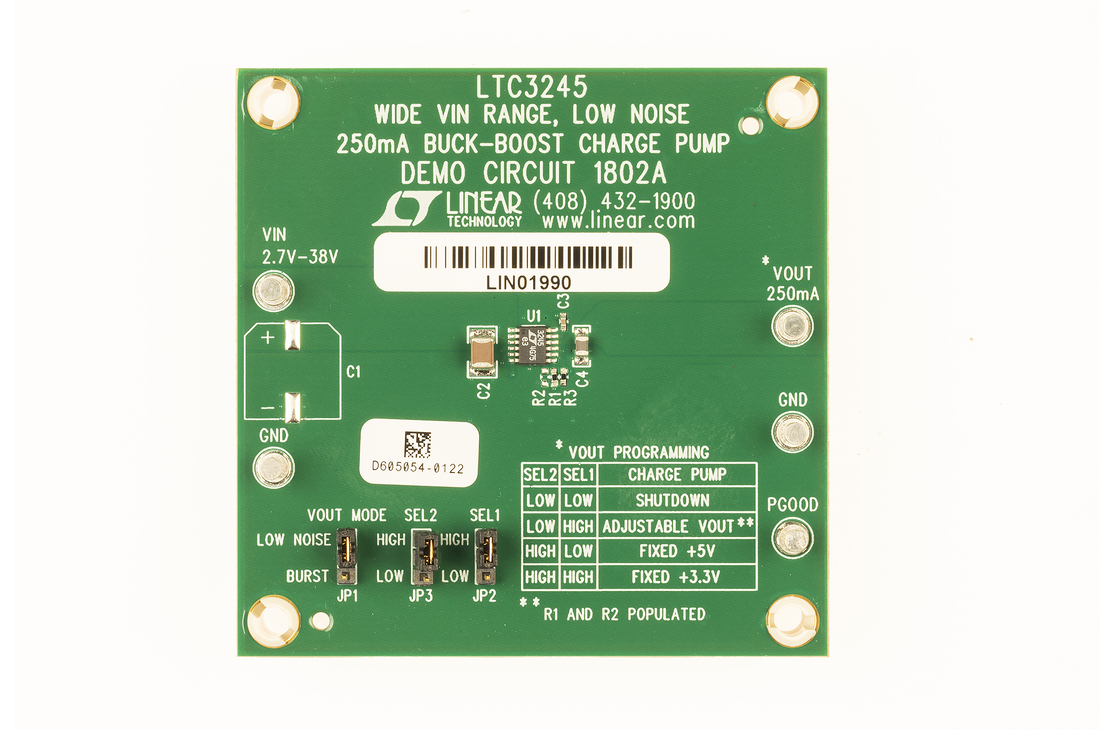

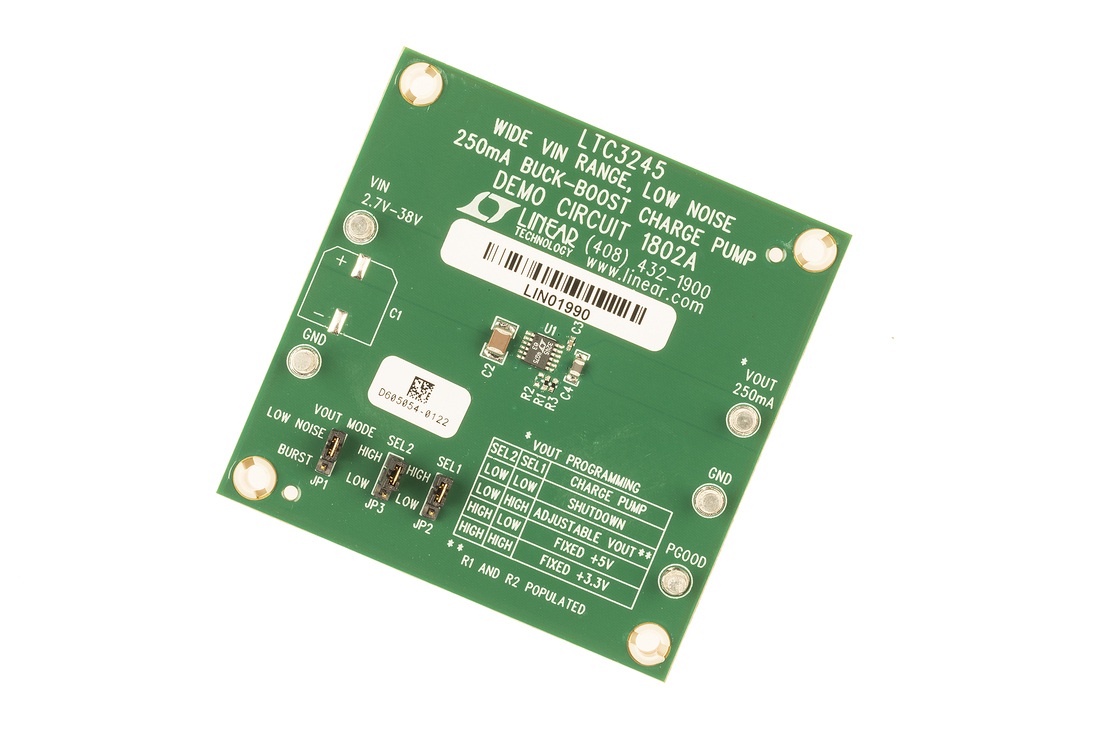

Demonstration circuit DC1802A is a wide VIN range, low noise, 250mA buck-boost charge pump featuring the LTC3245EMSE. It has an input supply range of 2.7V to 38V and provides a jumper-selectable 5V, 3.3V, or adjustable output (set to 1.2V) at 250mA.
関連資料
-

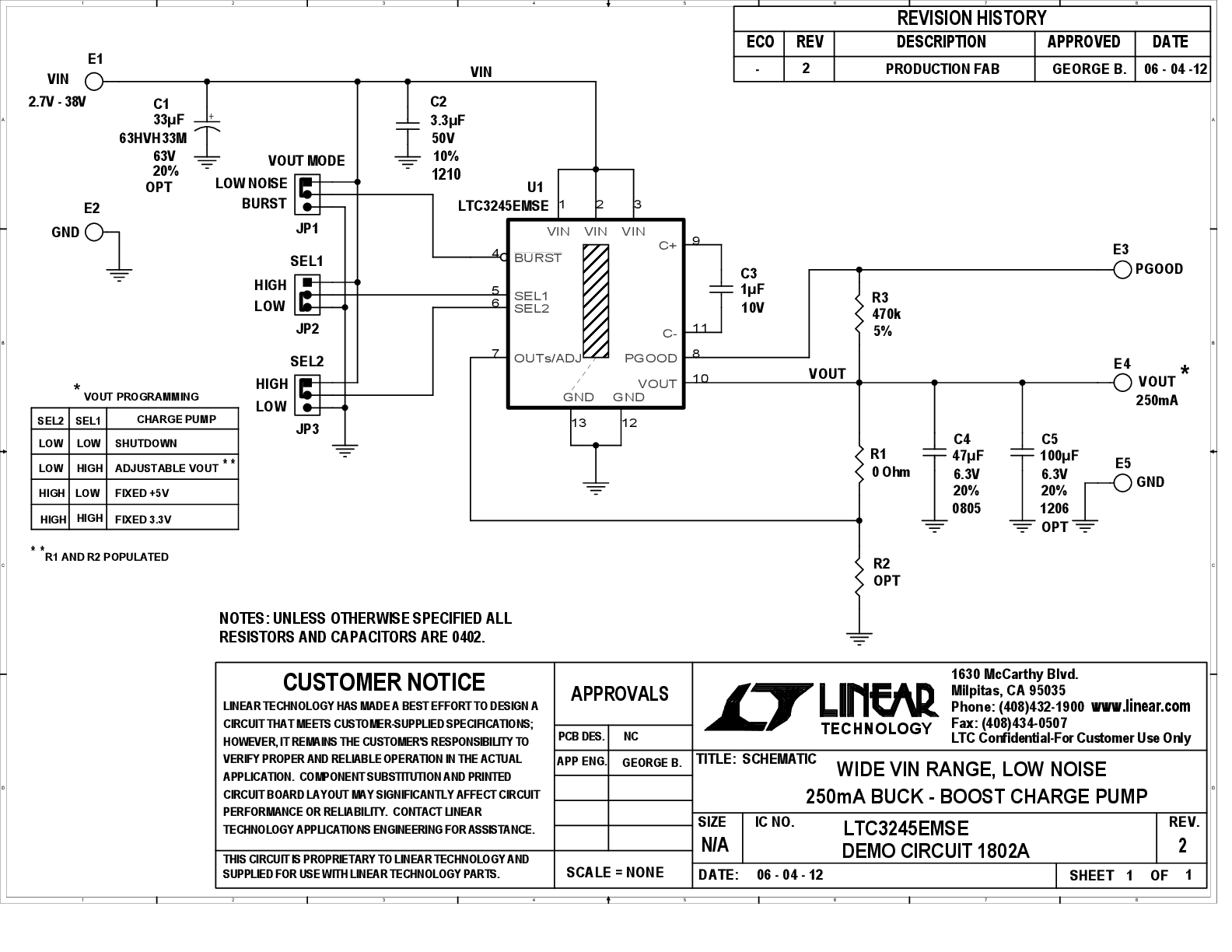

DC1802A - Schematic2013/04/03PDF75K
-
DC1802A - Demo Manual2013/03/21PDF1M
-
DC1802A - Design Files2013/10/18ZIP680K
