DC1736A
LT3975 Demo Board I 4.3V ≤ VIN ≤ 42V; VOUT = 3.3V @ 2.5A
トップへ
製品概要
製品概要
Demonstration circuit 1736A is a monolithic step-down DC/DC switching regulator featuring the LT3975. The demo circuit is designed for 3.3V, 2.5A output from a 4.3V to 42V input.
関連資料
-

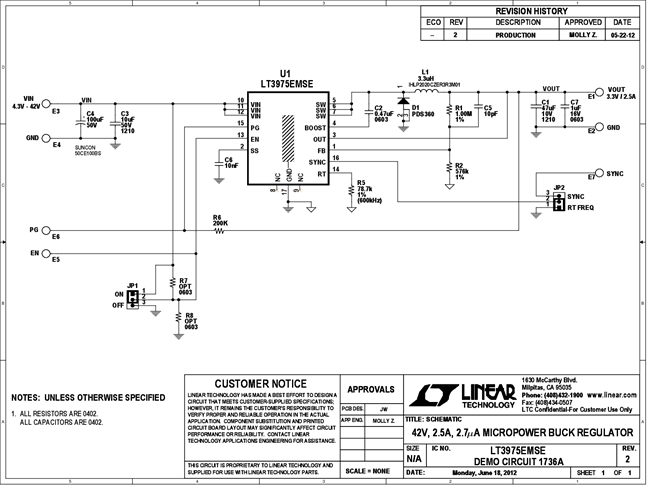

DC1736A - Schematic2012/07/26PDF40K
-
DC1736A - Demo Manual2012/07/26PDF513K
-
DC1736A - Design Files2012/07/26ZIP577K
