DC1731A-B
LTC3646-1 Demo Board (DFN) | 4V ≤ VIN ≤ 40V, VOUT = 3.3V or 5V @ 1A
トップへ
製品概要
製品概要
Demonstration circuit 1731A-B is a DC/DC converter demo board using the LTC3646-1 monolithic synchronous buck regulator in the DFN package. The input voltage range is from 4V to 40V. The output voltage range of LTC3646-1 is 0.6V to 15V. It can deliver up to 1A of output current. At light load conditions, DC1731A can operate in Burst Mode® operation to improve the efficiency. The user can choose to use internal or external compensation. The switching frequency of LTC3646-1 is programmable from 200kHz to 3MHz. It can be synchronized to an external clock through the MODE/SYNC pin.
関連資料
-

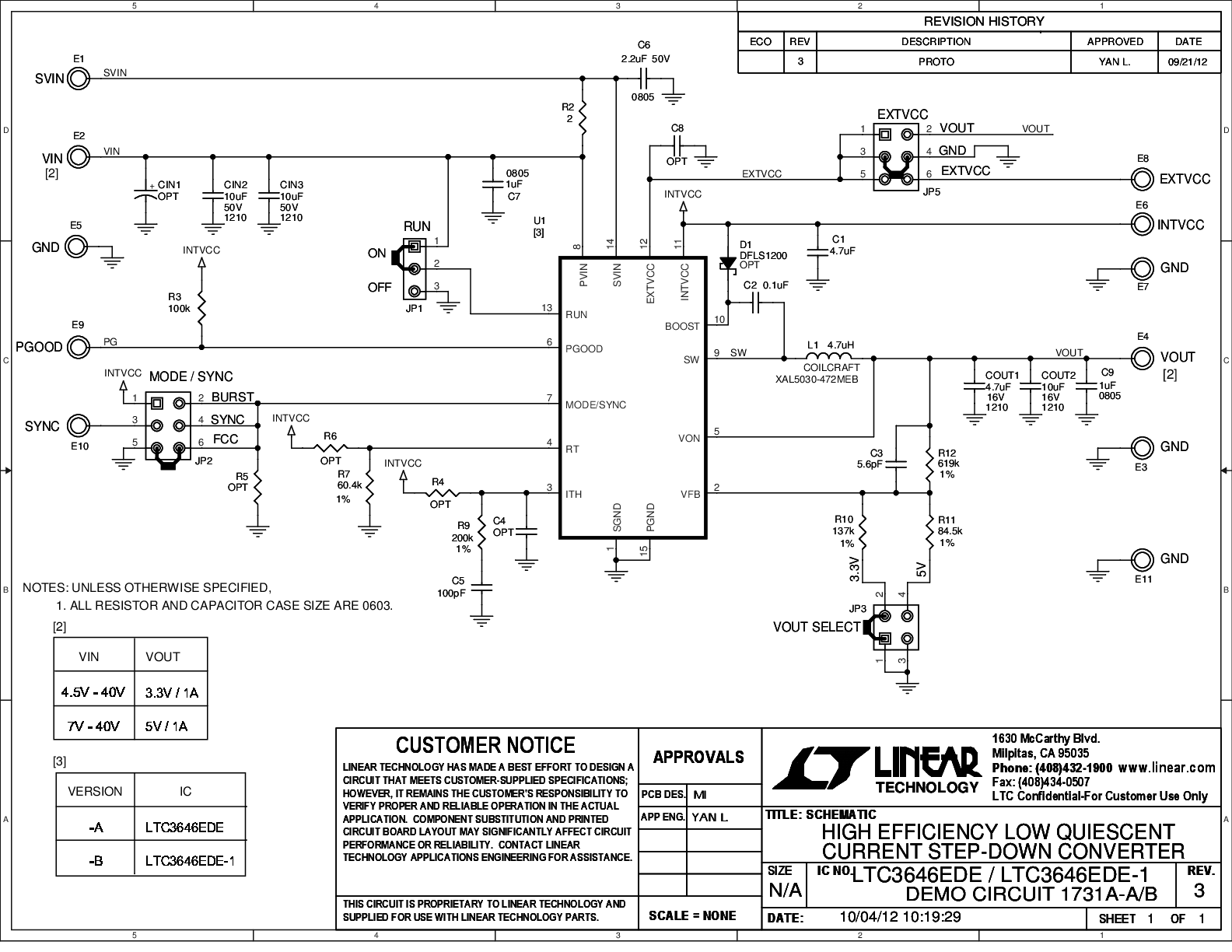

DC1731A - Schematic2013/01/29PDF57K
-
DC1731A - Demo Manual2013/01/29PDF304K
-
DC1731A - Design Files2013/01/29ZIP3M
