DC1661A
LT3579EFE/LT3579EFE-1 Demo Board | 2 Paralleled LT3579's, 5V ≤ VIN ≤ 10V, VOUT = 12V @ 3.5A
トップへ
製品概要
製品概要
Demonstration circuit 1661A features the LT3579 and LT3579-1 in a parallel boost regulator configuration. The circuit is designed to convert a 5V to 10V input source to 12V at 3.5A. DC1661A is designed to survive output short circuit events with an external disconnect MOSFET at the output as default.
対象となる製品
関連資料
-

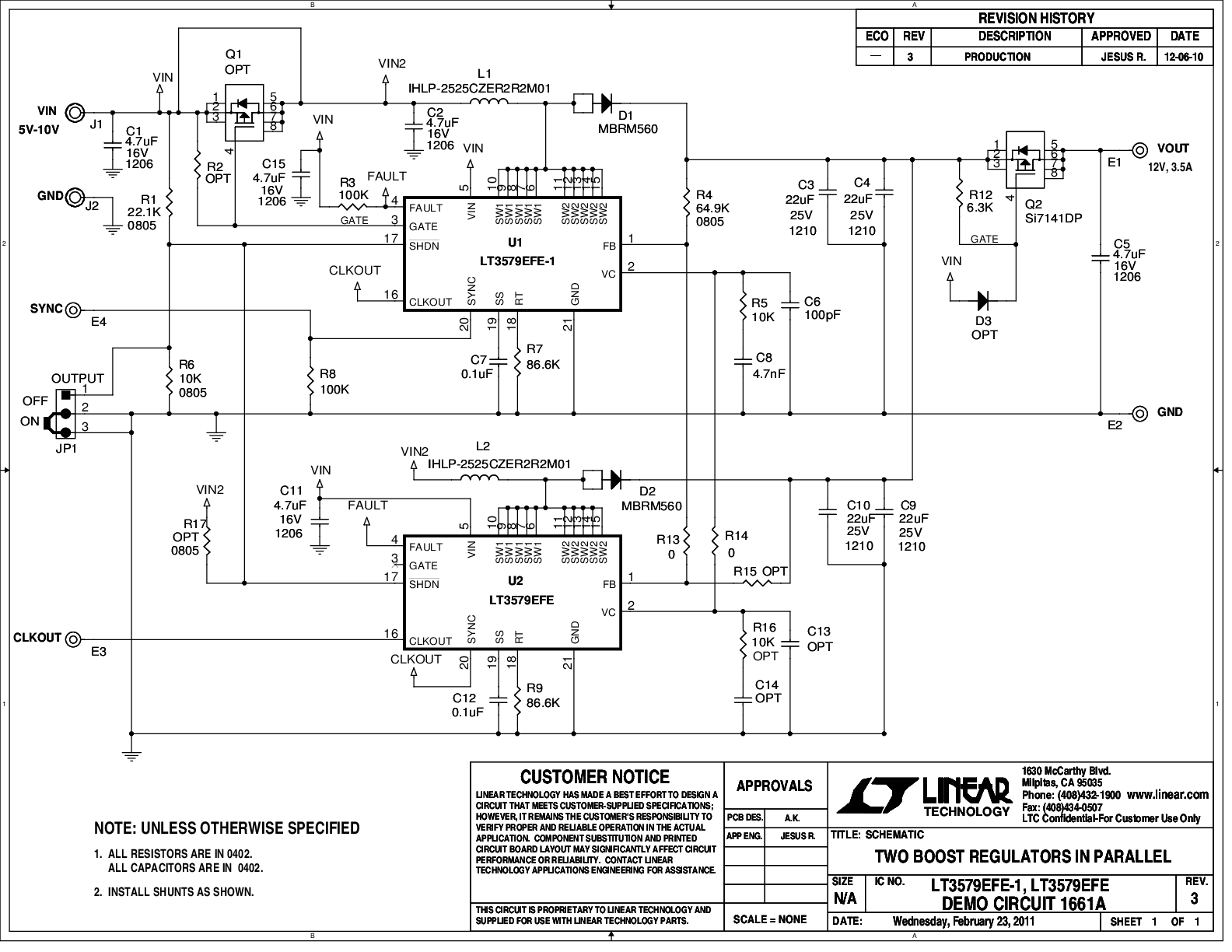

DC1661A - Schematic2012/03/06PDF52K
-
DC1661A - Demo Manual2011/03/23PDF464K
-
DC1661A - Design Files2011/07/27ZIP988K
