DC1576A
LTC3805IMSE-5 Demo Board | SEPIC, 5V ≤ VIN ≤ 30V, VOUT = 12V @ 3A
トップへ
製品概要
製品概要
Demonstration circuit 1576 is high efficiency non-isolated SEPIC (Single Ended Primary Inductor Converter) converter featuring the LTC3805-5 switching controller. The DC1576 converts a 5V to 30V input to 12V at 3A of output current. The DC1576 can be easily modified to generate output voltages in the range from 0.8V to 48V.
対象となる製品
関連資料
-

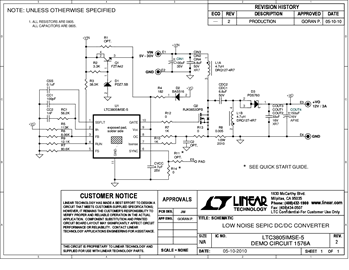

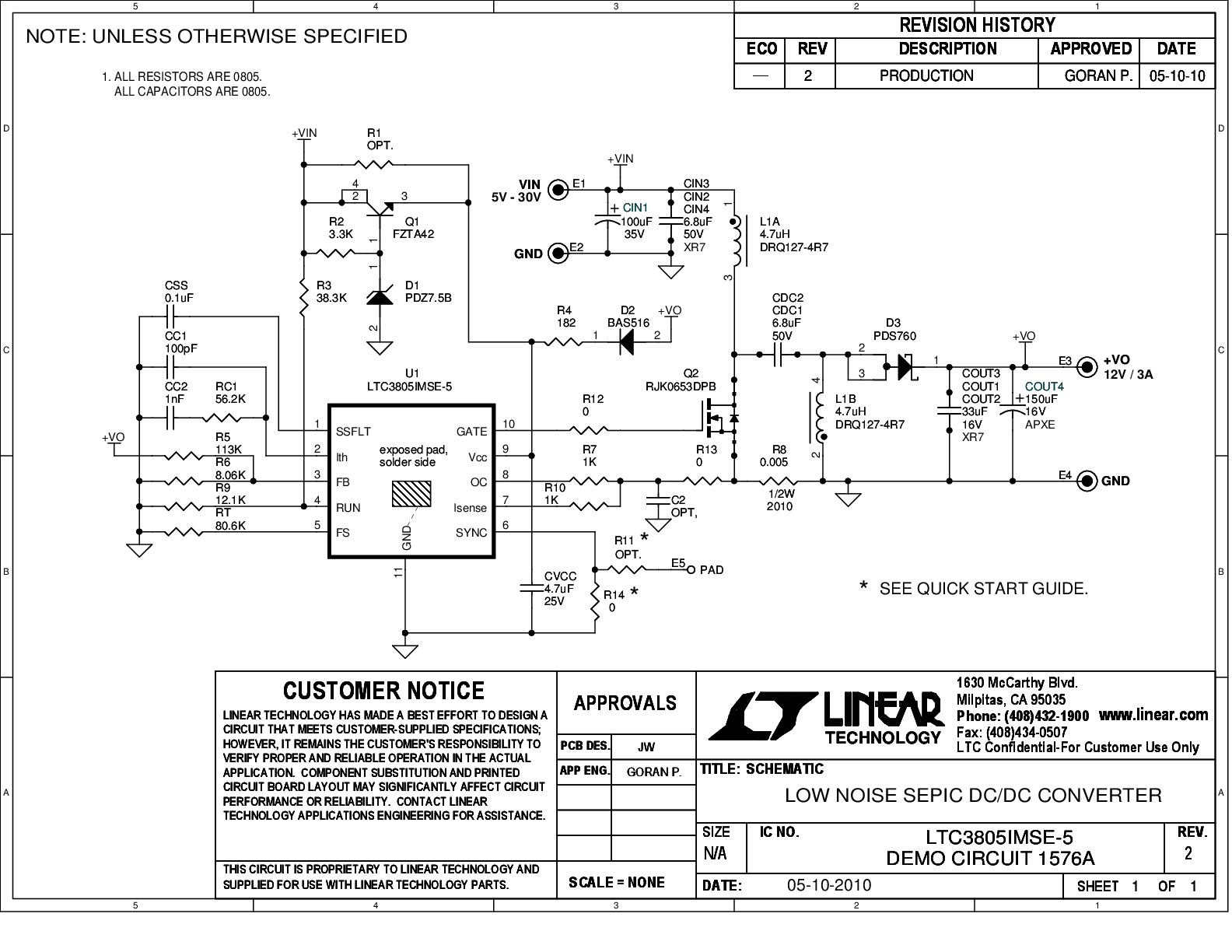

DC1576A - Schematic2012/05/03PDF52K
-
DC1576A - Demo Manual2010/08/26PDF994K
-
DC1576A - Design Files2010/08/26ZIP842K
