DC1562B-B
LTC6991 Demo Board | 1Hz (1s) Fixed Frequency
トップへ
製品概要
製品概要

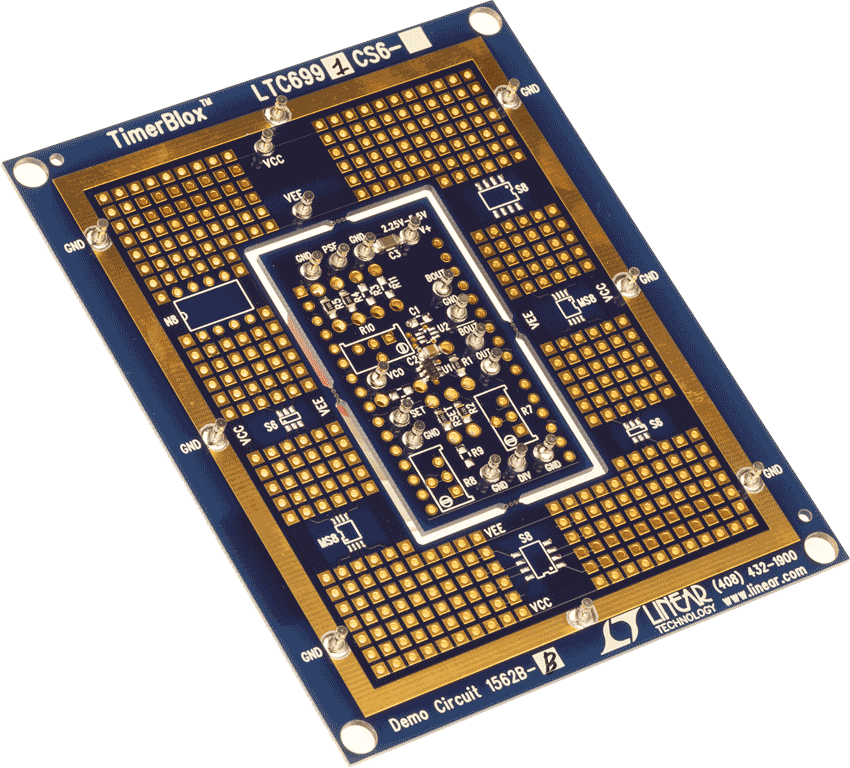

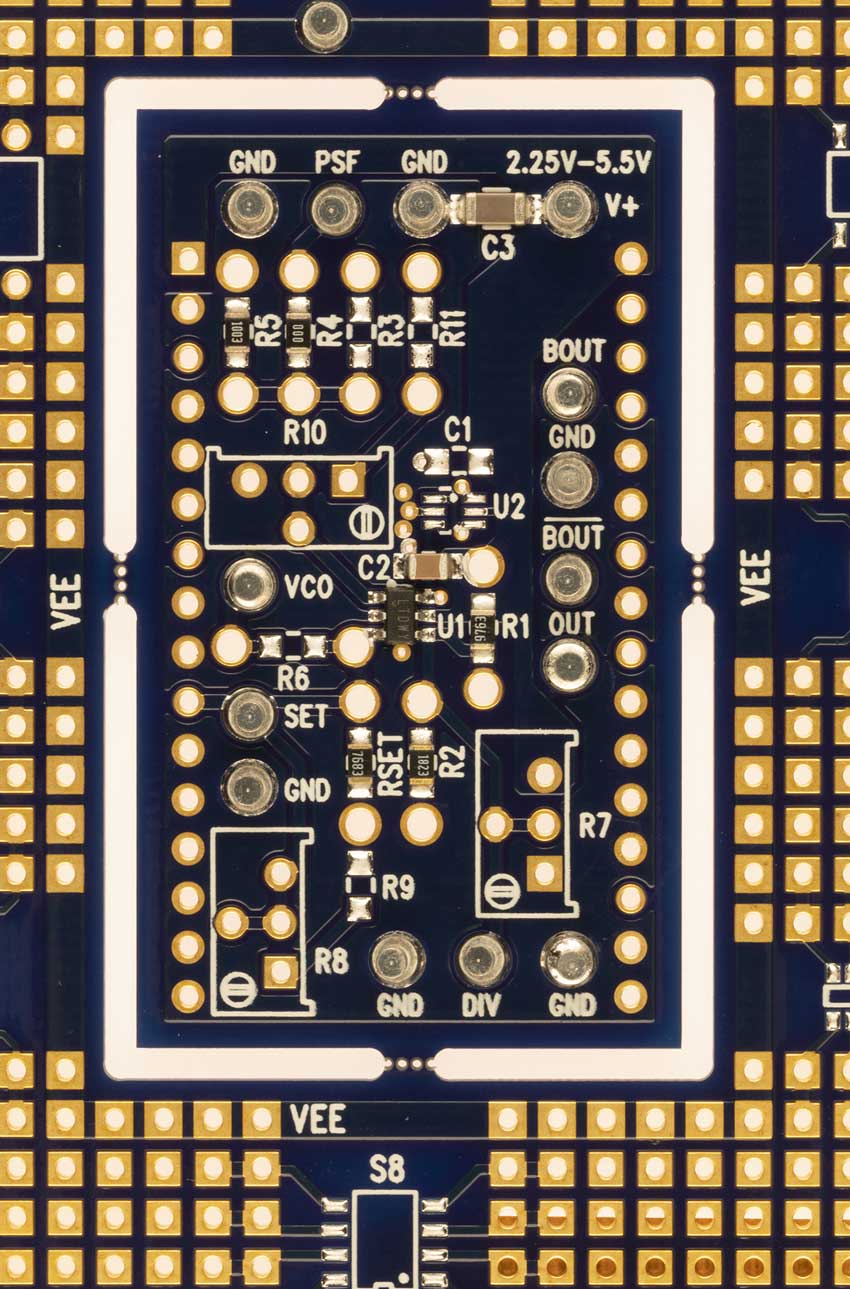

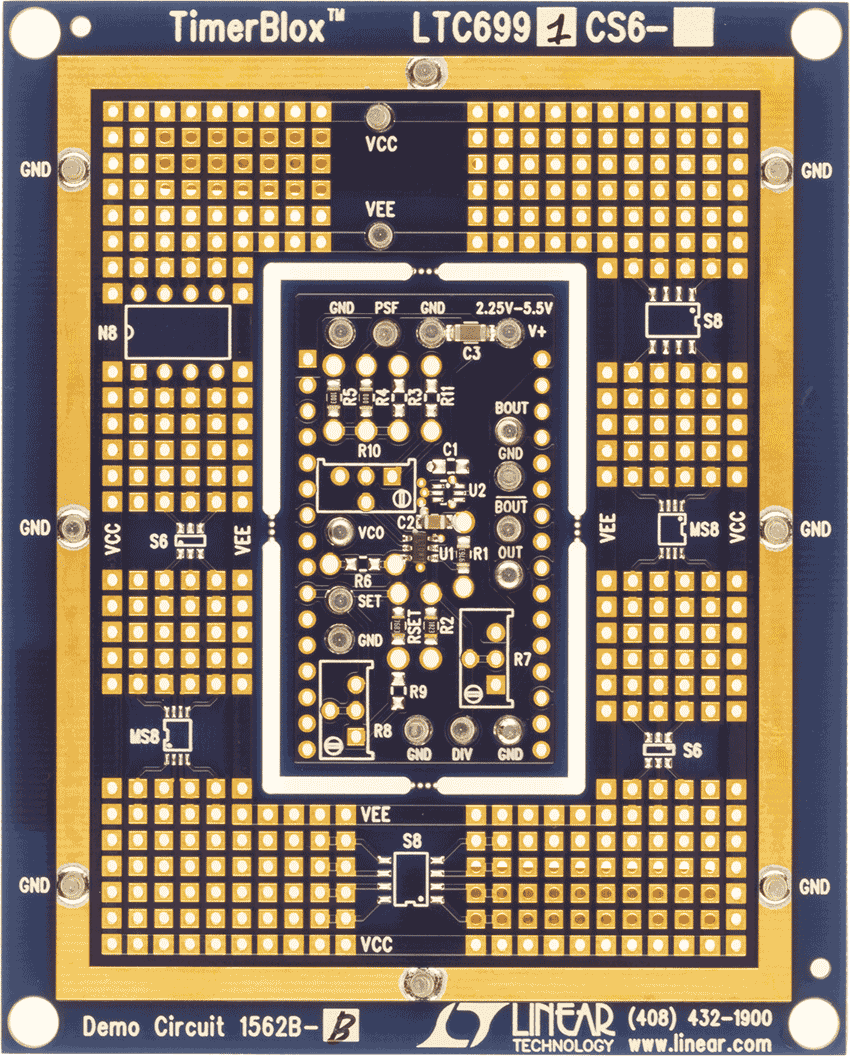

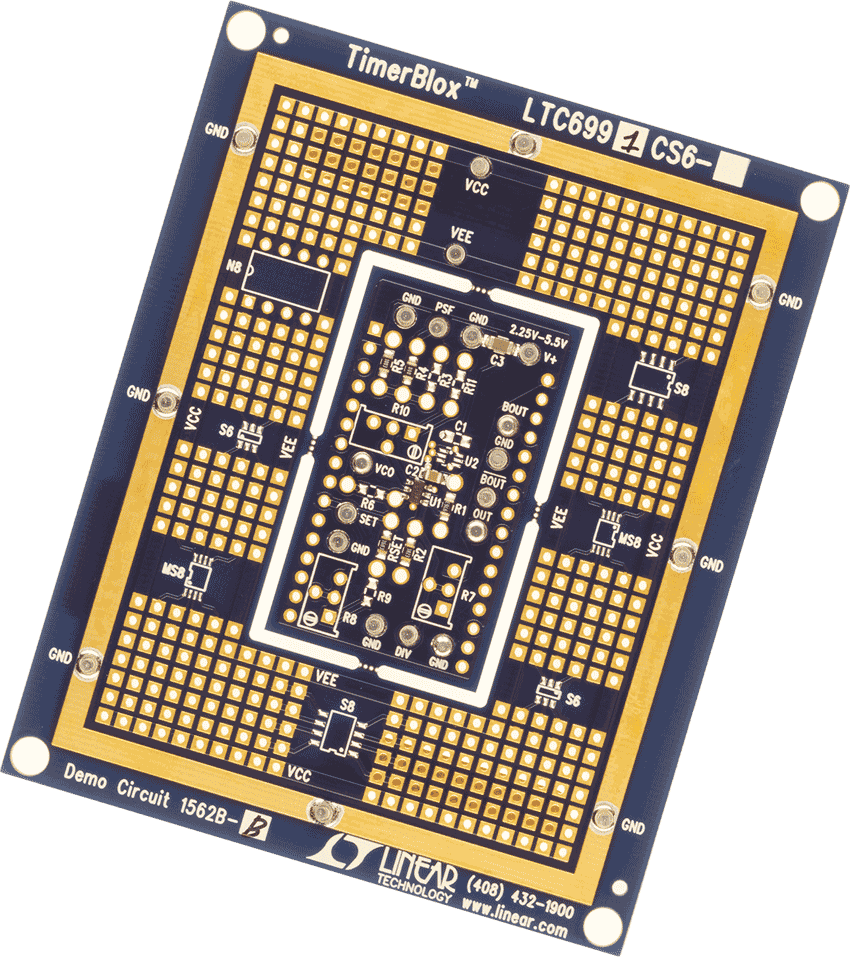

Demonstration circuit 1562B is an engineering tool to design and evaluate the LTC699X-X family of TimerBlox® circuits. The center section of the board contains a preconfigured TimerBlox function. DC1562B comes in twelve timing function variations as outlined in Table 1.
対象となる製品
関連資料
-
DC1562B - Schematic2013/08/22PDF50K
-
DC1562B - Demo Manual2013/08/22PDF392K
-
DC1562B - Design Files2013/08/22ZIP899K
