DC1429A

LTC3642EDD Demo Board | 60V Transients, 4.5V ≤ V_IN ≤ 45V, V_OUT= 1.8V/3.3V/5V/Adjustable @ 50mA

トップへ

製品概要

製品概要

製品概要

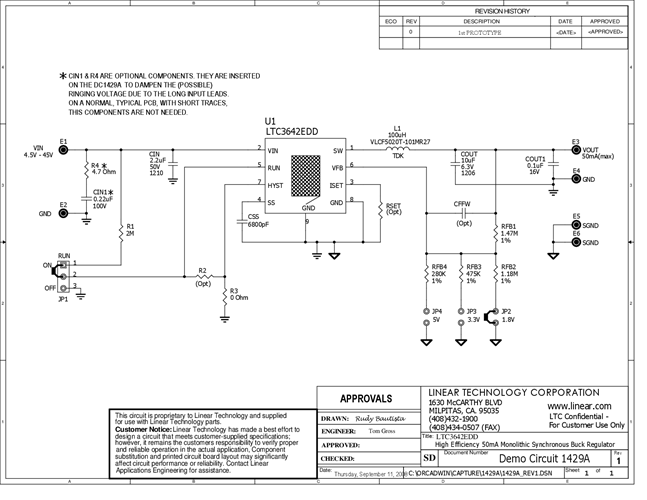

Demonstration circuit DC1429A is a high efficiency step-down DC/DC converter featuring LTC3642 with internal high side and synchronous power switches that draws only 10μA quiescent current. It has a wide 4.5V to 45V input range and internal over voltage monitor capable of protecting the part through 60V surges. The jumper-selectable output is up to 5V. LTC3642 can supply up to 50mA load current with a programmable peak current limit that provides a simple method for optimizing efficiency in lower current applications. With no compensation required, LTC3642 is easily configured with minimal components. Gerber files for this circuit are available.
