DC1397B-A
LTC2656-L16 Demo Board | Octal SPI 16-Bit Voltage Output DAC with 1.25V Reference (requires DC2026)
トップへ
製品概要
製品概要
Demonstration circuit 1397B features the LTC2656 Octal 16-bit DAC with ±4LSB INL error. This device establishes a new board-density benchmark for 16-bit DACs and advances performance standards for output drive, crosstalk and load regulation in single supply, voltage-output multiple DACs.
対象となる製品
関連資料
-

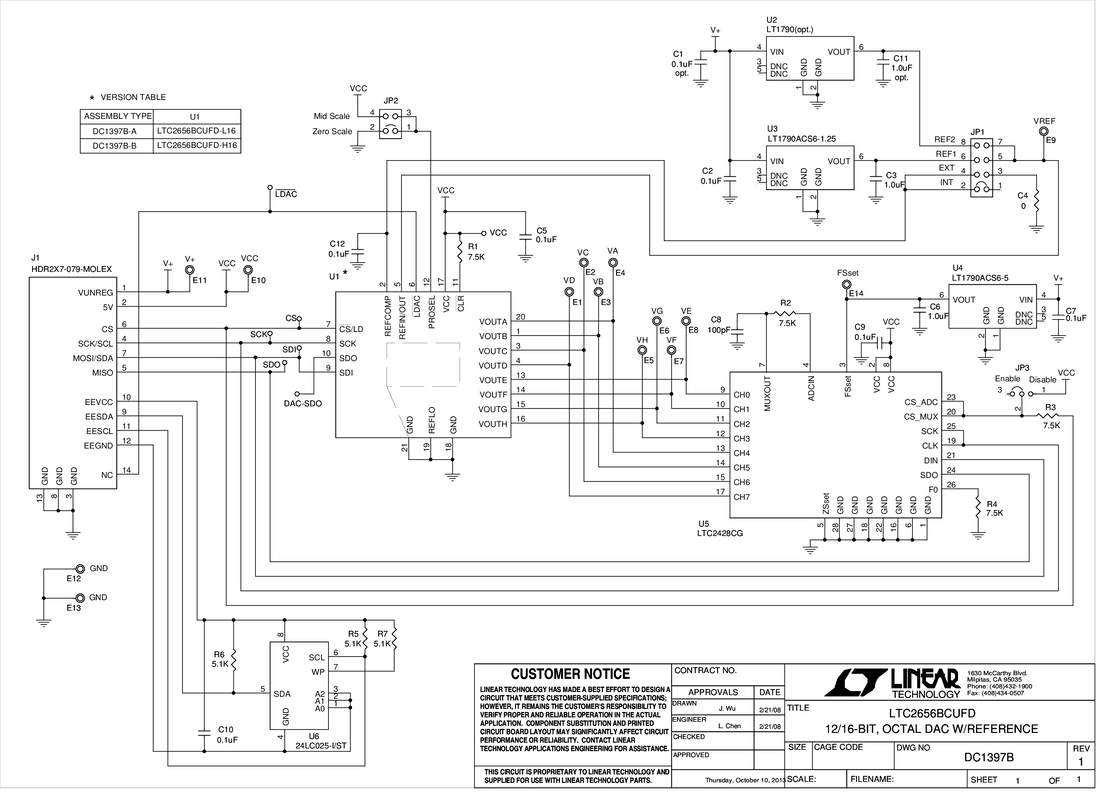

DC1397B - Schematic2014/02/24PDF37K
-
DC1397B - Demo Manual2014/02/24PDF556K
-
DC1397B - Design Files2014/02/24ZIP841K
