DC1343A
LTC3564DCB6 Demo Board (DFN) | 2.25MHz, 2.5V ≤ VIN ≤ 5.5V, VOUT = 1.2V/1.5V/1.8V @ 1.25A
トップへ
製品概要
製品概要
Demonstration circuit DC1343A is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture featuring LTC3564 in the 2×3 DFN-6 package. The demo board features a 2.5V to 5.5V input voltage range and provides a jumper-selectable 1.2V/1.5V/1.8V output at 1.25A. Its high switching frequency of 2.25MHz allows the use of small surface mount inductors and capacitors.
対象となる製品
関連資料
-

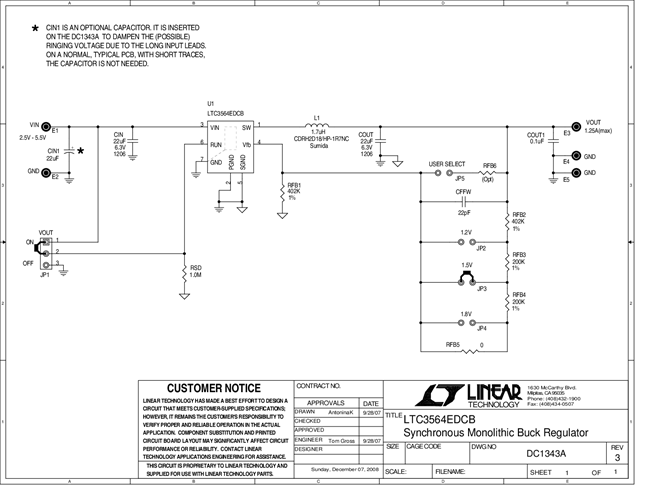

DC1343A - Schematic2009/09/24PDF33K
-
DC1343A - Demo Manual2009/09/24PDF347K
-
DC1343A - Design File2009/09/24ZIP587K
