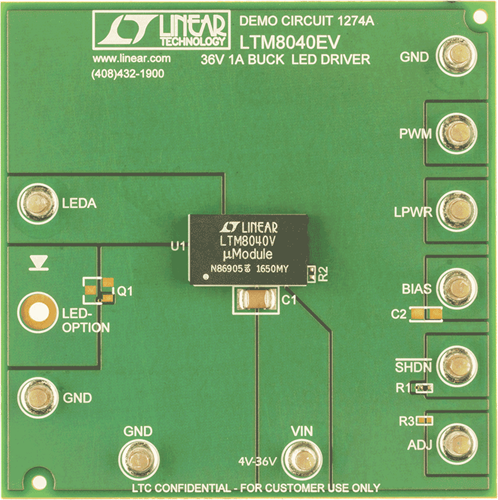

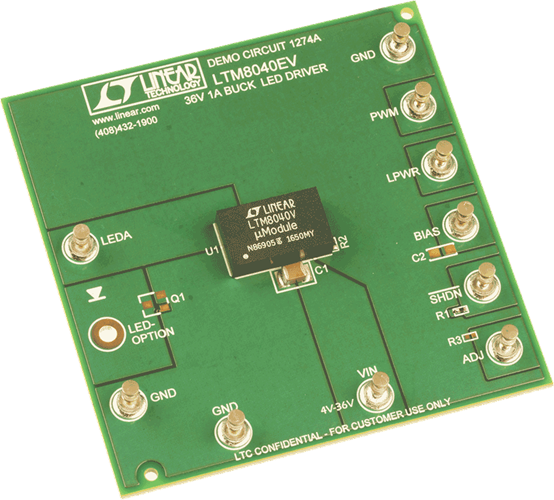

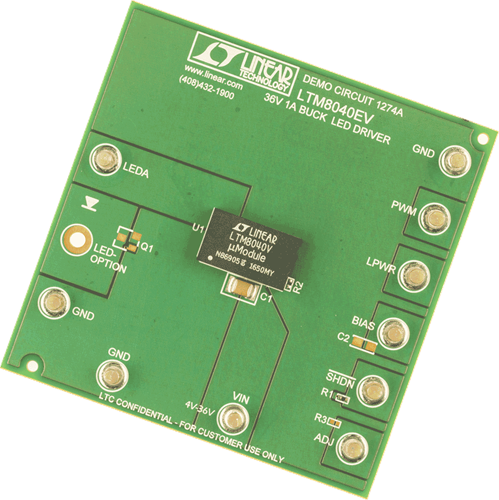

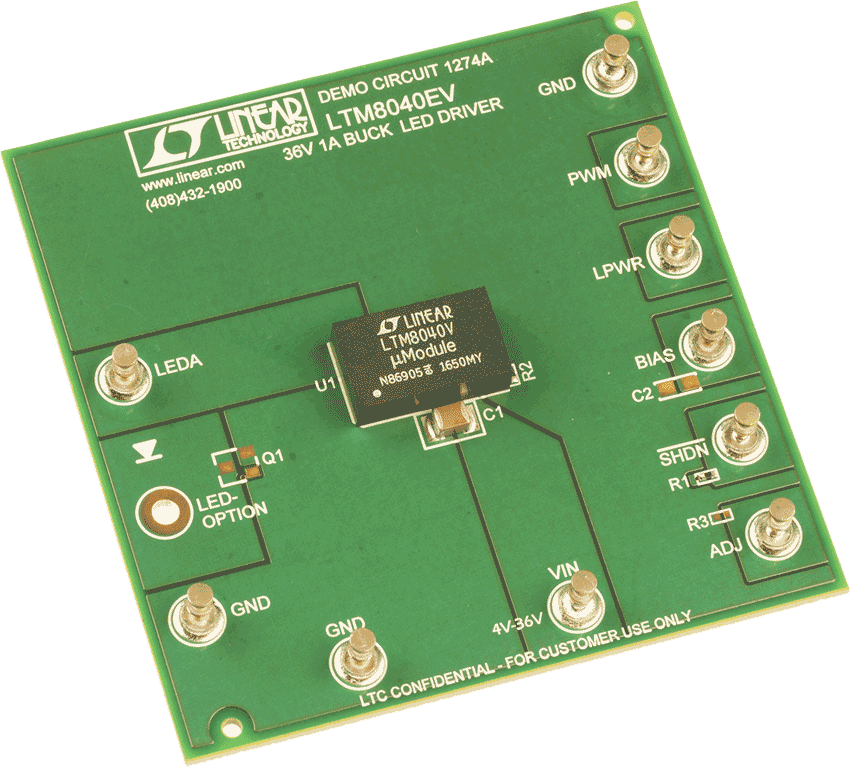

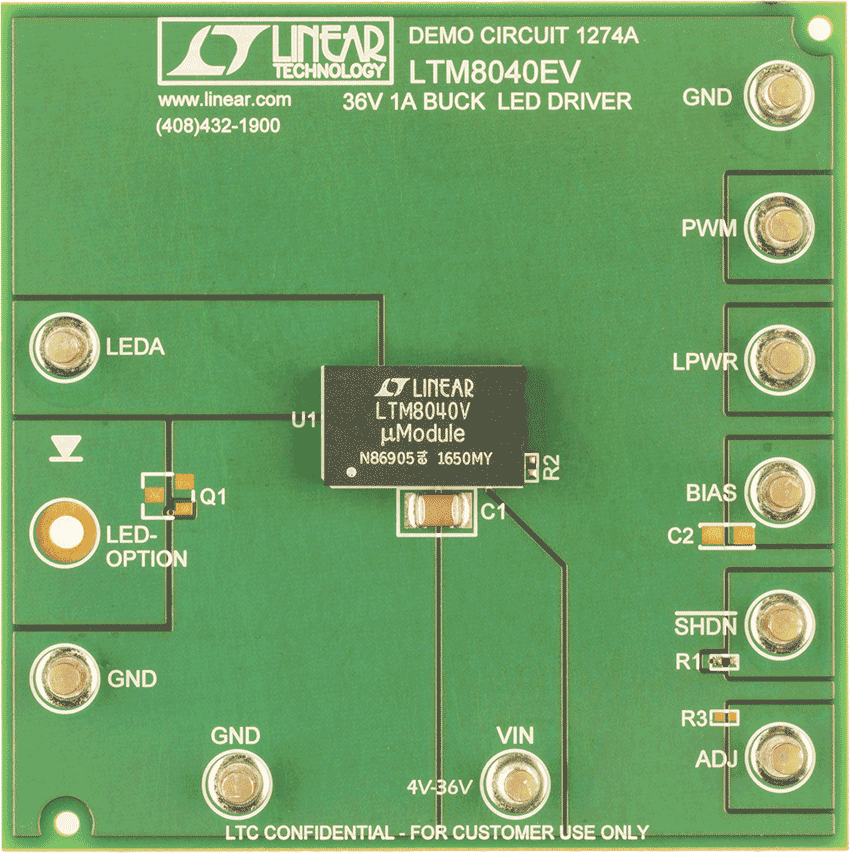

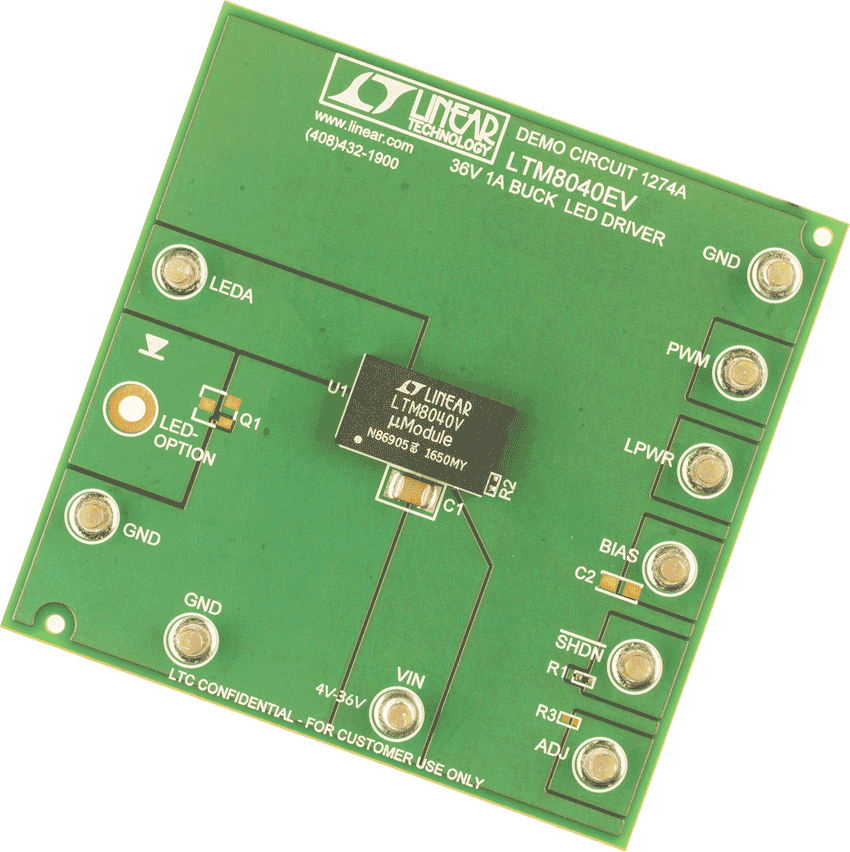

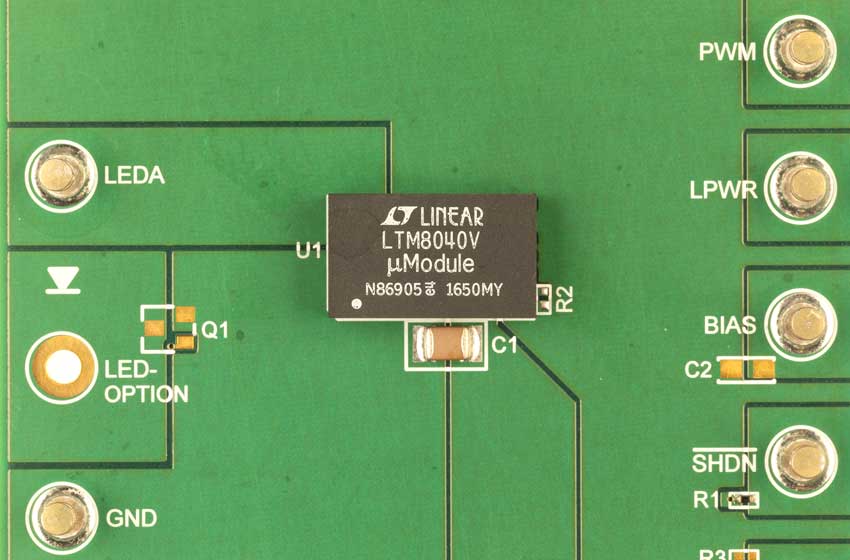

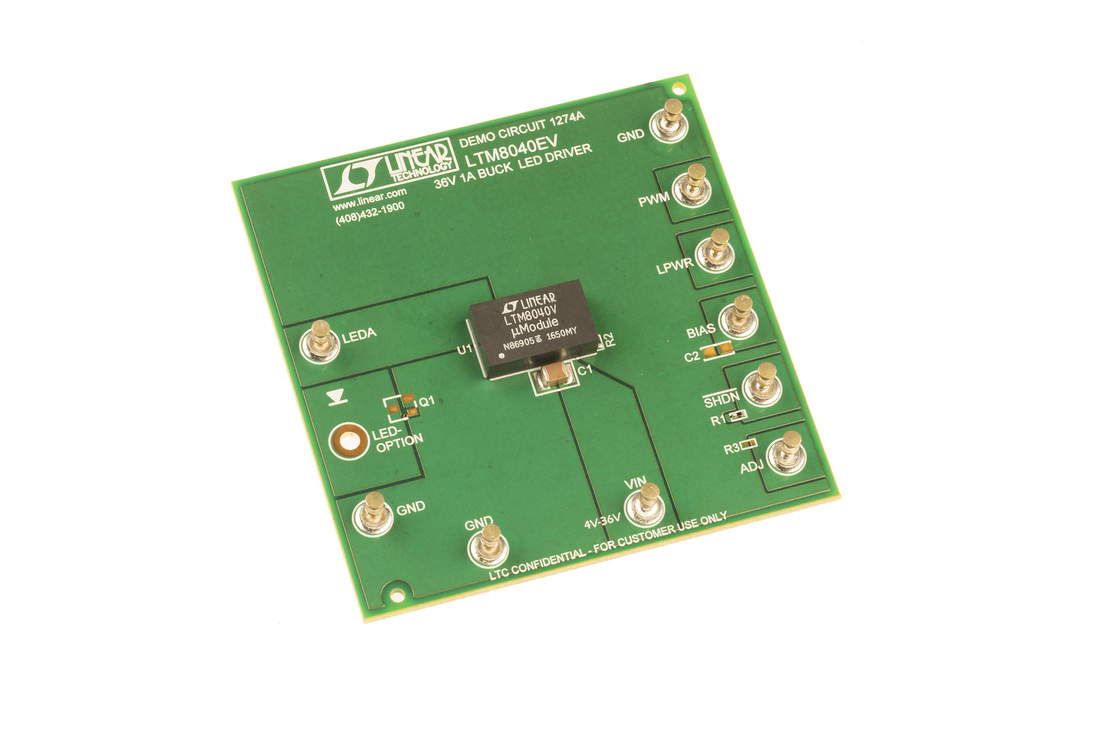

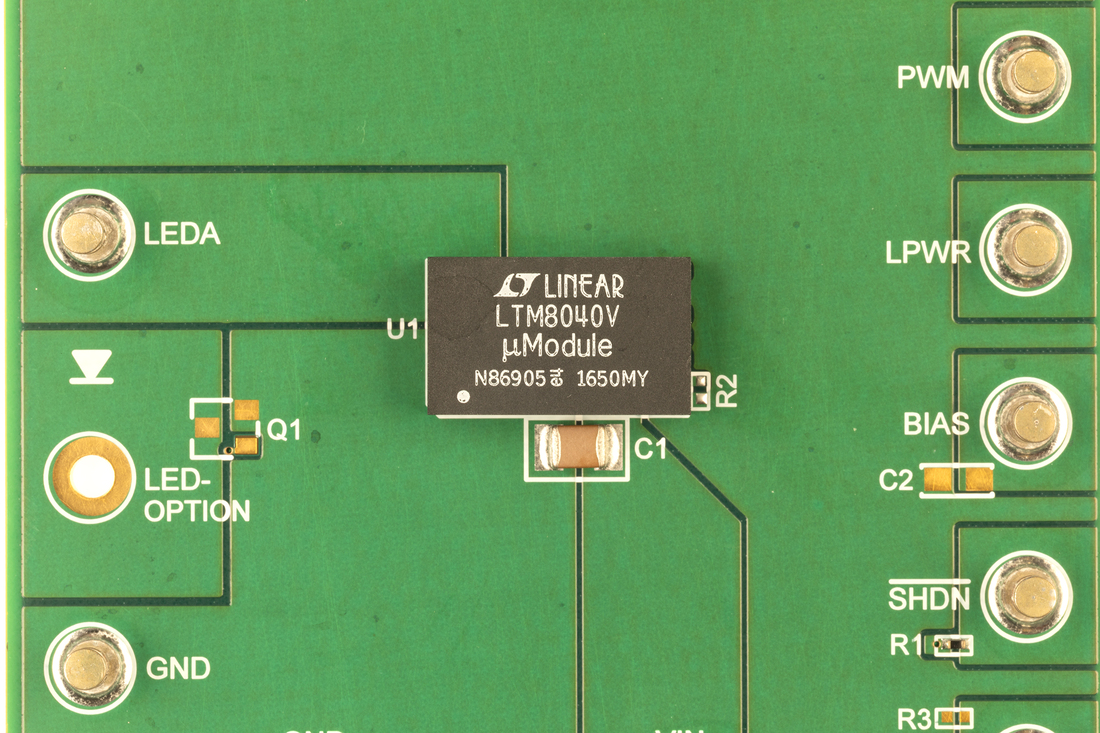

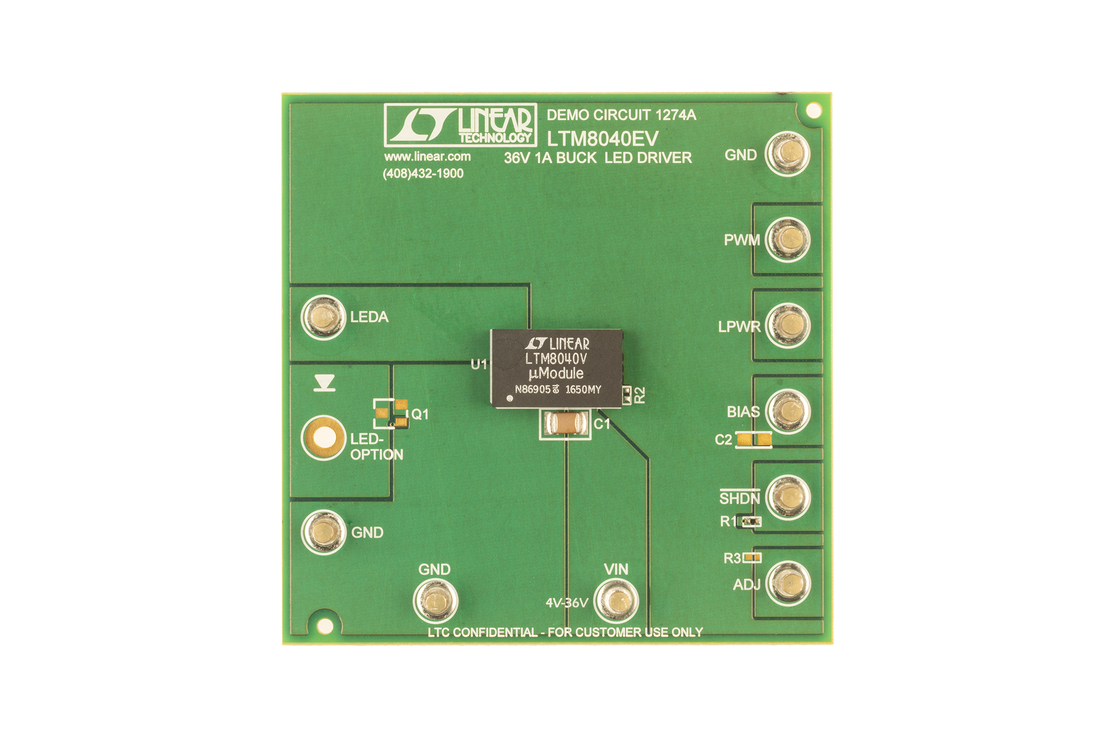

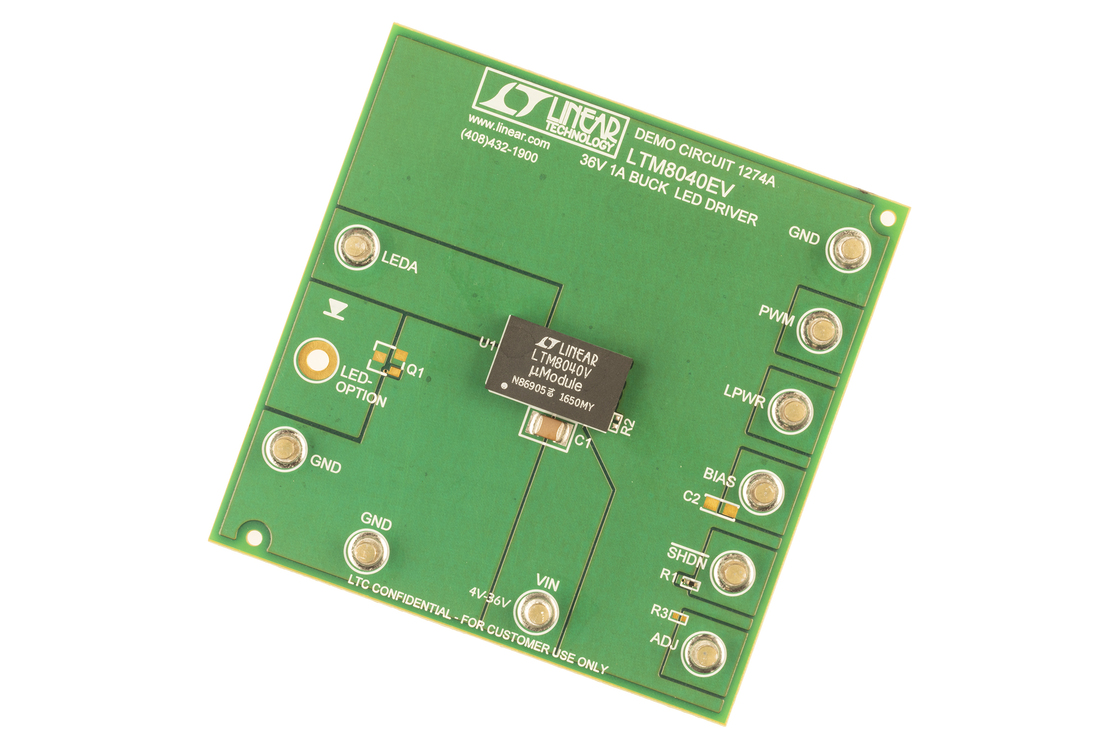

DC1274A
LTM8040EV Demo Board | µModule Buck LED Driver, 4V ≤ VIN ≤ 36V, VLED up to 13V @ 1A
トップへ
製品概要
製品概要
Demo circuit DC1274A features the LTM8040 36V, 1A step-down constant current μModule® LED driver. The demonstration circuit is designed to drive a single LED or string of LEDs at up to 1A from a wide input voltage range of 4V to 36V. The maximum LED string voltage is 13V and the minimum voltage varies depending upon the BIAS pin supply arrangement.
対象となる製品
関連資料
-

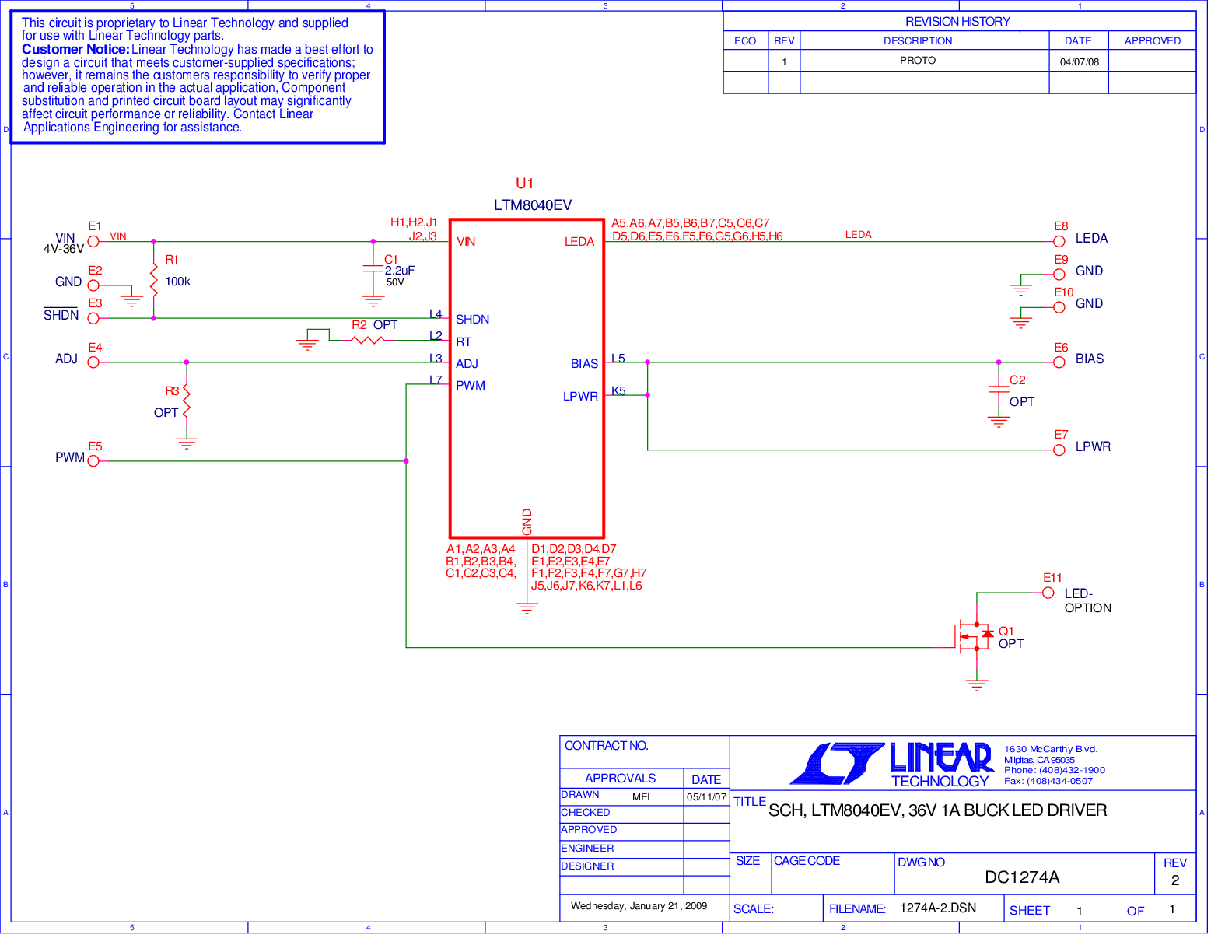

DC1274A - Schematic2010/07/16PDF19K
-
DC1274A - Demo Manual2011/07/15PDF888K
-
DC1274A - Design File2009/09/24ZIP2M
