DC1194A
LTM8020 Demo Board | µModule DC/DC Regulator, 4.5V ≤ VIN ≤ 36V, VOUT = 3.3V @ 200mA
トップへ
製品概要
製品概要

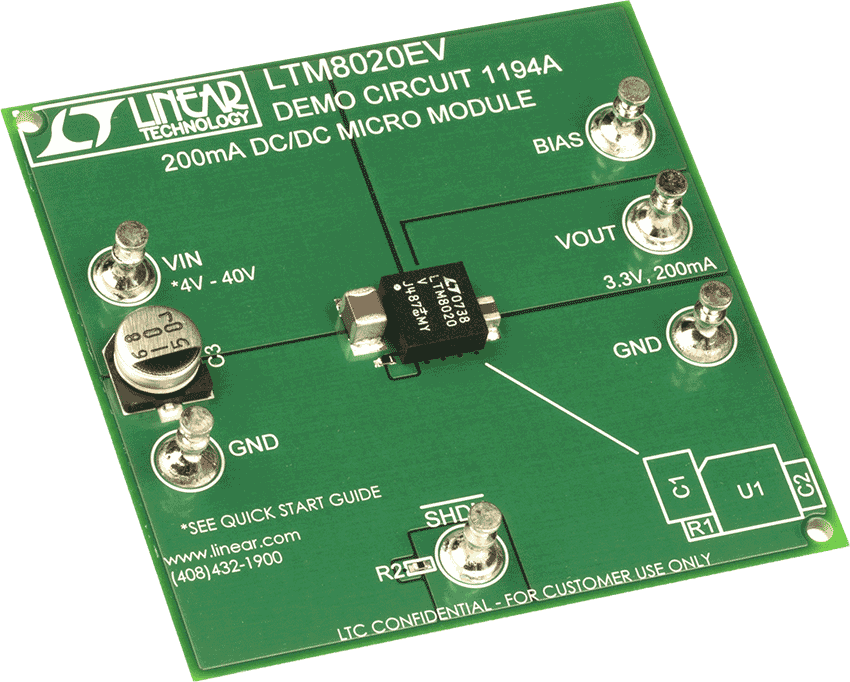

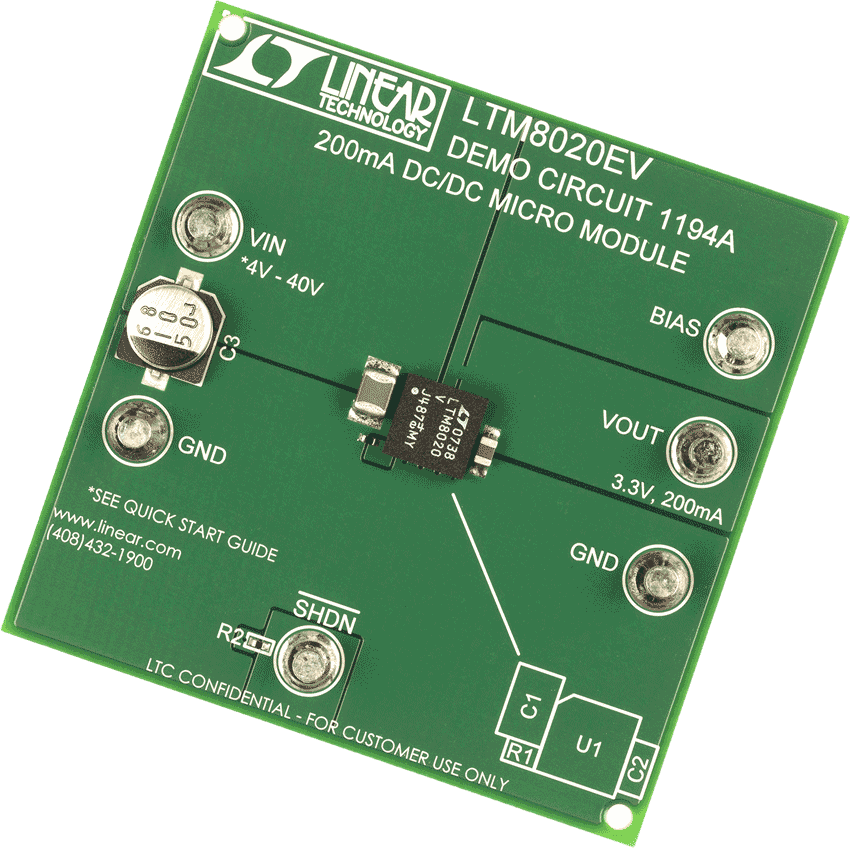

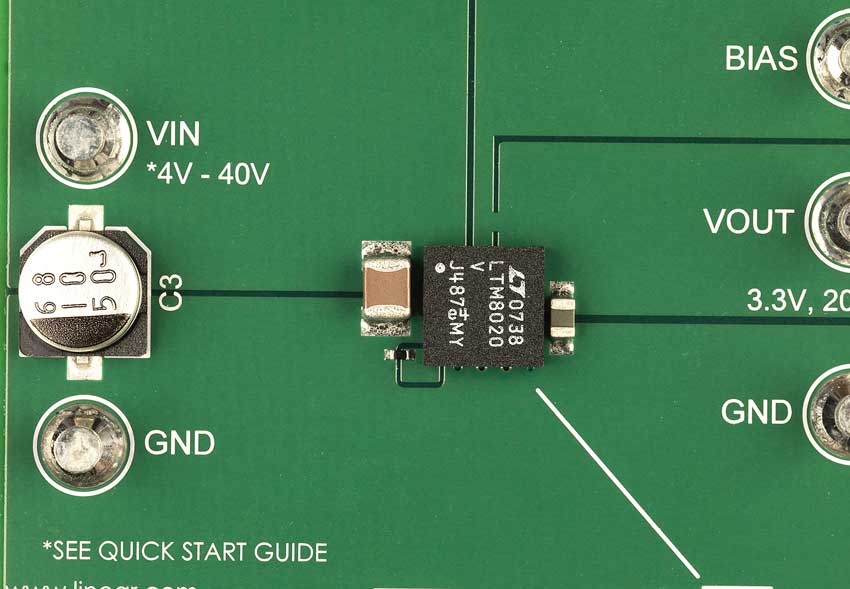

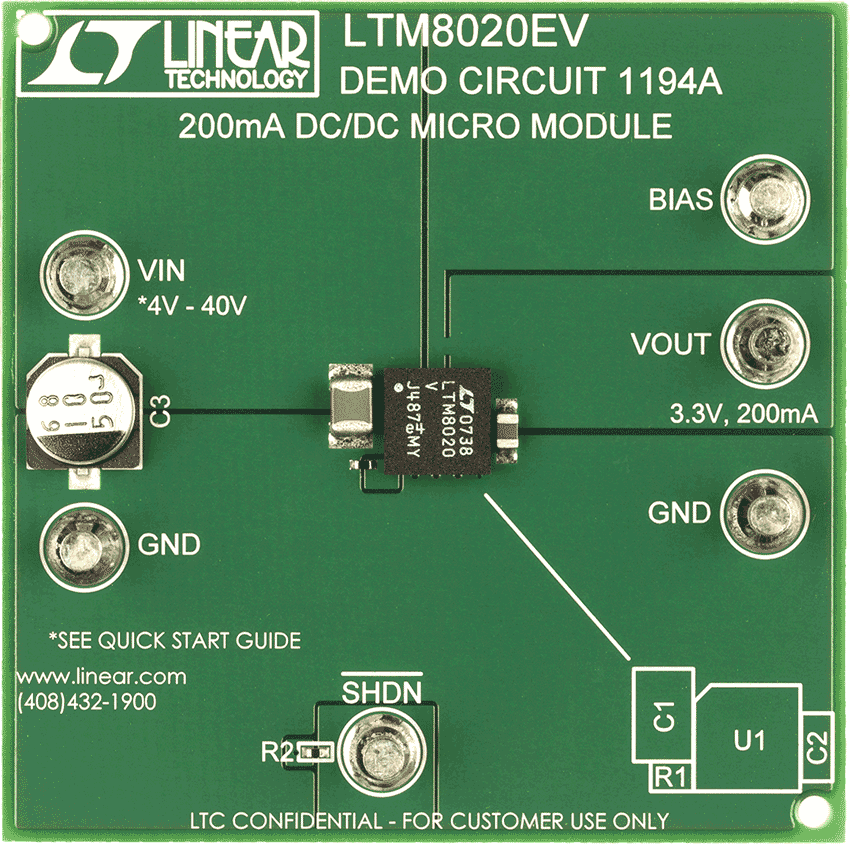

Demonstration circuit DC1194A features the LTM8020, a 200mA DC/DC step-down μModule® regulator. The board is preset to deliver a 3.3V output at up to 200mA load current from an input voltage from 4.5V up to 36V. The output voltage may be modified by simply changing one resistor.
対象となる製品
関連資料
-

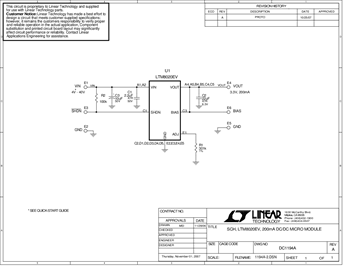

DC1194A - Schematic2009/09/24PDF21K
-
DC1194A - Demo Manual2011/03/04PDF525K
-
DC1194A - Design File2009/09/24ZIP859K
