DC1172A

LT1965EDD Demo Board | Low Noise, Low Dropout Linear Regulator, 2.3V ≤ V_IN ≤ 20V, V_OUT = 1.2V/1.5V/1.8V/2.5V/3.3V @ 1.1A

トップへ

製品概要

製品概要

製品概要

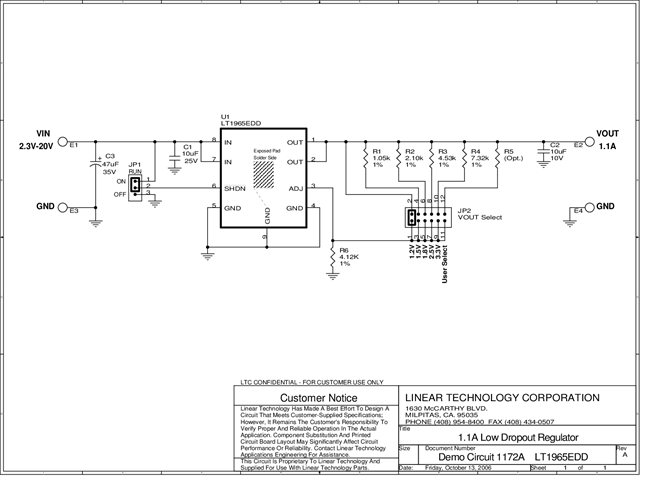

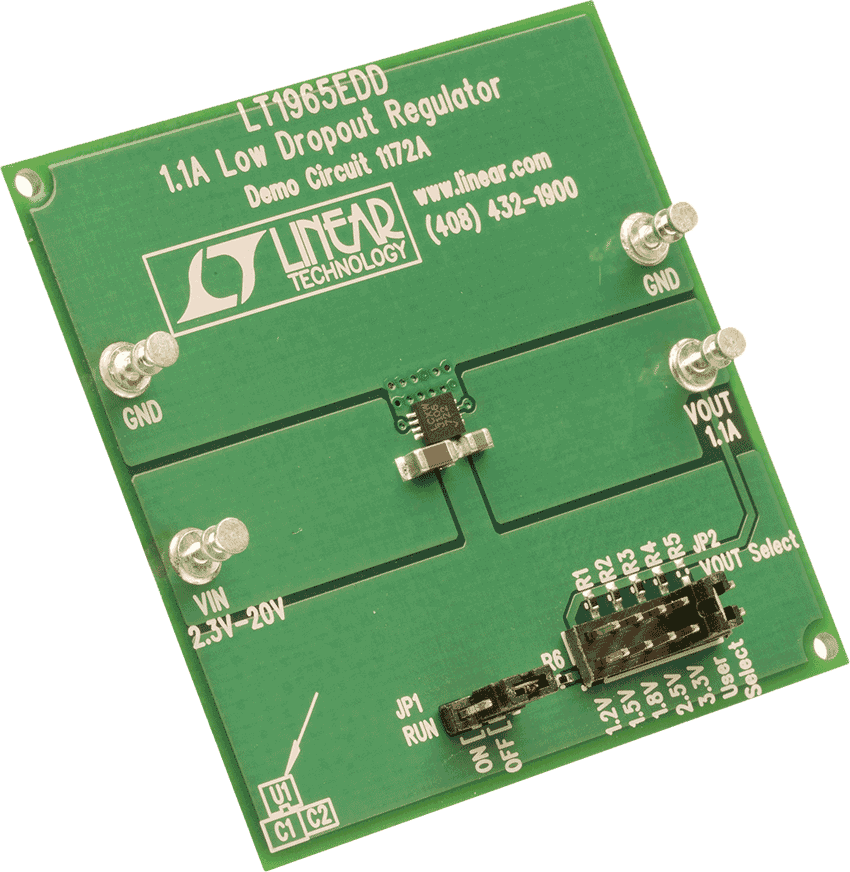

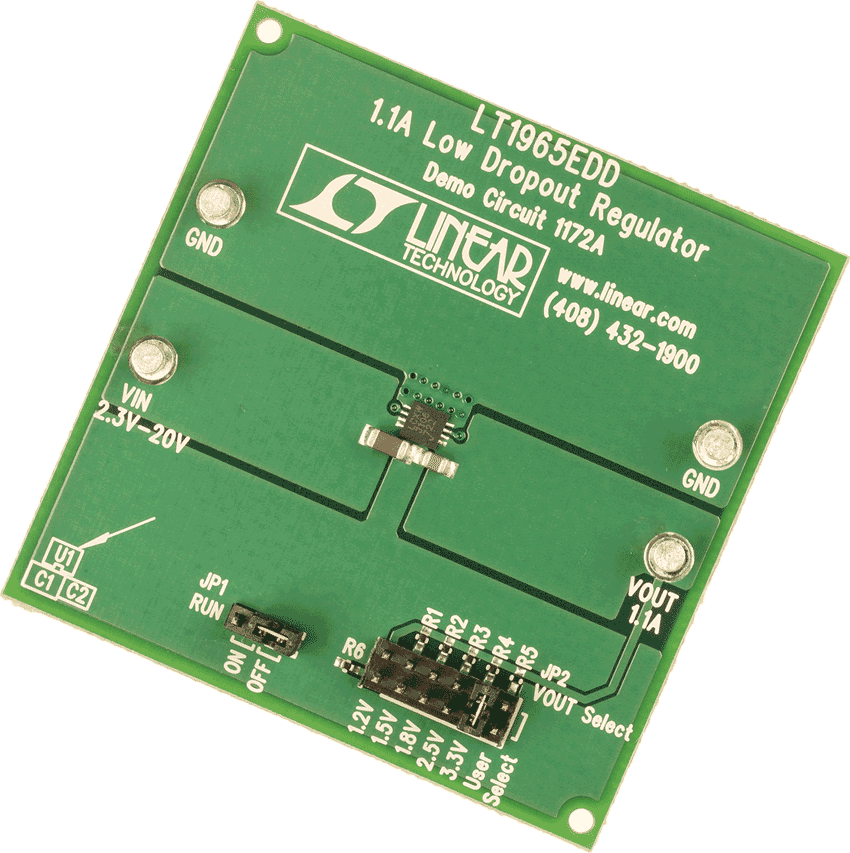

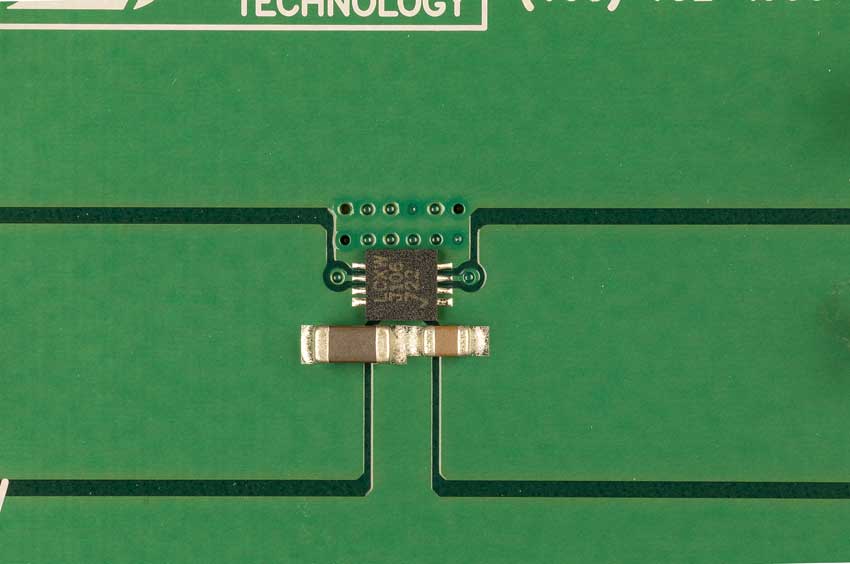

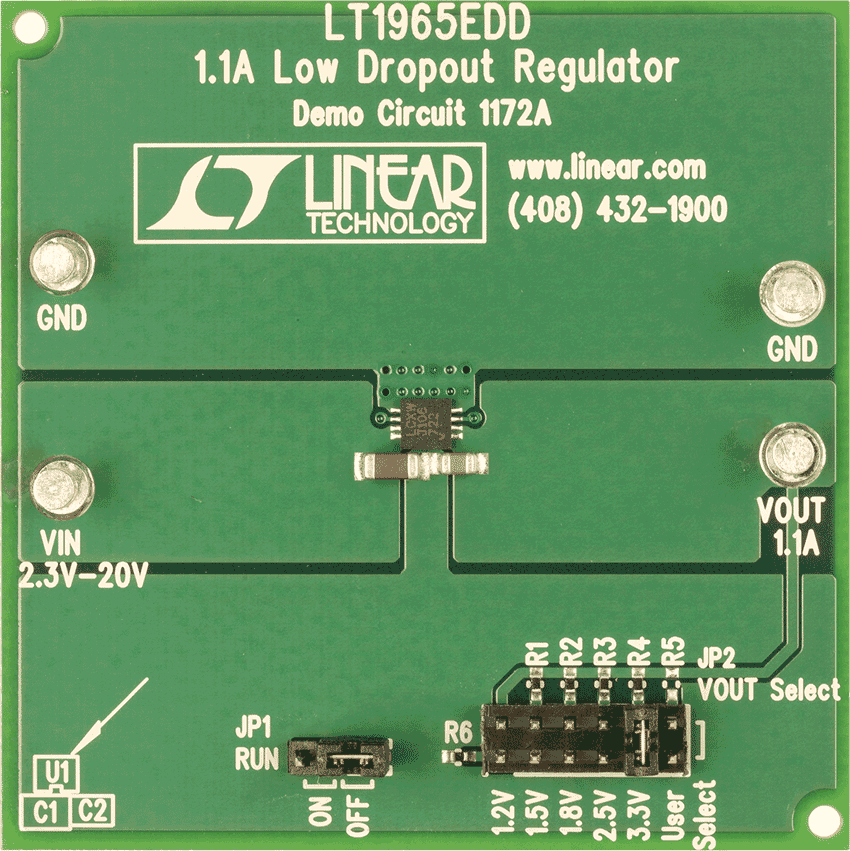

Demonstration circuit 1172A is a low dropout linear regulator featuring the LT1965 in the 3 × 3 DFN-8 package. The demo board has an input voltage range from 2.3V to 20V, and is capable of delivering up to 1.1A of output current. The output voltage is jumper-selectable and can be set to 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or a user-determined value.
