HMC469
製造中止Dual SiGe HBT Gain Block Amplifier SMT, DC - 5 GHz
製品の詳細
- +18 dBm P1dB Output Power
- 15 dB Gain
- Output IP3: +34 dBm
- Supply (Vs): +5V to +12V
- 14.9 mm² Ultra Small 8 Lead MSOP

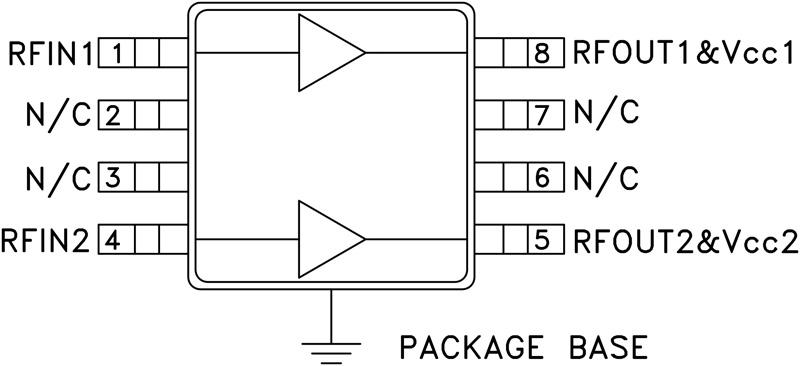

The HMC469MS8G(E) is a SiGe HBT Dual Channel Gain Block MMIC SMT amplifier covering DC to 5 GHz. This versatile product contain two gain blocks, packaged in a single 8 lead plastic MSOP, for use as either separate cascadable 50 Ohm RF/IF gain stages, LO or PA drivers or with both amplifiers combined utilizing external 90° hybrids to create a high linearity driver amplifier.
Each amplifier in the HMC469MS8G(E) offers 15 dB of gain, +18dBm P1dB with a +34 dBm output IP3 at 850 MHz while requiring only 75 mA from a single positive supply. The combined dual amplifier circuit delivers up to +20 dBm P1dB with +35dBm OIP3 for specific application bands through 4 GHz.
Applications
- Cellular / PCS / 3G
- Fixed Wireless & WLAN
- CATV, Cable Modem & DBS
- Microwave Radio & Test Equipment
ドキュメント
製造中止品のデータシート 1
品質関連資料 4
テープ＆リール仕様 1
これは最新改訂バージョンのデータシートです。
