Description

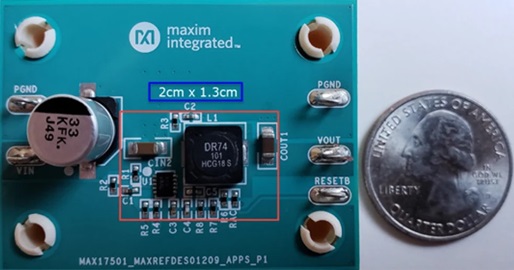

The MAXREFDES1209 operates over a 14V to 60V input voltage range to deliver output voltage regulated at 12V and up to 500mA of load current. The output voltage is accurate to within ±1.7% over -40°C to +125°C. The MAX17501 EV kit is available in a compact TDFN package. The device features peak-current-mode control with pulse-width modulation (PWM) with a fixed switching frequency of 600kHz at all loads. The device offers external compensation components and uses a two-layer PCB board. The low-resistance, on-chip MOSFETs ensure high efficiency (~94%) at full load and simplify the layout. A programmable soft-start feature reduces input inrush current. The device also incorporates an output enable/undervoltage lockout pin (EN/UVLO) that turns on the part at the desired input voltage level. An open-drain RESET pin provides a delayed power-good signal to the system upon achieving successful regulation of the output voltage.Important Notice and Disclaimer
Please read the Reference Design Disclaimer for Analog Devices design information and resources.
Parts Used
Documentation & Resources
-
MAXREFDES1209 Design Files9/10/2021ZIP546 K
-
MAXREFDES1209: Non-Isolated 12V/0.5A 6W Step-Down Converter Using the MAX175019/10/2021PDF388 K
