Reference Design
Design & Integration File
Designed, Built, Tested

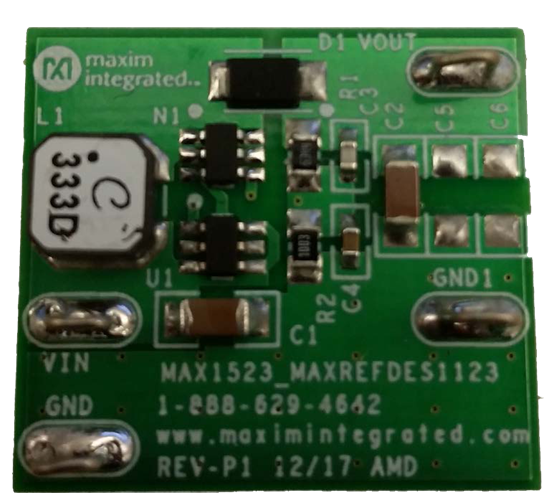

Board pictured here has been fully assembled and tested.

Overview

Design Resources

Design & Integration File

  • Schematic
  • PCB Layout
  • Bill of Materials
  • Test Results
Download Design Files 2.28 M

Description

The MAXREFDES1123 is a compact boost power-supply design for high-voltage applications with low current requirements where extremely low cost and small size are top priorities. This design provides an 80V output and up to 5mA of load current. This power supply is designed specifically to provide a simple application circuit at high voltage and to minimize the size and number of external components, making it ideal for low-cost consumer electronics applications.

This design is centered around the MAX1523 simple SOT23 boost controller. The design is tested at 5V nominal voltage input. The output voltage is within 1% error margin.

Features & Benefits

  • Small Size (134mm2)
  • 80V/5mA Output
  • Low Quiescent Current (25μA typ)
  • Pin-Selectable Maximum Duty Factor
  • Internal Soft-Start and Short-Circuit Protection
  • Discontinuous Conduction Mode (DCM)
