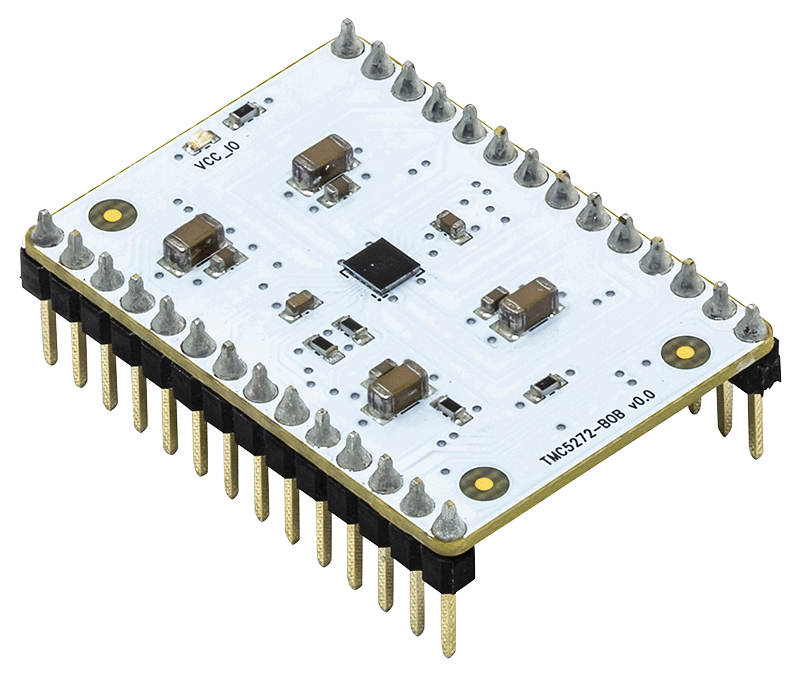

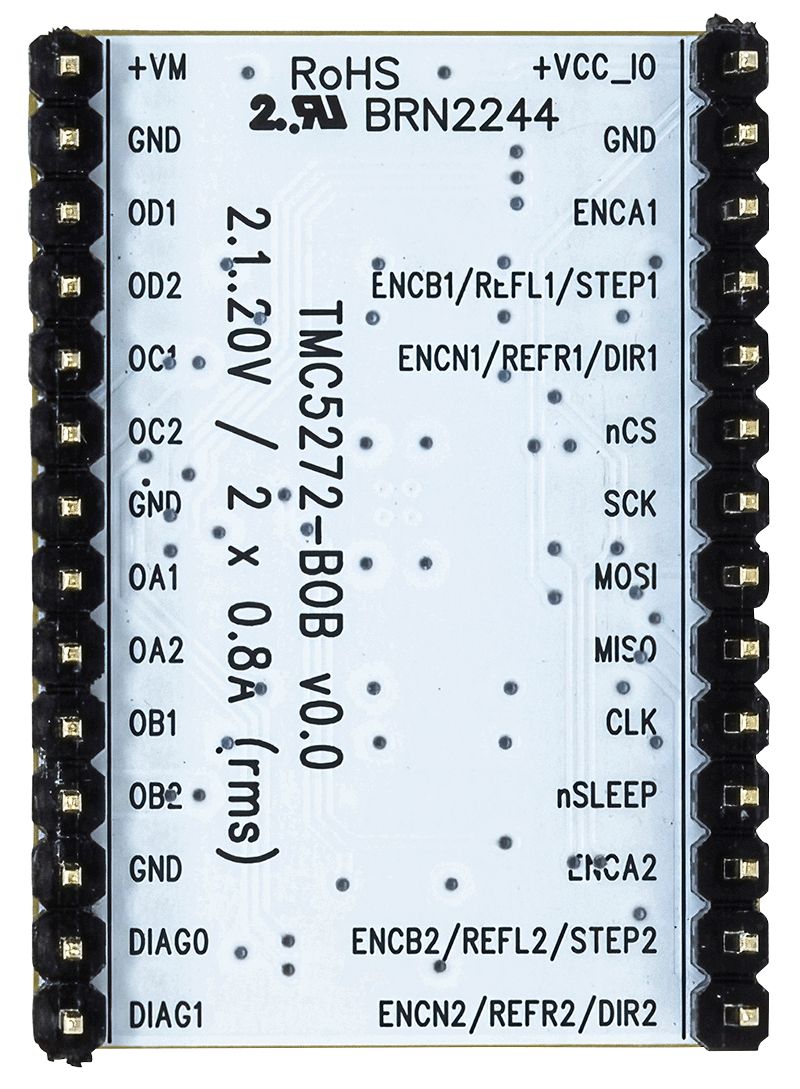

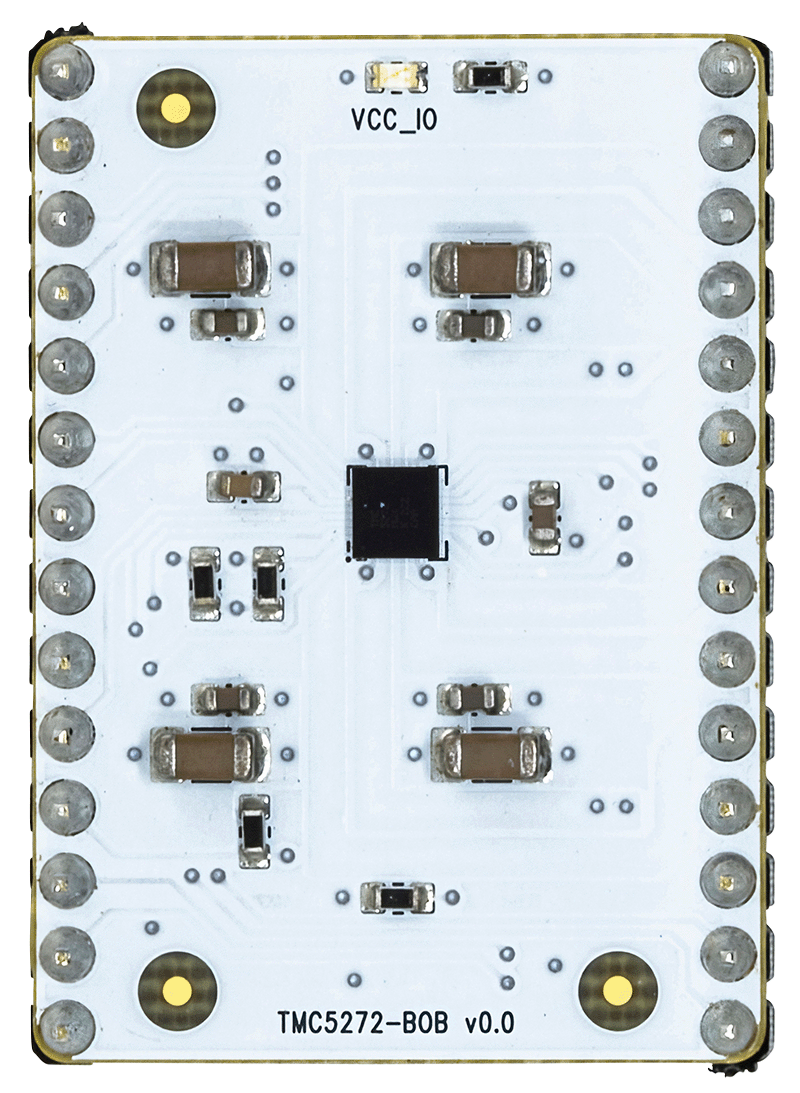

TMC5272-BOB
Breakout Board for TMC5272
Top
Overview
Features and Benefits
- TMC5272 stepper motor driver & controller
- Supply voltage 2.1... 20VDC
- 2x Iphase up to 0.8ARMS
- StealthChop2 Silent PWM mode
- StallGuard4 Sensorless motor load detection
- TriCoder Sensorless Standstill Steploss Detection and Full Step Encoder
- Board width 1.0", board height 1.4"
- 2x14 pin 0.1" header rows for pins/connectors
Documentation & Resources
-
TMC5272-BOB User Guide (Rev. 0)1/11/2024PDF2 M
-
TMC5272-BOB Gerber (Rev. 0)12/21/2023ZIP383 K
