Overview

Features and Benefits

  • Evaluates the MAXM38643A IC in a (2.1mm x 2.6mm) 10-pin EMGA Package
  • 1.8V to 5.5V Input Range
  • 0.7V to 3.3V Resistor-Configurable Output Voltages
  • Up to 600mA Output Current
  • Proven 2-Layer 1oz Copper PCB Layout
  • Demonstrates Compact Solution Size
  • Fully Assembled and Tested

Product Details

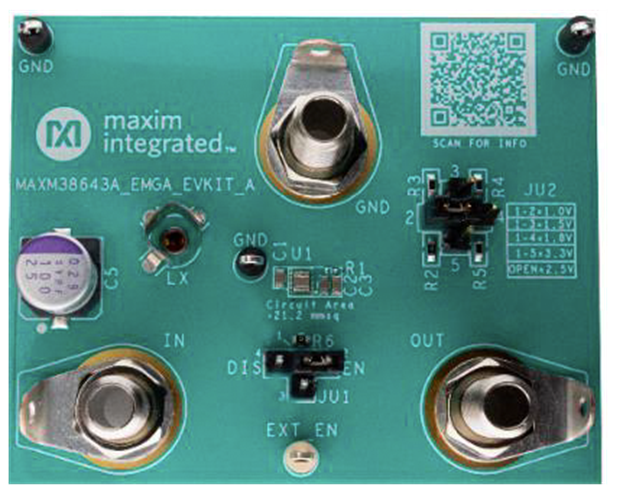

The MAXM38643A EMGA evaluation kit (EV kit) evaluates the MAXM38643A IC in an EMGA package. The MAXM38643A is an ultra-low quiescent current step-down DC-DC converter. The EV kit operates over an input range of 1.8V to 5.5V and provides resistor-configurable output voltages from 0.7V to 3.3V. The EV kit delivers up to 600mA of current. The EV kit comes with the MAXM38643AEMB+ installed.

Applications

  • Bluetooth® LE Devices
  • Hearables
  • Portable Space-Constrained Products
  • Single Li+ and Coin Cell Battery Products
  • Ultra-Low-Power IoT, NB IoT
  • Wearables
  • Wired, Wireless Products
