EVAL-MAX98388-98389
Evaluation System for MAX98388/MAX98389
Top
Overview
Features and Benefits
- 2.3V to 10V Single-Supply Operation
- USB Audio Streaming (EV System)
- I2S, Left-Justified, or TDM Input
- Single Cell (2.3V to 5.5V) or Two Cell Mode (5V to 10V)
- Fully Assembled and Tested
Product Details
The MAX98388/MAX98389 evaluation system (EV system) is a fully assembled and tested system that evaluates the MAX98388 or MAX98389 Class-D audio amplifier. The EV system consists of either the MAX98388 or MAX98389 development board (DEV board), Analog Devices Audio Interface Board III (AUDINT3), and a USB cable.
It is recommended that the DEV board be evaluated with the AUDINT3 board, as an EV system. Both devices support standard I2S, left-justified, and TDM digital audio interfaces.

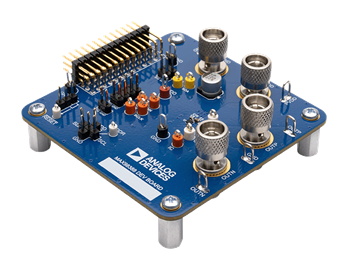

The AUDINT3 board provides a USB-to-PCM interface in addition to a 1.8V VDD supply needed to evaluate the DEV board. The DEV board requires one additional supply input, 2.3V to 10V (PVDD) when evaluating using the AUDINT3 board. Figure 1 details the DEV boards.
System Requirements
- MAX98388/MAX98389 EV system
- Development board (DEV board)
- Audio interface board III (AUDINT3 board)
- Micro-USB cable
- DC power supply (2.3V-10V, 4A)
- 4Ω to 8Ω speaker
- PC with Windows® 7 or Windows 10 with available USB port
- USB audio source (e.g., Windows Media Player® or iTunes®)
Documentation & Resources
-
MAX98388EVKIT Gerber Files3/23/2023ZIP5M
