Evaluation Kit for the MAX96714, MAX96714F, and MAX96714R
Top
Overview
Features and Benefits
- Serializer EV kit Sends GMSL Data to a Deserializer which then Converts into MIPI CSI-2
- Proven PCB Layout
- Fully Assembled and Tested
- Accepts GMSL-2 Serial Data through FAKRA Connectors, and Outputs CSI-2 Data
- USB-Controlled Interface (Cable Included)
- USB, 12V Wall, Power-Over-COAX (PoC*), or Externally Powered
- 12V Wall-Type Power Supply
- COAX Connector*
- HSD Connector*
- HMTD Connector*
- Windows 7 and Windows 10-Compatible Software
Note: In the following sections, “serializer” means MAX96717, and “deserializer” means MAX96714, MAX96714F, and MAX96714R.
Note: This document applies to both Coax HSD-STQ and HMTD-STP evaluation kits. The Coax cable is referenced in this document.
Product Details

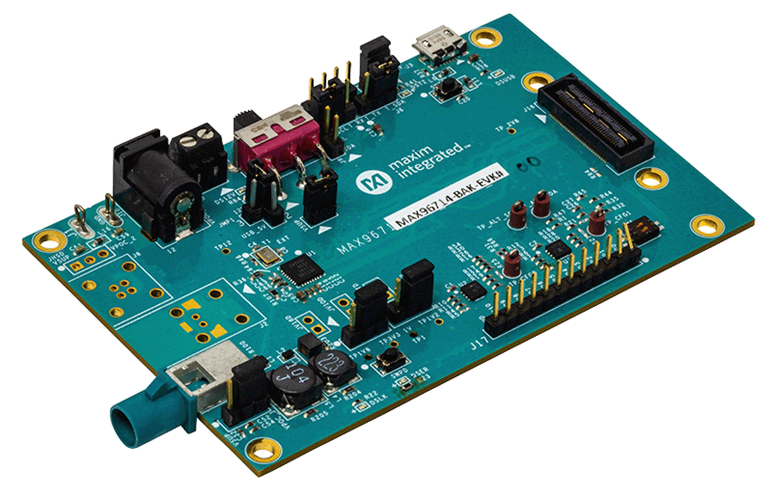

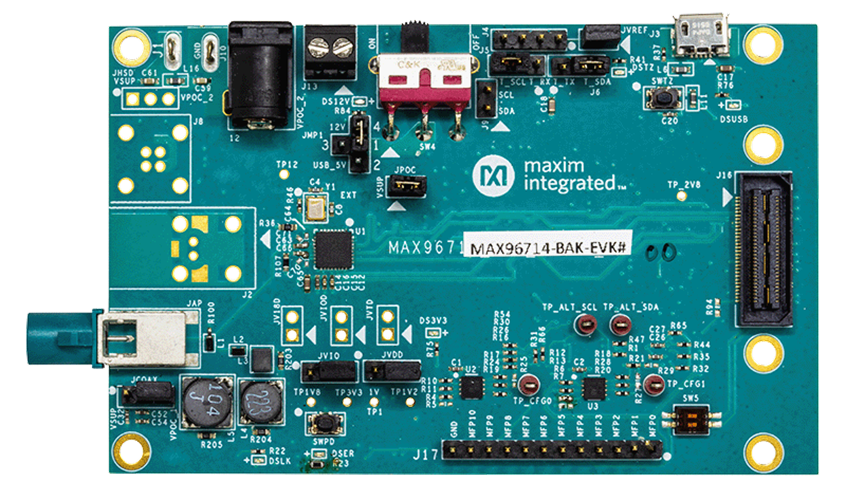

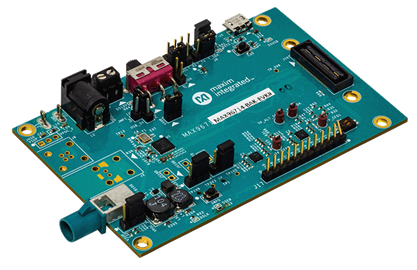

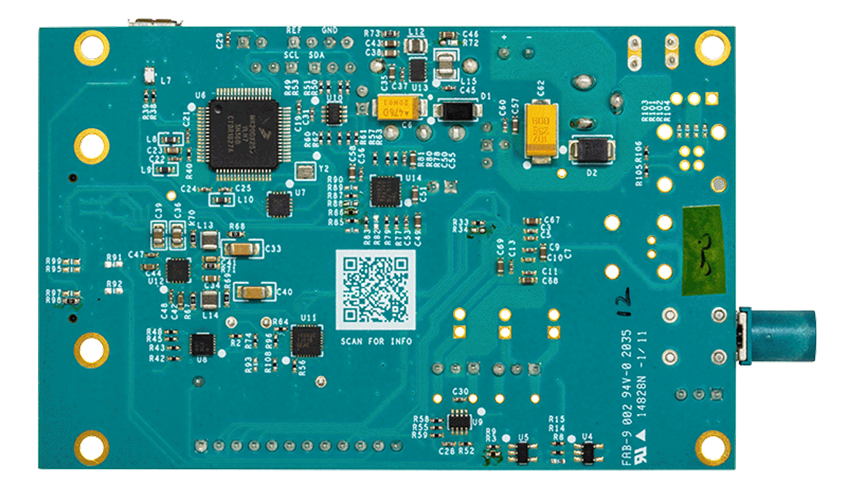

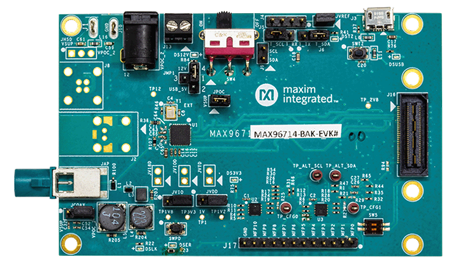

The MAX96714 CSI evaluation kit (EV kit) provides a proven design to evaluate the MAX96714, MAX96714F, MAX96714R high-bandwidth gigabit multimedia serial link (GMSL) deserializer with CSI and full-duplex control channel with the use of a standard FAKRA coaxial cable. The EV kit also includes Windows® 7 and Windows® 10 softwares that provide a simple graphical user interface (GUI) for exercising features of the device. The EV kit comes with a MAX96714/14F/14R IC installed.
For complete GMSL evaluation using a standard FAKRA coaxial cable, order the MAX96714 CSI EV kit and a companion serializer board (MAX9295A Coax EV kit referenced in this document).
Markets and Technologies
Applicable Parts
System Requirements
- MAX9295A or MAX96717 CSI EV Kit
- MAX96714 CSI EV Kit
- 2m FAKRA cable assembly (included in the MAX96714 Coax EV Kit)
- CSI source, such as an image ensor, or CSI signal generator
- Computer with Windows 7 or Windows 10 PC with a spare USB port
- 12V DC, 500mA power supply
