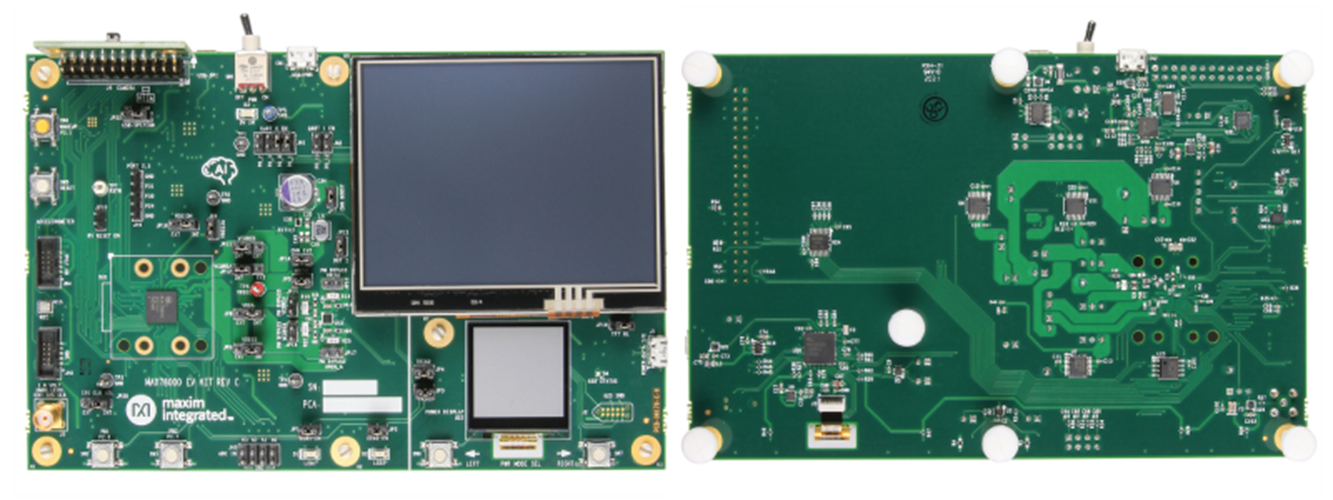

MAX78000EVKIT

Evaluation Kit for the MAX78000

Top

Overview

Features and Benefits
Product Details

Features and Benefits

Power Accumulator with Dedicated Display to Track Device Power over Time
Onboard Digital Microphone
Onboard Accelerometer/Gyroscope
SWD JTAG 10-Pin Header
RISC-V Coprocessor JTAG 10-Pin Header
16M-Byte QSPI Flash
Select GPIOs Accessible through 0.1in Headers
Four ADC Inputs with Optional AA Filter
Touch-Enabled, 3.5in, 320 x 240 Color TFT Display
UART Access through USB Bridge
QSPI Memory Access through USB Bridge
All IC Power Rails May Be Isolated by Jumpers for Individual Current Measurements
Two General-Purpose LEDs and Two General- Purpose Pushbutton Switches

Product Details

The MAX78000 evaluation kit (EV kit) provides a platform for leveraging the capabilities of the MAX78000 to build new generations of artificial intelligence (AI) devices.

Onboard hardware includes a digital microphone, a gyroscope/ accelerometer, parallel camera module support and a 3.5in touch-enabled color TFT display. A secondary dis- play is driven by a power accumulator for tracking device power consumption over time. Uncommitted GPIO as well as analog inputs are readily accessible through 0.1in pin headers. Primary system power as well as UART access is provided by a USB Micro-B connector. A USB to SPI bridge provides rapid access to onboard memory, allow- ing large networks or images to load quickly.

Applications

Audio Processing: Multi-Keyword Recognition, Sound Classification, Noise Cancellation
Facial Recognition
Object Detection and Classification
Time-Series Data Processing: Heart Rate/Health Signal Analysis, Multi-Sensor Analysis, Predictive Maintenance
