Data Sheet Rev. 0
1 View All
EE-Sim Design & Simulation
1 View All

Overview

Features and Benefits

  • Easy to Use
    • Evaluates Both Fixed-Output and Adjustable- Output Versions (3.3V Version Preinstalled)
    • 3V to 24V Input Voltage Range
    • Demonstrates 1.5µA Quiescent Current at 12VSUP Input
  • GUI Drives I2C Interface
  • Emulates System Loading
    • On-Board Electronic Load
    • Electronic Load has Steady-State, Transient, and Random Modes
    • Optional Ability to Control Electronic Load through Function Generator for Patterned Load Waveforms
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

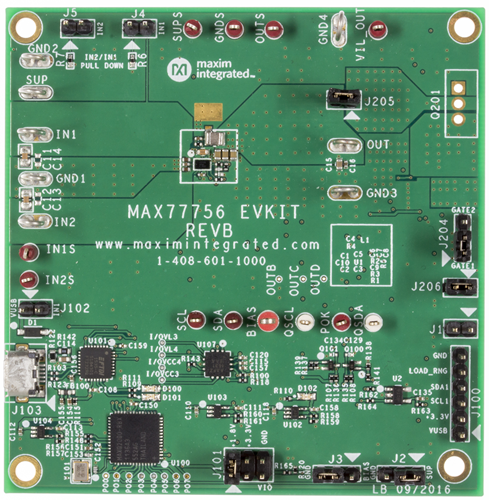

The MAX77756 evaluation kit (EV kit) is a fully assembled and tested PCB that demonstrates the MAX77756 synchronous 500mA step-down converter. The EV kit allows for easy evaluation of the IC’s input power multiplexer and step-down converter. A dual-range (8mA and 800mA full scale) electronic load is included on the EV kit for easy buck converter load control.

Windows®-based software provides a user-friendly graphical user interface (GUI), as well as a detailed register-based interface to exercise the features of the IC.

Applications

  • Battery-Powered Systems, Backup Battery, Uninterruptible Rails
  • Home Automation, Low IQ Smart Hubs
  • Notebook and Tablet Computers
  • USB Type-C Power Delivery Accessories and Devices

Applicable Parts

Documentation & Resources

  • View All (2)
  • Data Sheet (1)
  • Evaluation Design File (1)
    • Document Type

    Tools & Simulations

    EE-Sim

    EE-Sim: Design & Simulate MAX77756C EVKIT
