MAX77650EVKIT

Evaluation Kit for the MAX77650/MAX77651

Top

Overview

Features and Benefits
Product Details

Features and Benefits

Easy to Use
GUI Drives I²C Interface
On-Board Ammeter
On-Board Thermistor
On-Key Options
RGB LED Cluster
Assembled and Fully Tested
Emulates System Loading
On-Board Electronic Loads
Electronic Loads have steady-state, transient, and random modes
Demonstrates End-to-End Analog Multiplexer Implementation
On-Board ADC
Evaluates Both Push-Button and Slider-Switch On-Key Options

Product Details

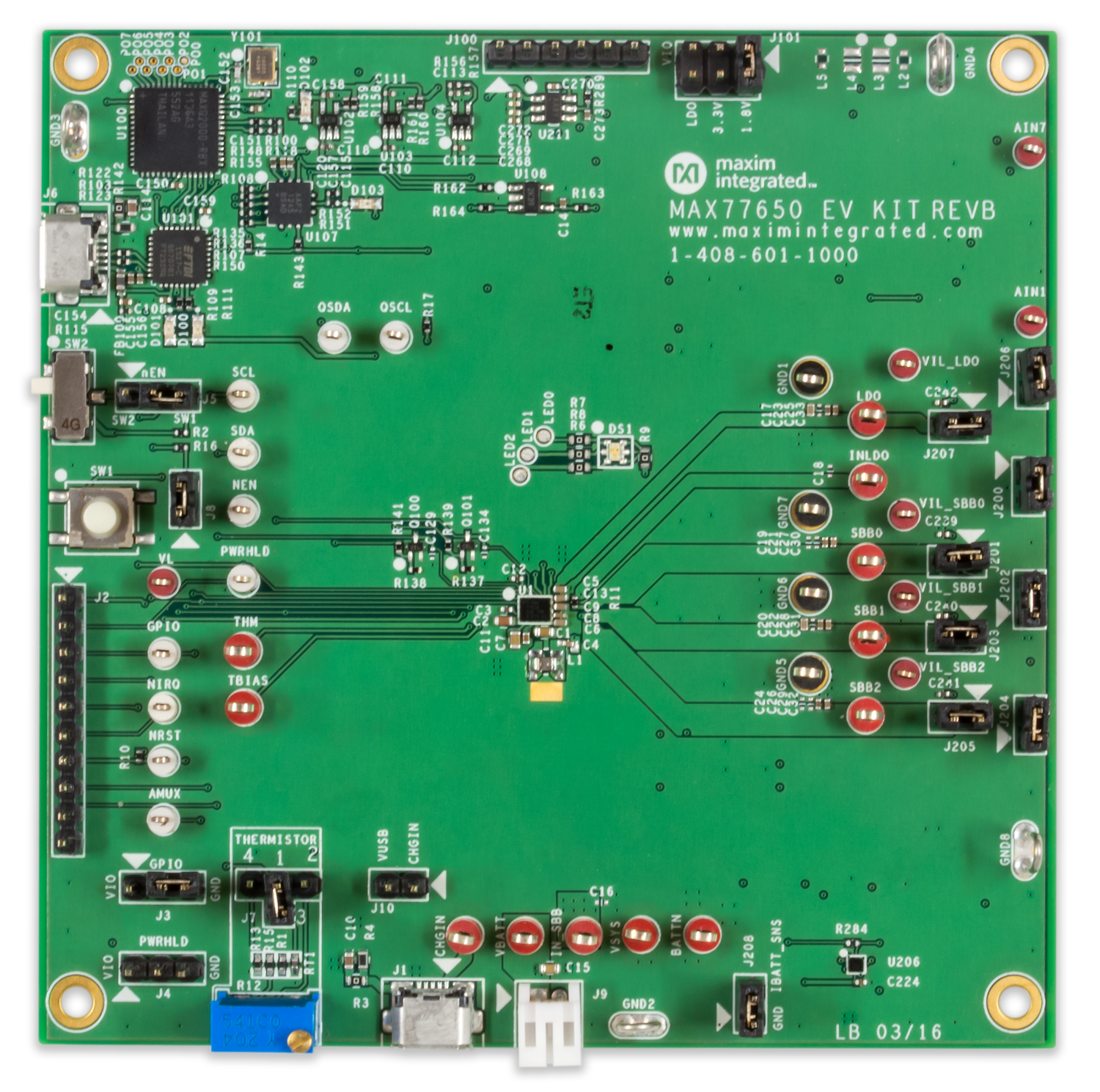

The MAX77650/MAX77651 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that demonstrates the MAX77650/MAX77651. The EV kit allows for easy evaluation of the various MAX77650/MAX77651 features, including the SIMO buck-boost regulator, linear regulator, analog multiplexer, smart battery charger, on/off controller, and I²C interface.

The MAX77650 and MAX77651 EV kits are identical aside from the device (U1), silkscreen, and two resistive dividers at the SIMO outputs (see the MAX77650/MAX77651 EV Kit Differences section). The MAX77650/MAX77651 devices themselves have different output voltage ranges for the SIMO buck-boost regulator. Consult the device data sheet for more information.

Windows^®-based software provides a user-friendly graphical interface as well as a detailed register-based interface to exercise the features of the MAX77650/MAX77651.
