MAX3232PMB1

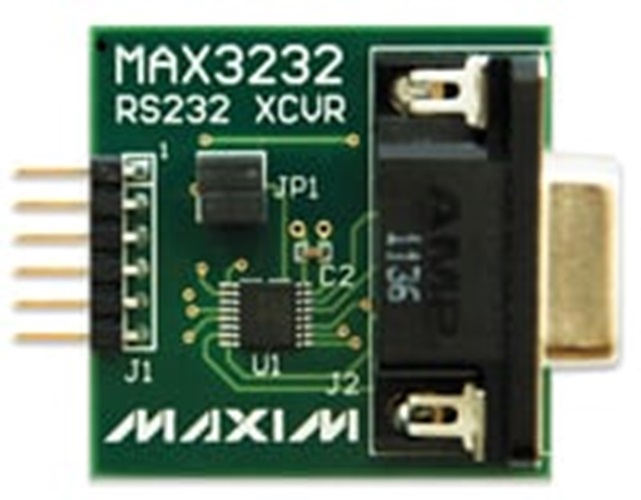

MAX3232PMB1 Peripheral Module
Top
Overview
Features and Benefits
- Transmitter Output and Receiver Inputs Protected to ±15kV
- Implements RS-232 DCE
- True RS-232 Levels from Single 3.3V Supply
- 6-Pin Pmod-Compatible Connector (Pmod Interface Type 4 UART)
- RoHS Compliant
- Proven PCB Layout
- Fully Assembled and Tested
Product Details
The MAX3232PMB1 peripheral module provides the necessary hardware to interface the MAX3232E true RS-232 transceiver to any system that utilizes Pmod™-compatible expansion ports configurable for UART communication. The IC has two receivers and two transmitters that are used to implement RS-232 data transmit and receive channels along with optional CTS and RTS handshaking. The RS-232 side input and output levels are true RS-232, achieved by incorporation of a dual internal charge pump.
Refer to the MAX3232E IC data sheet for detailed information regarding operation of the IC.
Applications
- Battery Powered Equipment
- Printers. PCs, Computers
- Rapid Prototyping
- XDSL Modems
Documentation & Resources
-
UG-5483: Analog Essentials Getting Started Guide for Zedboard8/17/2012PDF1M
-
UG-5466: Analog Essentials Getting Started Guide for LX9 and Nexys37/18/2012PDF1M
-
MAX3232PMB1: MAX3232PMB1 Peripheral Module Data Sheet (Rev. 0)5/14/2012PDF1M
-
Solutions For Rapid Prototyping: Answering the Needs of Practicing Engineers8/23/2023PDF784 K
-
Maxim Analog Essentials Collection7/20/2012PDF501K
