MAX31723PMB1 Evaluation Board

Overview

Features and Benefits
Product Details

Features and Benefits

Measures Temperatures from -55°C to +125°C
Thermometer Accuracy is ±0.5°C
Thermometer Resolution is Configurable from 9 Bits to 12 Bits
Thermostat Output with User-Defined Nonvolatile Thresholds
SPI or 3-Wire Interface Selectable through Jumpers
6-Pin Pmod-Compatible Connector (SPI/GPIO)
Example Software Written in C for Portability
RoHS Compliant
Proven PCB Layout
Fully Assembled and Tested

Product Details

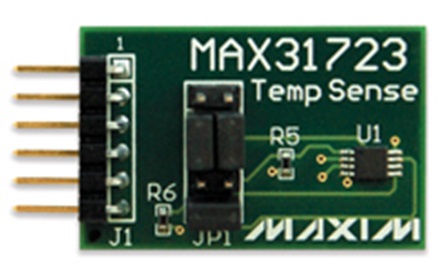

The MAX31723PMB1 peripheral module provides the necessary hardware to interface the MAX31723 digital thermometer and thermostat to any system that utilizes Pmod™-compatible expansion ports configurable for SPI and/or GPIO communication. The IC provides temperature-to-digital conversion with no additional components. Temperature readings are communicated from the device over an SPI interface or a 3-wire serial interface. The choice of interface is selectable by the user. For applications that require greater temperature resolution, the user can adjust the readout resolution from 9 bits to 12 bits. This is particularly useful in applications where thermal runaway conditions must be detected quickly. The thermostat has a dedicated open-drain output (active-low T_OUT). Two thermostat operating modes (comparator and interrupt) control thermostat operation based on user-defined nonvolatile trip points (T_HIGH and T_LOW).

Refer to the MAX31723 IC data sheet for detailed information regarding operation of the IC.
