MAX31329SHLD

Product Details

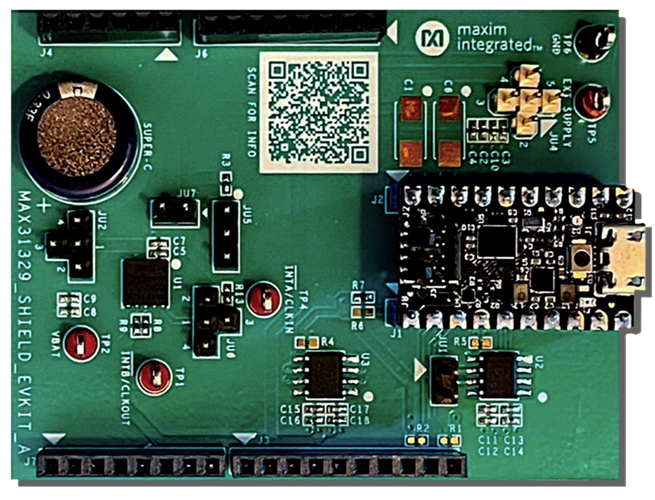

The MAX31329 shield is a fully assembled and tested PCB to evaluate the MAX31329, low-cost, I²C real-time clock (RTC) with an integrated crystal oscillator and a crystal. The shield operates from a single supply, either from a USB or an external power supply. The device incorporates a battery input and maintains accurate timekeeping when the main power to the device is interrupted. The integration of the crystal resonator enhances the long-term accuracy of the device and eliminates the external crystal requirement in the system. This device is accessed through an I²C serial interface provided by a MAX32625 PICO board.

The shield provides the hardware and software user interface (GUI) necessary to evaluate the MAX31329. It connects to the PC through a MAX32625 PICO board and a Micro-USB cable.

Applications

• Energy Meters
• Factory Automation
• Industrial Equipment
• IoT Device
• Medical
• Portable Instruments
• Servers
• Surveillance Cameras
• Test & Measurement equipment
