Overview

Features and Benefits

  • Quad smart serial-controlled 36V half bridges up to 1.7A/3.2A full scale
  • Supply voltage 4.5V to 36V DC
  • SPI and OTP registers
  • Highly flexible control methods (e.g. Bridge-Tied Load)
  • Two-level current/voltage sequencer
  • Detection of plunger movement
  • Power-saving features
  • Advanced diagnostics
  • Full set of protections

Product Details

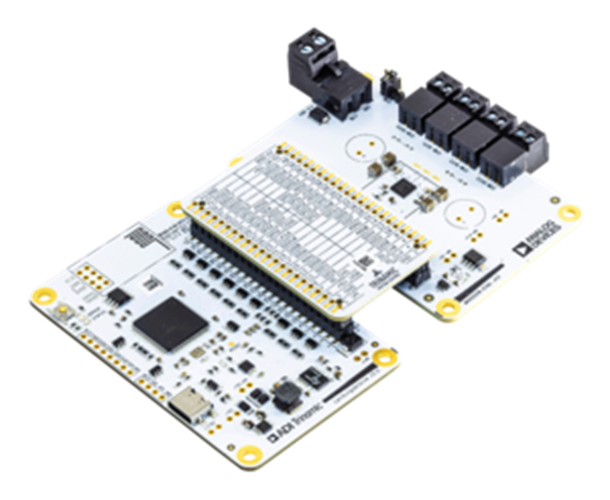

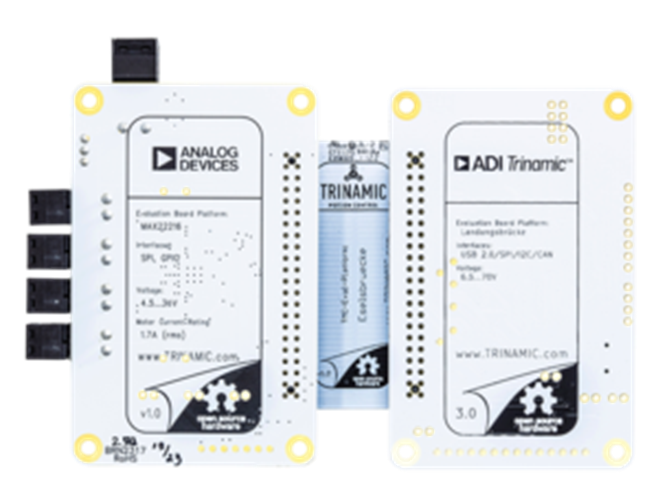

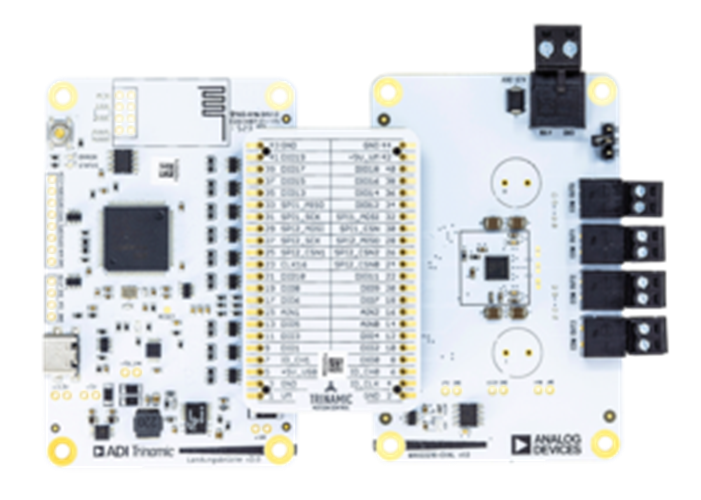

The MAX22216-EVAL allows evaluation of the MAX22216 in combination with the TRINAMIC evaluation board system or as stand-alone-board. It uses the standard schematic and offers several options to test different modes of operation. The MAX22216-EVAL can also be used in the evaluation of the MAX22217 by setting SNSF[1:0] = "10" for all channels while in use.

APPLICATIONS

  • Solenoid Valves and Relays
  • Real-Time Current Measurement
  • Proportional Valves
  • DC Motors
  • Digital-Output Interface
  • Bi-stable Latching Solenoid Valves

Markets and Technologies

Applicable Parts

System Requirements

  • MAX22216-EVAL evaluation board
  • Landungsbruecke with latest firmware
  • Eselsbruecke bridge board
  • Load (e.g. Solenoid)
  • USB interface
  • Power supply
  • Latest TMCL-IDE V3.0 and PC
  • Cables for interface, load, and power
