Overview

Features and Benefits

  • Easy Evaluation of the MAX22193
    • Configured for IEC 61131-2 Type 1/3
    • Support IEC 61131-2 Type 2 on Signal Channel
    • Parallel Output for Simultaneous Signal Delivery
    • Configurable External VDD24 Voltage Monitoring
  • Robust Design with ±2kV Input Surge Protection
  • Withstands ±8kV Contact Electrostatic Discharge (ESD) and ±15kV Airgap ESD
  • Fully Assembled and Tested
  • Proven PCB Layout

Product Details

The MAX22193 evaluation kit (EV kit) provides a proven design to evaluate the MAX22193, a high-speed, quad, industrial digital input with parallel output device.

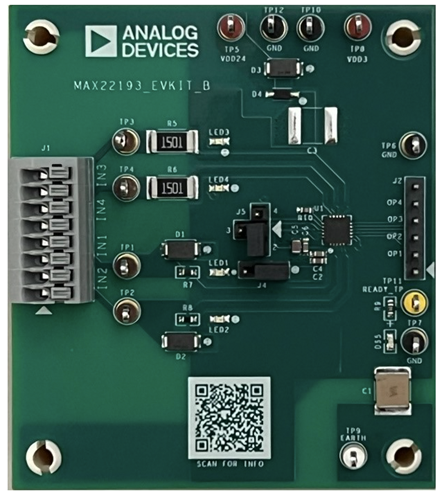

The MAX22193 EV kit provides a terminal block for all four inputs and a header for all four outputs for easy monitoring and evaluation. Four field-side LEDs are provided to indicate the input status, as well as a READY LED to indicate the MAX22193 is operating normally.

APPLICATIONS

  • Distributed Control System (DCS)
  • Industrial Automation
  • Motor Control
  • Process Automation
  • Programmable Logic Controllers (PLC)
