MAX2081600DEVKIT
Overview
Features and Benefits
- High Power Density and Efficiency
- Smart Power-Stage Support
- Integrated Output Current Monitor
- 16-ph N+M Dual-Loop Multiphase Architecture
- High-Speed Digital Interface
- PWMVID and AVSBus Support
- Telemetry Through PMBus
- Digitally Programmable Configuration
- Input Voltage, Current, and Power Monitoring
- Power-Stage Temperature Monitoring andReporting
- Fault, Command, and Data Logging (Black BoxFeature)
- Digital GPIO (OCP, OTW, VR Settled Indicators)
- Advanced Power Management
- Orthogonal Current Rebalance for Phase-CurrentBalance During Transients
- Programmable Phase Firing Order
- Protection Features
- Input and Bias Supply Undervoltage Protection
- Overcurrent Protection
- Password Protection
- Proven PCB Layout
- Fully Assembled and Tested
Product Details

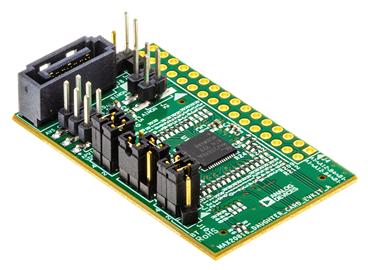

The MAX2081600D evaluation kit (EV kit) is a fully assembled and tested surface-mount daughter board that contains all the components necessary to evaluate the MAX20816 when plugged into a compatible main board.
The MAX20816 is a PMBus™-compatible, multiphase voltage regulator controller for low-voltage high-current AI applications. This dual-loop controller supports 16 phases in total, with independent pulse-width modulated (PWM) control signals and current-sense signals. Phase configuration for each output rail is set using PMBus to match the configuration of the main board. The IC is packaged in a 56-pin, 7mm x 7mm TQFN.
Windows® based graphical-user interface (GUI) software is available for use with the EV kit and can be downloaded from the Evaluation Hardware & Software page on the Analog Devices website under the Evaluation & Development Platforms section. Windows 10 or a newer Windows operating system is required to use the EV kit software.
