Overview

Features and Benefits

  • MAX20049ATEA/VY+ Installed (Other IC Options Available):
    • VOUT1 = 3.8V
    • VOUT2 = 1.8V
    • VOUT3 = 3.3V
    • VOUT4 = 1.2V
  • Inductors Installed Balance Size and Efficiency (see Bill of Materials)
  • PGOOD PCB Pad Provided for Voltage Monitoring
  • Configurable SUP1 and SUP2 Using Resistors R4 and R5
  • Selectable LDOIN3 Input Using Jumper JU1
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

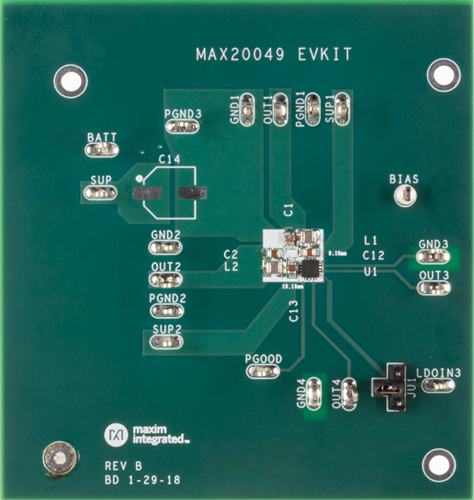

The MAX20049 evaluation kit (EV kit) is a fully assembled and tested application circuit for the MAX20049 mini dual step-down converters with dual LDOs. The EV kit is set up to provide four output voltages from one single input-voltage source. Both step-down converters (OUT1, OUT2) and LDO3 can accept a high input-voltage source (17V max). The IC also features a high-PSRR and low-noise LDO3. Each step-down converter can deliver up to 500mA load current, whereas LDO3 delivers 100mA and LDO4 400mA.

Applications

  • Camera Module — Surround, Rear, Front
  • Point of Load
