Overview

Features and Benefits

  • 4.25V to 60V Operating-Voltage Range
  • Features a TVS Diode across the Input Terminals
  • Features a Schottky Diode and a TVS Diode across the Output Terminals
  • Evaluates Undervoltage Lockout (UVLO), Overvoltage Lockout (OVLO), Three Current-Limit Types, and Current-Limit Threshold
  • UVLO Programmed to 4V
  • OVLO Programmed to 39.6V
  • Jumper-Configurable Current-Limit (Selected as 250mA by Default)
  • Current-Limit Mode Set to Autoretry by Default
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

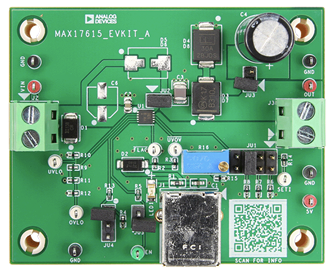

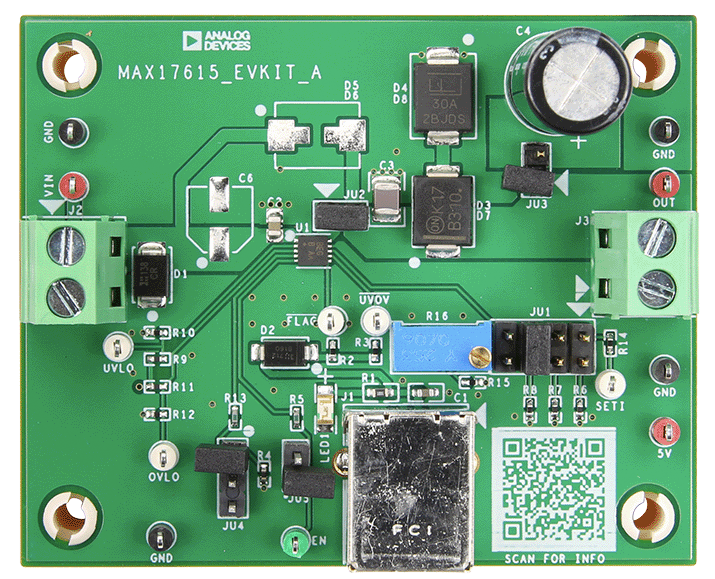

The MAX17615 evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates the MAX17615, a 4.25V to 60V, 250mA, current-limiter with overvoltage (OV), undervoltage (UV), and reverse protection in a 10-pin TDFN package. The EV kit can be configured to demonstrate adjustable overvoltage, undervoltage, different current-limit types, different current-limit thresholds and input and output reverse voltage protection.

APPLICATIONS

  • Small Total Solution Size (Sensor Systems)
  • Tight Current Limit Accuracy (Condition Monitoring, Battery Operated Modules)
  • Output Reverse Polarity Protection (Process Instrumentation, PLC, Network Modules)
