MAX17555AEVKIT

Product Details

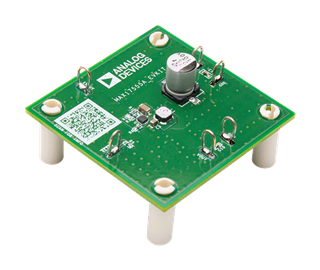

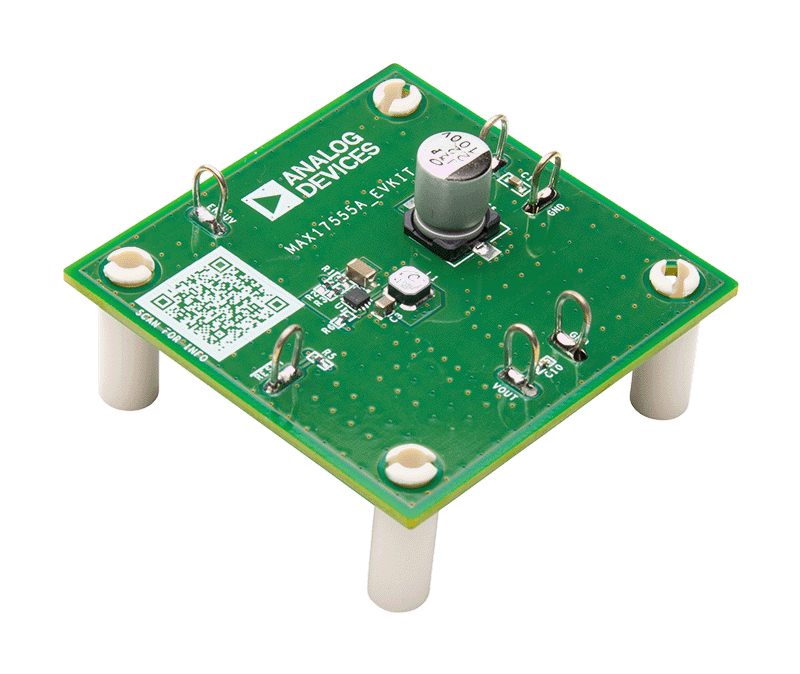

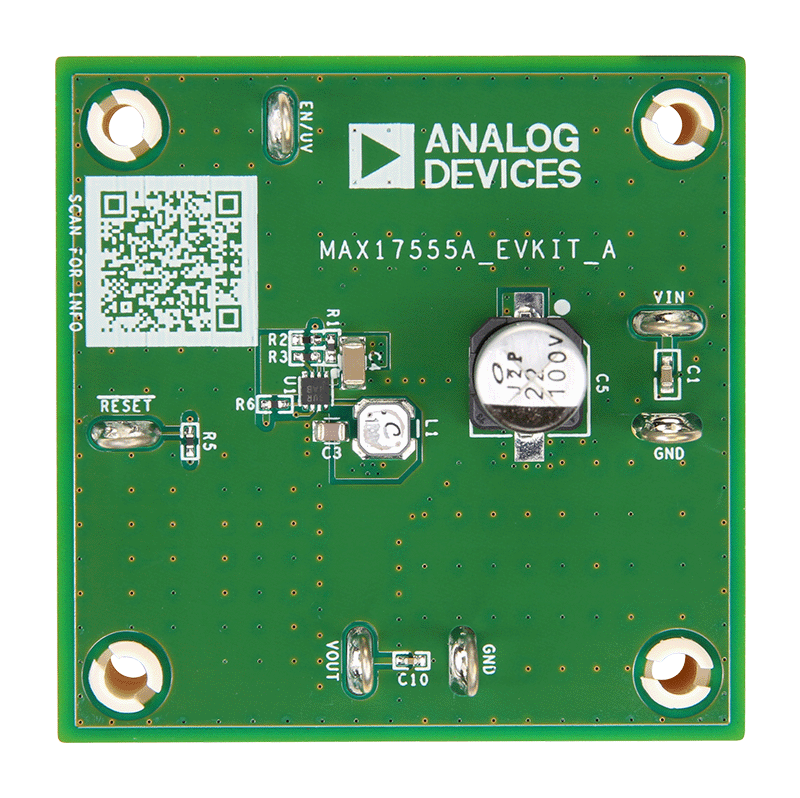

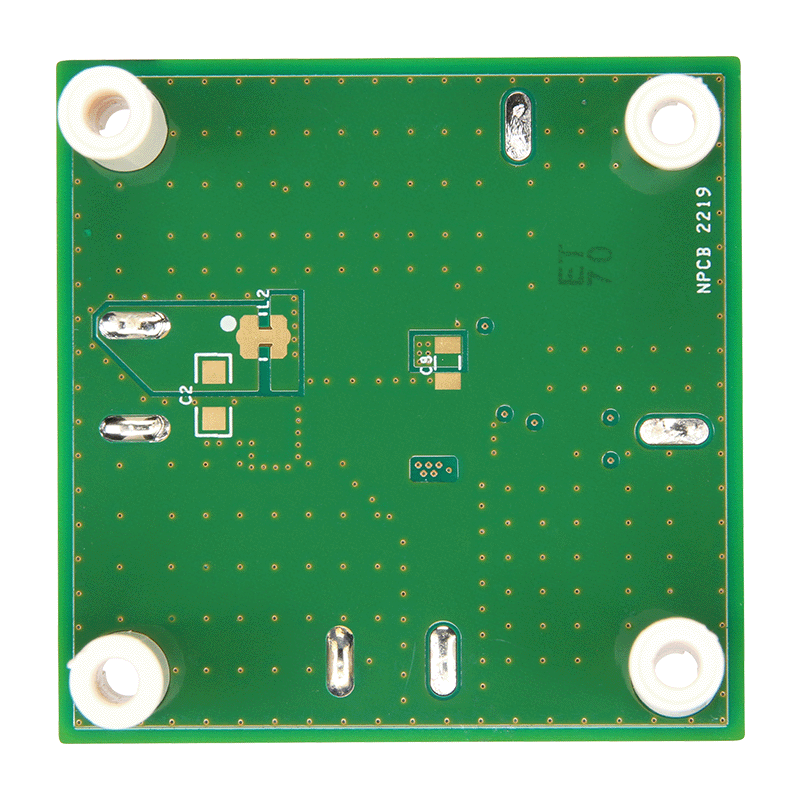

The MAX17555A evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates the performance of the MAX17555A, a 4V to 60V, 50mA, Ultra-Small, High Efficiency, Synchronous Step-Down DC-DC Converter in an 8-pin TDFN (2mm x 2mm) package. The EV kit is designed to operate over a 7.5V to 60V input and provides a 3.3V, 50mA output. The EV kit is set up to turn ON at 10.1V (max) and turn OFF at 7.5V (max) using the EN/UV and HYST pins. The MAX17555A works at a fixed 70kHz frequency and delivers a peak efficiency of 87% with supplied components.

The EV kit is simple to use and easily configurable with minimal external components. The MAX17555A features a programmable input EN/UV and HYST threshold and an open-drain RESET signal. The device offers built-in hiccup mode protection for overload and short circuit conditions, as well as thermal shutdown. The EV kit is complaint with CISPR32 class B standard.
