EVAL-HMC1114PM5E

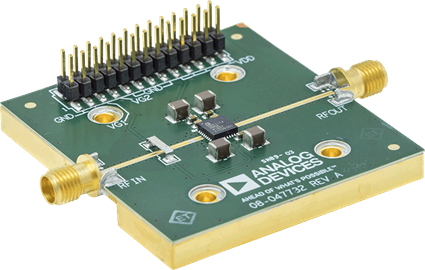

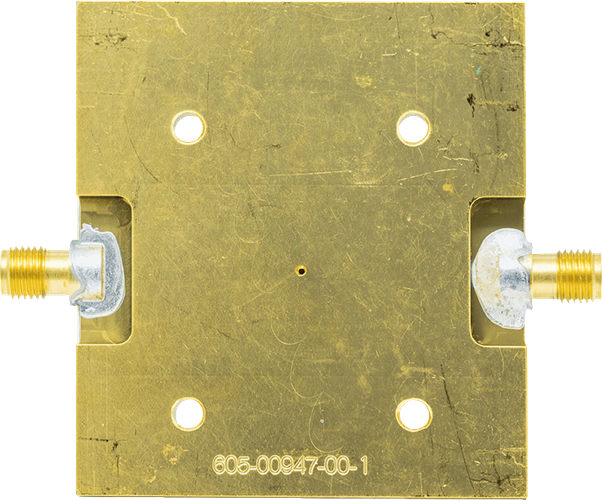

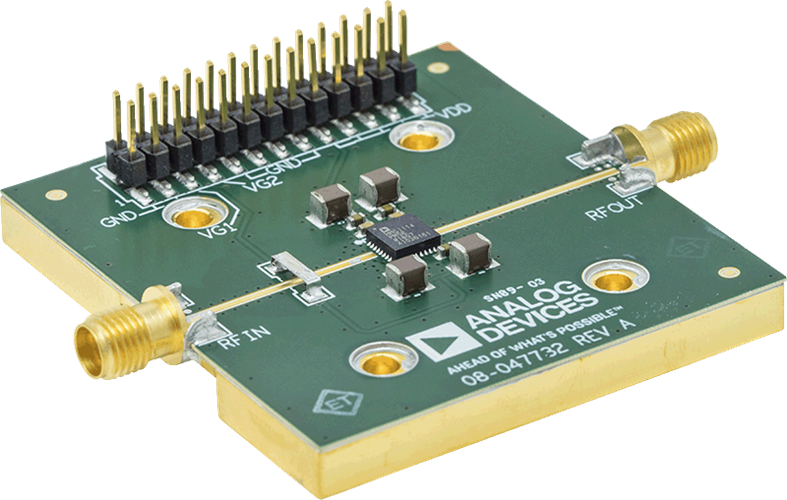

HMC1114PM5E Evaluation Board
Top
Overview
Product Details
Use RF circuit design techniques for the circuit board used in the application. Provide 50 Ω impedance for the signal lines and directly connect the package ground leads and exposed paddle to the ground plane. Use a sufficient number of via holes to connect the top and bottom ground planes. The evaluation PCB is available from Analog Devices, Inc., upon request.
Documentation & Resources
-
HMC1114PM5E Gerber Files12/6/2018ZIP220 K
