Overview

Product Details

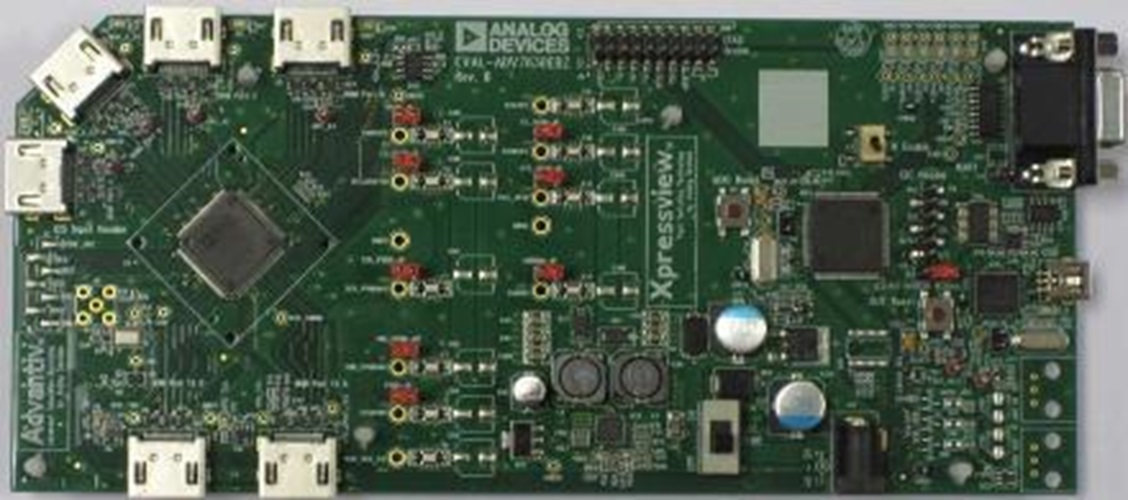

The EVAL-ADV7630EBZ is a board for evaluating the ADV7630. It has four HDMI inputs and two HDMI outputs. The onboard NXP LPC2387 microcontroller contains preloaded software driver that handles repeater functionality. The board has also a USB connector for communication with PC. It allows accessing registers and loading scripts.

Applicable Parts
