EVAL-ADRF5301
Evaluation of the ADRF5301, Silicon SPDT Switch, Reflective, 37 GHz to 49 GHz
Top
Overview
Features and Benefits
- Full-featured evaluation board for the ADRF5301
- Simple connection to test equipment
- On-board through line for calibration
Product Details

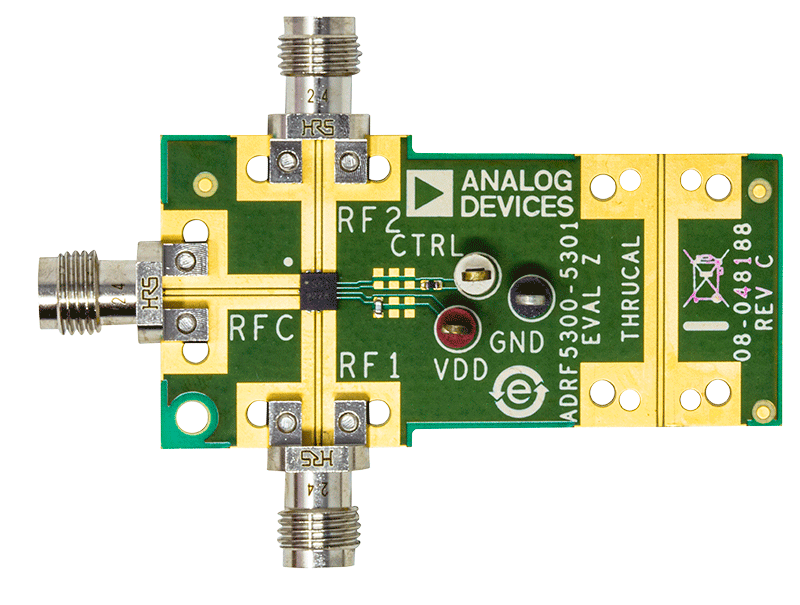

The ADRF5301-EVALZ is designed to evaluate the features and performance of the ADRF5301 silicon, SPDT, reflective switch, which has a frequency range of 37 GHz to 49 GHz. The ADRF5301-EVALZ (see Figure 1) is populated with a 2.4 mm connector.
For full details, see the ADRF5301 data sheet, which must be consulted in conjunction with the user guide when using the ADRF5301-EVALZ.
Markets and Technologies
Applicable Parts
Getting Started
EQUIPMENT NEEDED
- DC power supply
- Network and spectrum analyzer
Documentation & Resources
-
ADRF5301 Gerber Files9/18/2023ZIP55 K
