Overview

Features and Benefits

  • Full featured evaluation board for the ADRF5049
  • Simple connection to test equipment
  • Thru line for calibration

    • Product Details

    The ADRF5049 is a SP4T, nonreflective switch manufactured in the silicon process.

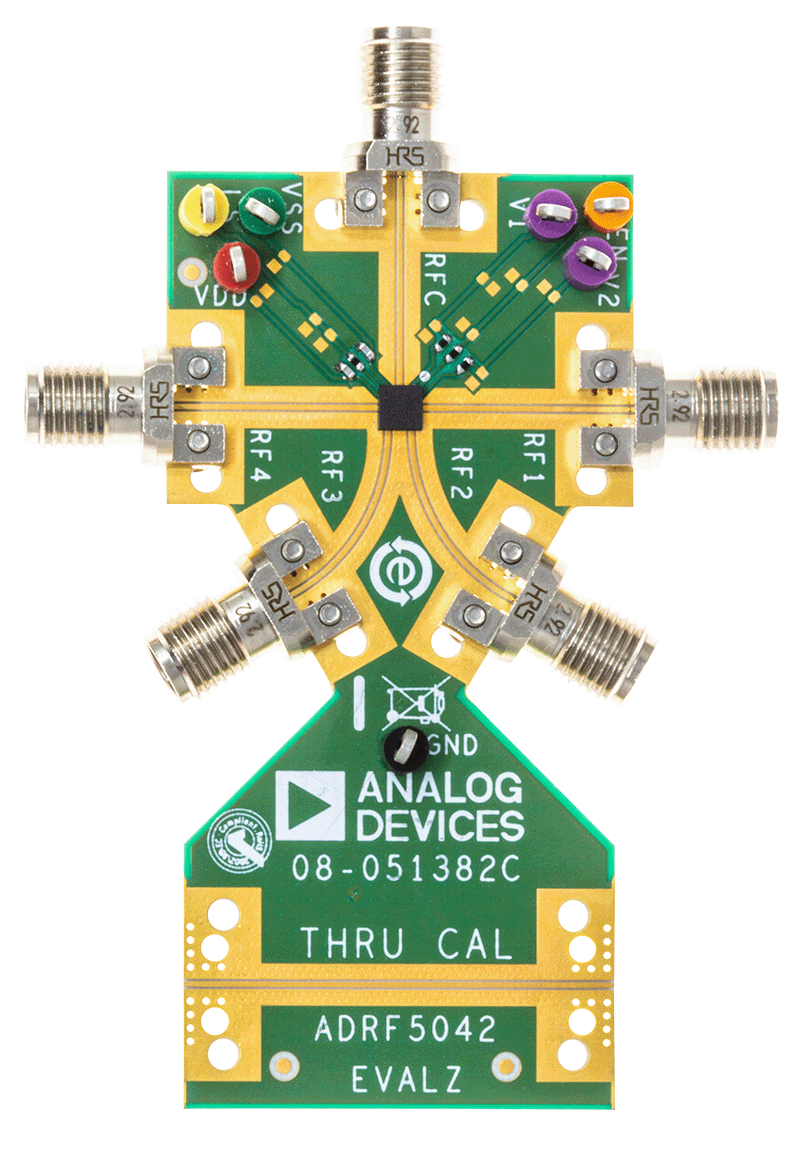

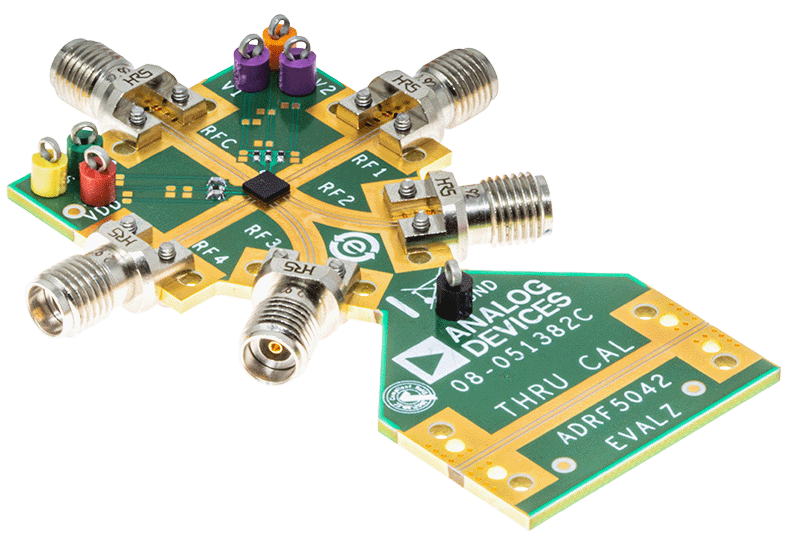

    The user guide describes the ADRF5049-EVALZ evaluation board, which was designed to simply evaluate the features and performance of the ADRF5049. A photograph of the evaluation board is shown in Figure 1 of the user guide.

    Note that the ADRF5049 IC is populated on the ADRF5042 bare evaluation board; however, the whole assembly is the ADRF5049-EVALZ.

    The ADRF5049 data sheet provides full specifications for the ADRF5049. Consult the ADRF5049 data sheet in conjunction with this user guide when using the ADRF5049-EVALZ.

    Applicable Parts

    Getting Started

    EQUIPMENT NEEDED

  • DC power supplies
  • Network analyzer
