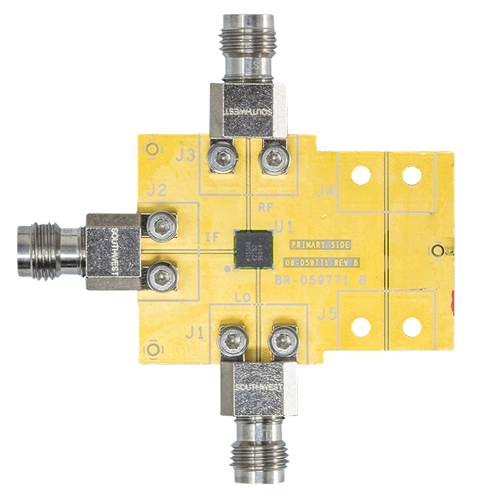

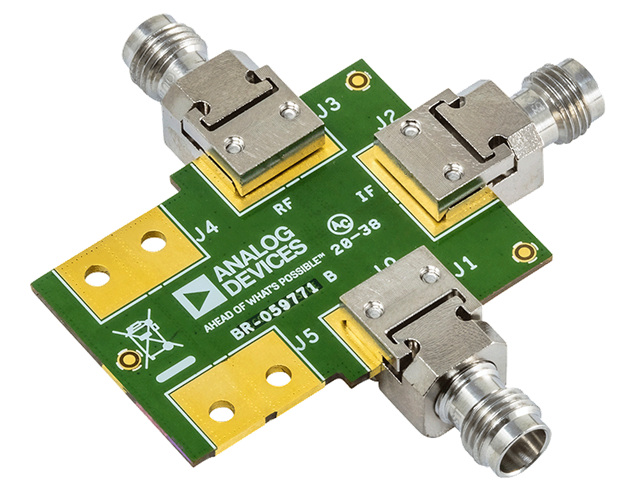

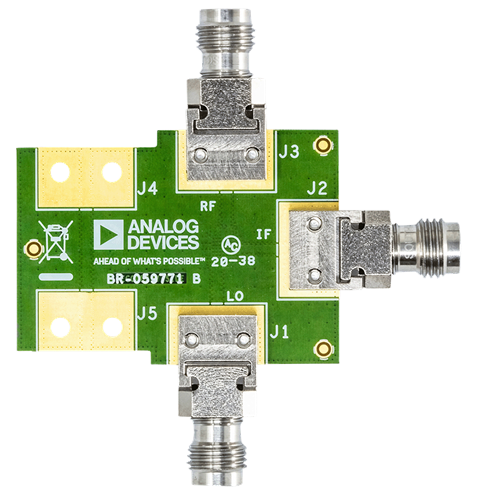

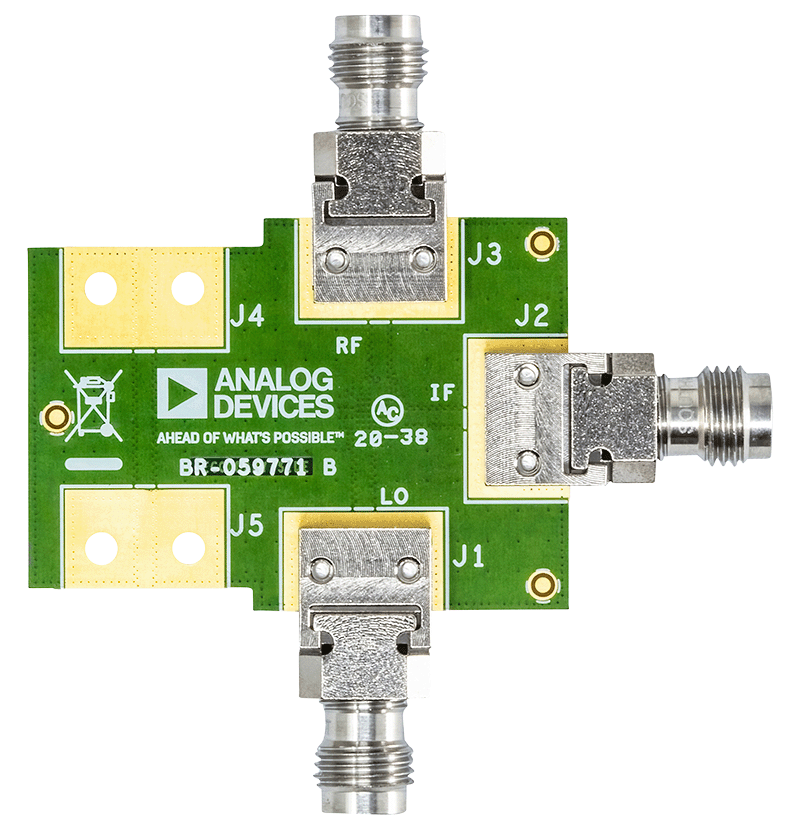

EVAL-ADMV1550
Evaluating the ADMV1550 GaAs, MMIC, Double Balanced Mixer
Top
Overview
Product Details
The circuit board used in the application must use RF circuit design techniques. Signal lines must have 50 Ω impedance, and the package grounds leads and exposed pad must be connected directly to the ground plane similarly to that shown in Figure 122. Use a sufficient number of via holes to connect the top and bottom ground planes. The evaluation circuit board is available from Analog Devices, Inc., upon request.
