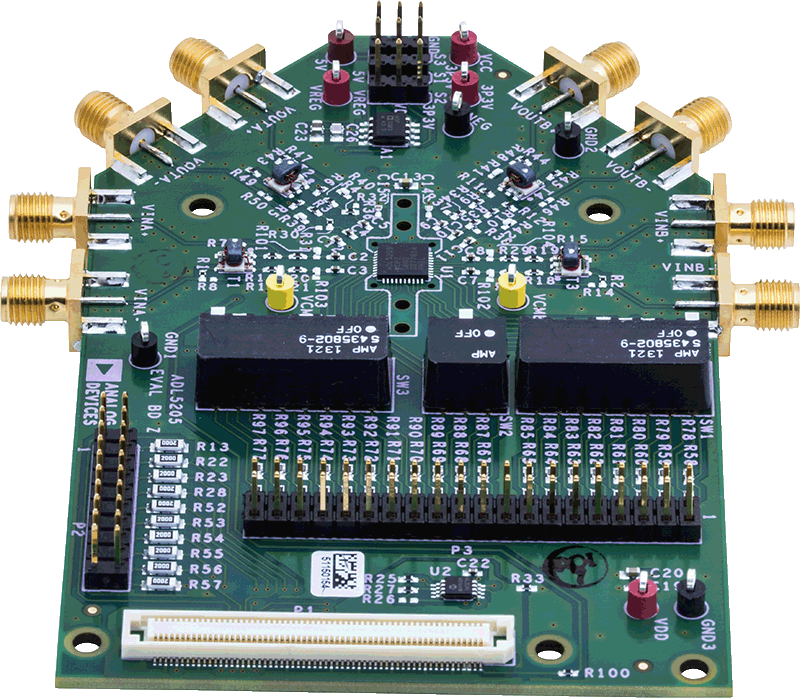

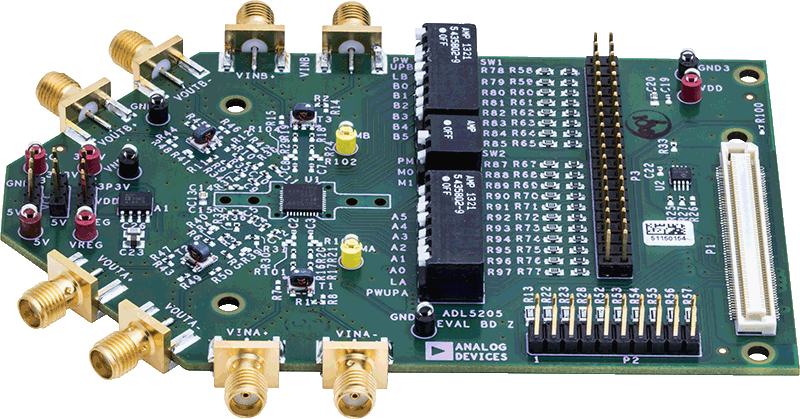

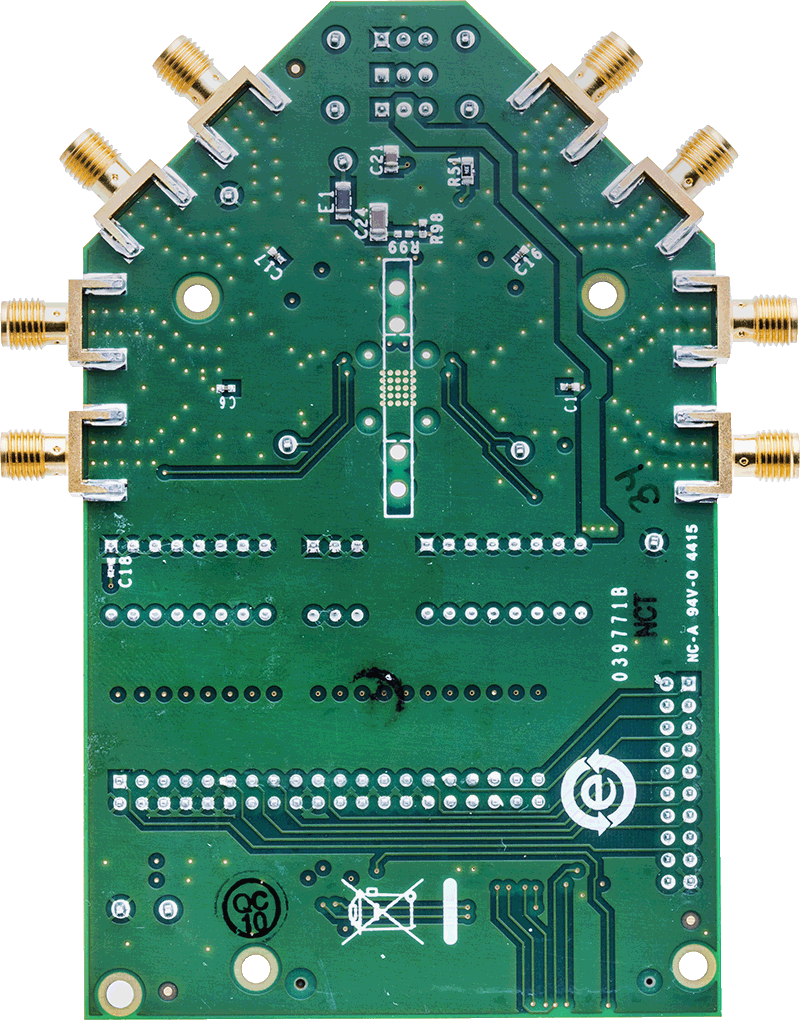

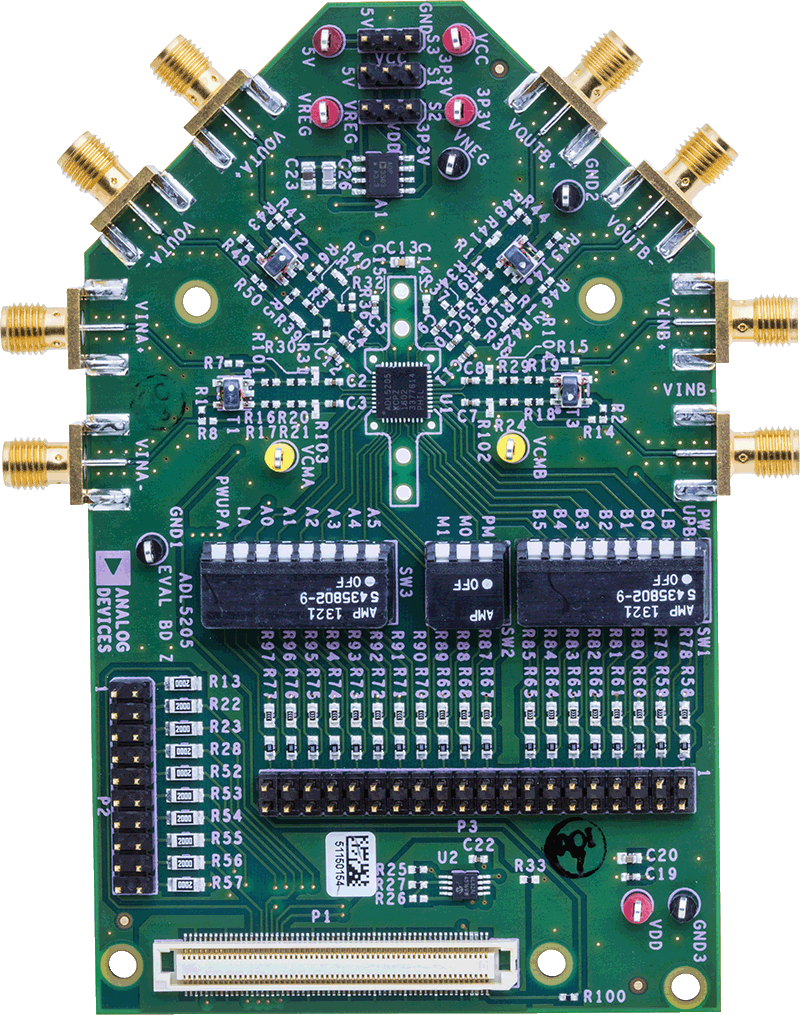

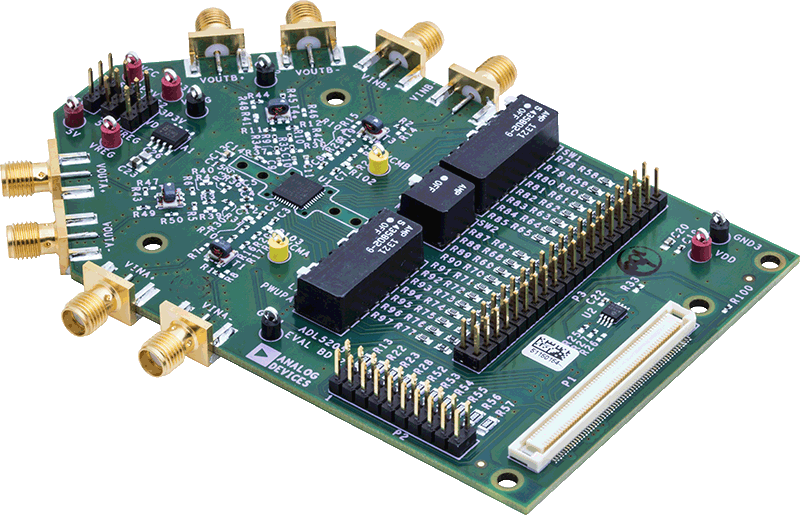

EVAL-ADL5205
ADL5205 Evaluation Board
Top
-web.gif?rev=7da888e9b4824ad19384b3903fe853bb&sc_lang=en&h=500&thn=1&hash=B62410CF35764DBBBF47B3119887559E)
-web.gif?rev=f2ae3fa5c6c34471966be5be0ed9ed26&sc_lang=en&h=500&thn=1&hash=0346E4392B5B206FDCB120DE384E35E0)
-web.gif?rev=7da888e9b4824ad19384b3903fe853bb&sc_lang=en&h=270&thn=1&hash=D8BB1693994D27B316116FB811CC94D8)
-web.gif?rev=f2ae3fa5c6c34471966be5be0ed9ed26&sc_lang=en&h=270&thn=1&hash=8348D0C868B8BFCB946B2DE5BBF66D28)
Overview
Product Details
The ADL5205-EVALZ evaluation board provides interfaces to the ADL5205 Dual DGA through serial and the parallel interface ports, as well as through the USB port on a Microsoft® Windows® PC via the system demonstration platform (SDP) interface board. Additionally, toggle switches allow the manually control of all the digital functions for the Dual DGA.A 3.3 V low dropout (LDO) voltage regulator supplies the logic circuits when the device is running on a 5 V supply. On-board baluns convert single-ended input signals to differential form for input to the device and convert the differential output signals of the device to single-ended form for output.
The ADL5205-EVALZ evaluation board is built on a 4-layer 370HR (FR4) Printed Circuit Board.
Markets and Technologies
Applicable Parts
Documentation & Resources
-
ADL5205 Gerber Files7/27/2017ZIP345 K
