ADIS16006/PCB
ADIS16006 Daughter Board
Top
Overview
Product Details

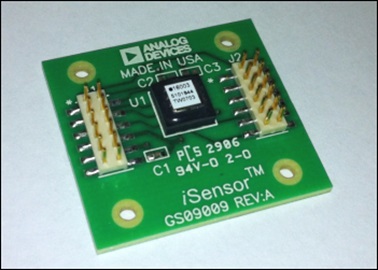

The ADIS16006/PCB is a breakout board, which provides (1) ADIS16006CCCZ and (1) interface PCB to simplify the process of prototyping during the early stages of system design and evaluation. The ADIS16006CCCZ is a digital accelerometer, which provides a serial peripheral interface (SPI) for all digital communications. It comes in a 12-pin LGA package. The interface PCB provides access to the ADIS16006CCCZ, using dual-row, 12-pin connectors, which supports standard ribbon cable systems and hand-soldering connection techniques.
Applicable Parts
Documentation & Resources
-
UG-363: ADISUSB User Guide1/18/2012PDF671 kB
-
ADISEVAL iSensors® PC Evaluation System (Rev. PrC)6/13/2016PDF803 K
-
iSensor® Evaluation Tool6/10/2016
-
ADISUSBZ iSensor® PC-USB Evaluation System (Rev. PrA)12/19/2014PDF1 M
-
LabVIEW driver for ADIS16003, ADIS1600610/3/2013
-
iSensor® Evaluation Tools Presentation12/18/2008PDF1405 kB
-
ADIS16006/PCB Evaluation Board (Rev. PrD)12/20/2006PDF89 K
