EVAL-ADF4155
ADF4155 Evaluation Board
Top
Overview
Features and Benefits
- Self-contained board, including ADF4155 synthesizer, differential 122.88 MHz temperature controlled crystal oscillator (TCXO), voltage controlled oscillator (VCO) 5.725 GHz to 5.875 GHz, loop filter, USB interface, and voltage regulators
- Designed for a 61.44 MHz phase frequency detector (PFD) frequency, 0.9 mA charge pump current (lcp), and 80 kHz loop bandwidth
- Accompanying software allows complete control of synthesizer functions from a PC
- Externally powered by 5.5 V
Product Details

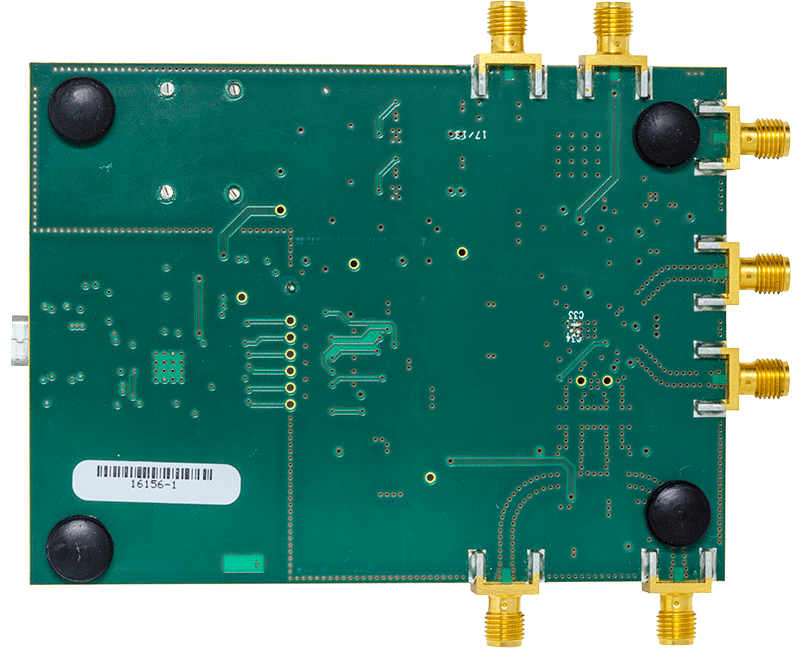

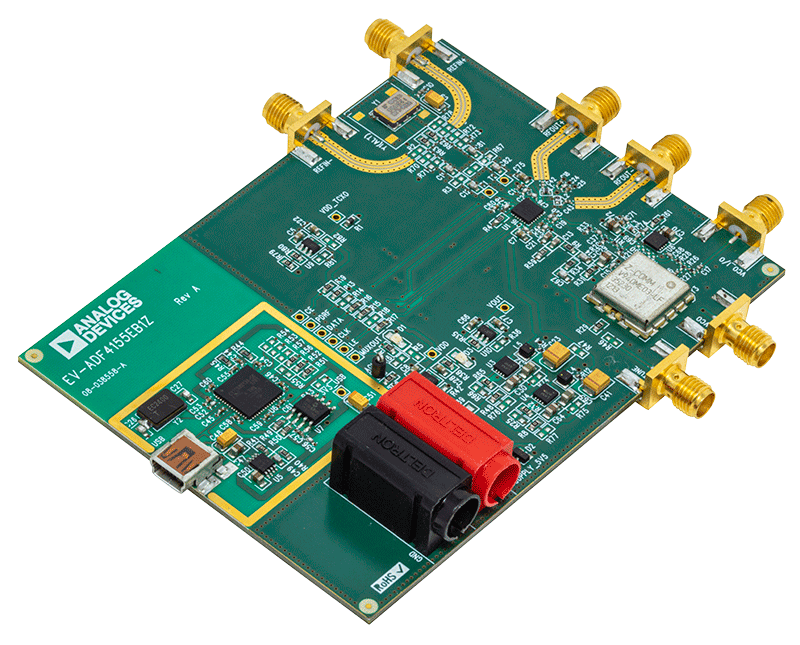

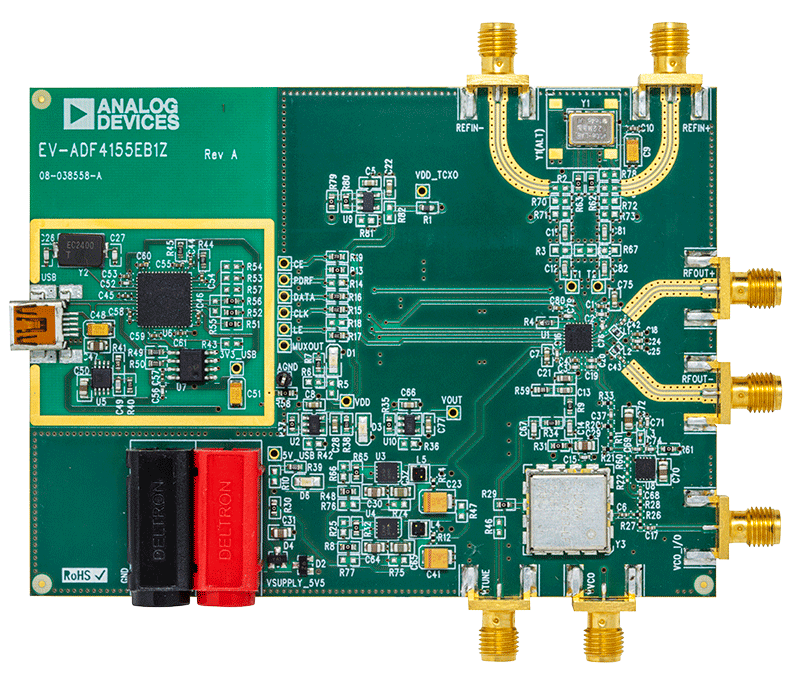

The EV-ADF4155EB1Z board evaluates the performance of the ADF4155 frequency synthesizer for phase-locked loops (PLLs). The evaluation board contains the ADF4155 synthesizer, the loop filter, a VCO, a differential 122.88 MHz reference TCXO, a USB interface, power supply connectors, and SMA connectors. A USB cable is included to connect the board to a PC USB port.
In addition, the evaluation kit contains Windows-based software to allow easy programming of the synthesizer.
Applicable Parts
Documentation & Resources
-
UG-476: PLL Software Installation Guide12/21/2018PDF421 K
-
UG-686: Evaluation Board for the ADF4155 PLL Frequency Synthesizer6/24/2014PDF2493 kB
-
ADF4155 Design Files11/16/2020ZIP1 M
