EVAL-ADE1201EBZ Evaluation Board

Overview

Features and Benefits
Product Details

Features and Benefits

Fully featured evaluation board for the ADE1201
PC control in conjunction with the SDP EVAL-SDP-CB1Z controller board
PC software for control and data analysis
Standalone capability

Product Details

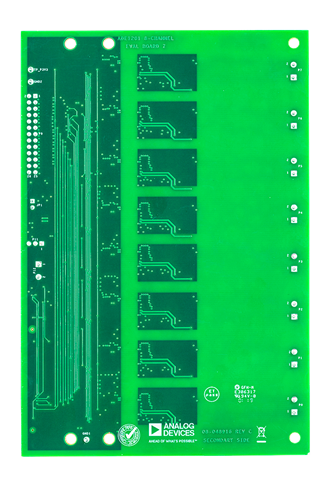

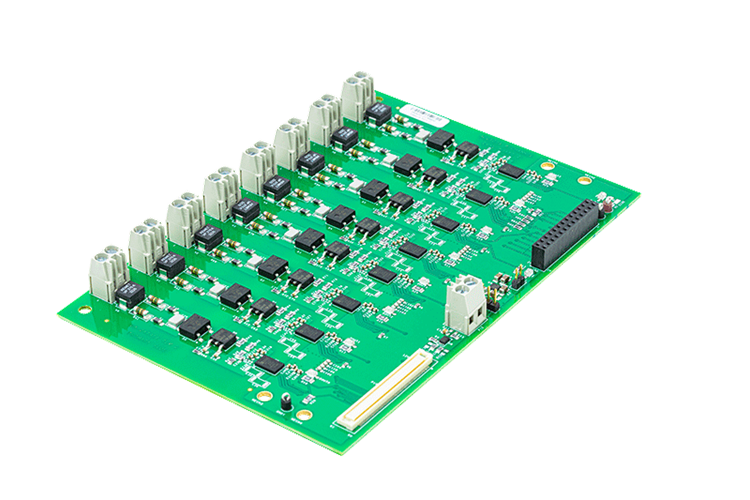

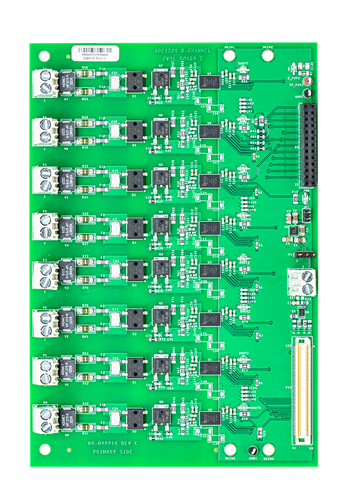

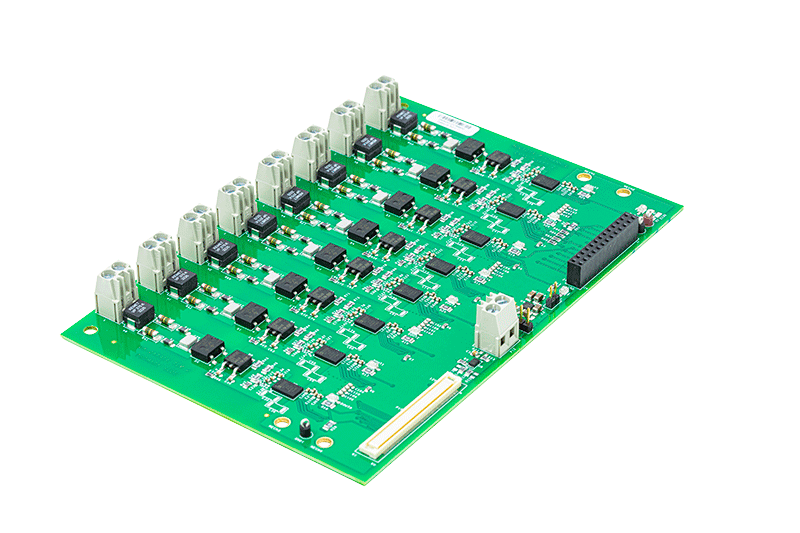

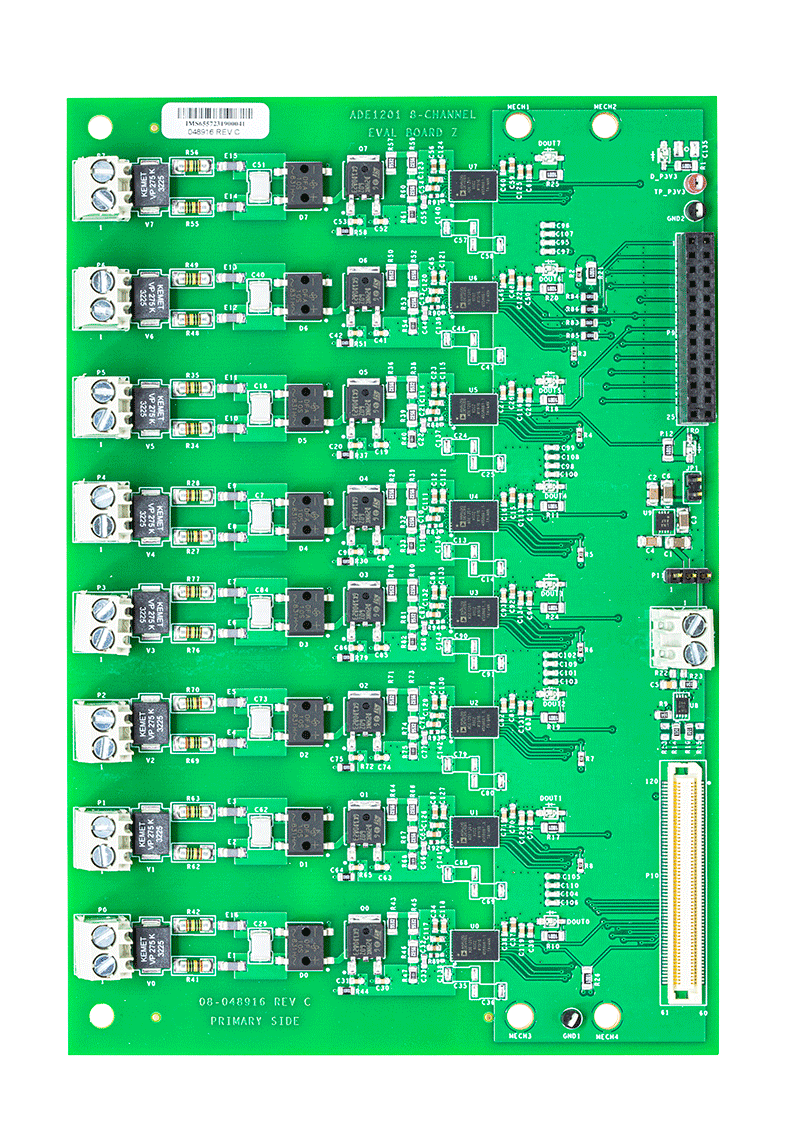

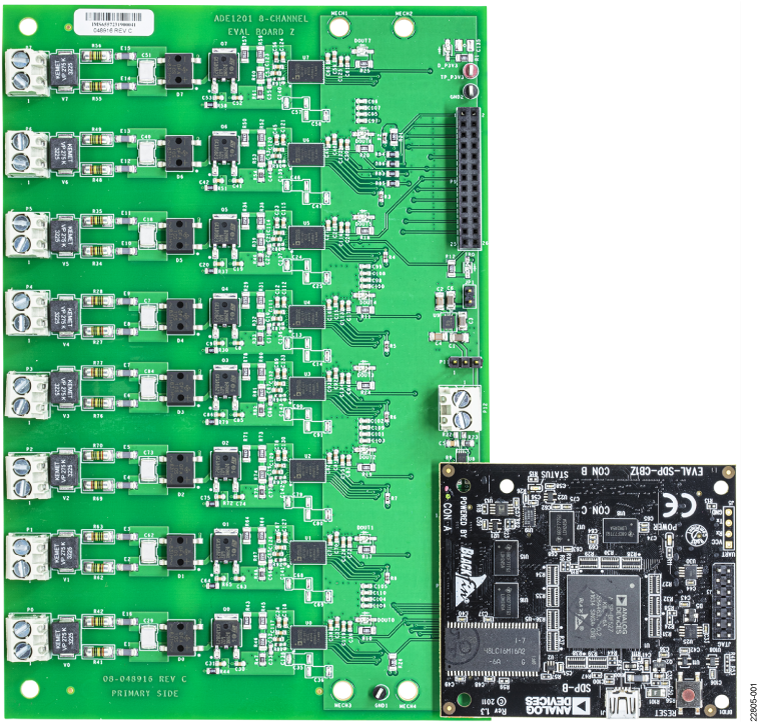

The EVAL-ADE1201EBZ is a fully featured evaluation board designed to evaluate the ADE1201 single channel, configurable, isolated digital binary input IC performance in a context similar to a real binary input interface application. The system demonstration platform (SDP) EVAL-SDP-CB1Z controller board (SDP-B) must be purchased separately from the evaluation kit. The evaluation kit includes evaluation software, written in LabVIEW^®, which provides access to the registers and features of the device through a PC interface.

For full specifications on the ADE1201, consult the ADE1201 data sheet, which must be used in conjunction with this user guide when using the EVAL-ADE1201EBZ.
