User Guide Rev. 0
1 View All

Overview

Features and Benefits

  • ADAQ4381-4 quad, 14-bit,
  • 4 MSPS, μModule® evaluation boards
  • Versatile analog signal conditioning circuitry
  • On-board LDO and power supply circuits
  • PC software for control and data analysis of time and frequency domain
  • System demonstration platform-compatible (SDP-H1, high-speed controller board (EVAL-SDP-CH1Z))

Product Details

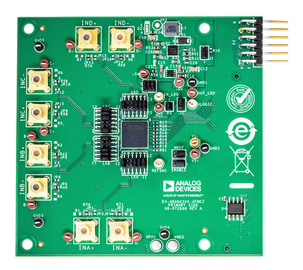

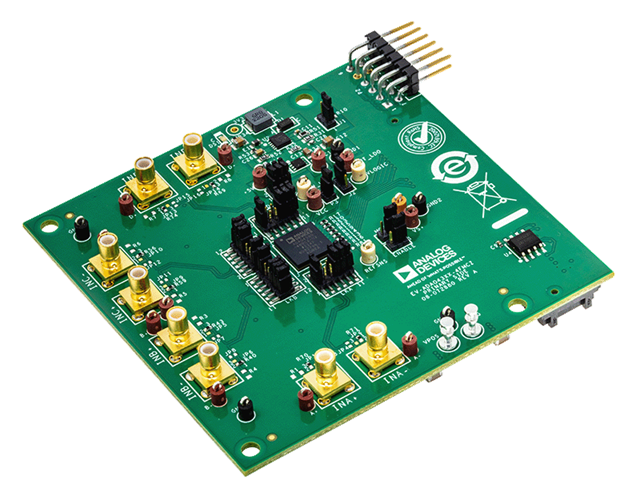

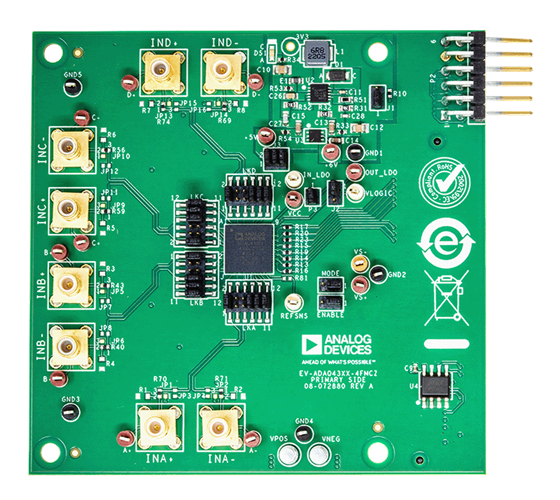

    The EV-ADAQ4380-4FMCZ, EV-ADAQ4370-4FMCZ, and EVADAQ4381- 4FMCZ evaluation boards enable a simple evaluation of the ADAQ4380-4, ADAQ4370-4, and ADAQ4381-4 quad, 16-/14-bit, 4/2 MSPS, simultaneous sampling, μModule data acquisition solutions, respectively. The evaluation boards demonstrate the performance of the ADAQ4380-4, ADAQ4370-4, and ADAQ4381-4 μModules and are versatile tools for variety of applications.

    The ADAQ4380-4, ADAQ4370-4, and ADAQ4381-4 μModules combine multiple common signal processing and conditioning blocks into a single device that includes a low noise, fully differential analog-to-digital converter (ADC) drivers, a high precision 3.3 V reference chip, low-noise reference buffer, high resolution, quad, 16-/14-bit, 4/2 MSPS simultaneous sampling successive approximation register (SAR) ADC, and all the critical passive components necessary for optimum performance.

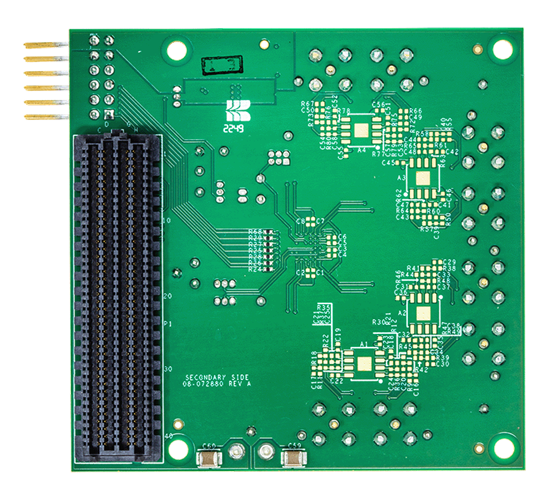

    The EV-ADAQ4380-4FMCZ, EV-ADAQ4370-4FMCZ, and EVADAQ4381- 4FMCZ evaluation boards interface with high-speed system demonstration platform SDP-H1 (EVAL-SDP-CH1Z) board through a 160-pin FMC connector.

    Refer to the ADAQ4380-4, ADAQ4370-4, and ADAQ4381-4 data sheets for full specifications, which must be consulted in conjunction with this user guide when using the EV-ADAQ4380-4FMCZ, EV-ADAQ4370-4FMCZ, and EV-ADAQ4381-4FMCZ evaluation boards. For the current schematic, layouts, and bill of materials, refer to the EVAL-ADAQ4380-4, EVAL-ADAQ4370-4, or EVALADAQ4381- 4 product page.

Markets and Technologies

Applicable Parts

Getting Started

EQUIPMENT NEEDED

  • PC running Windows® 10 or higher
  • SDP-H1 (EVAL-SDP-CH1Z) controller board
  • Low noise, precision signal source (such as APX500 series)
  • Standard USB A to USB mini-B
  • Band-pass filter suitable for 16-bit testing (optional, value based on signal frequency)

SOFTWARE NEEDED


  • ADAQ4380-4, ADAQ4370-4, or ADAQ4381-4 ACE plug-in
  • SDP-H1 driver

Documentation & Resources

  • View All (3)
  • Demo Board Schematic (1)
  • User Guide (1)
  • Evaluation Design File (1)
