Overview

Product Details

Equipment Needed

  • AC to 12V DC power supplies (2)
  • Analog signal source, anti-aliasing filter and SMA cable
  • Clock source and SMA cable
  • PC running Windows
  • USB 2.0 cable

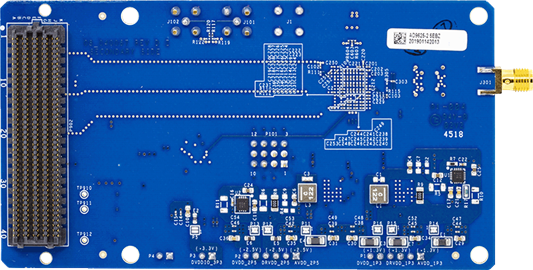

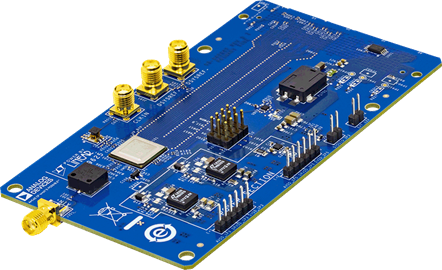

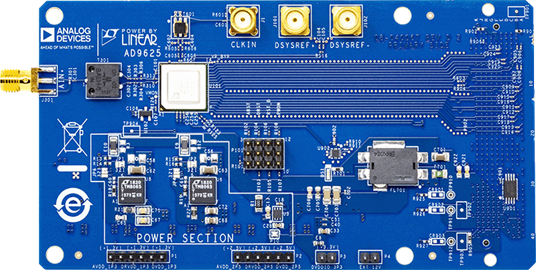

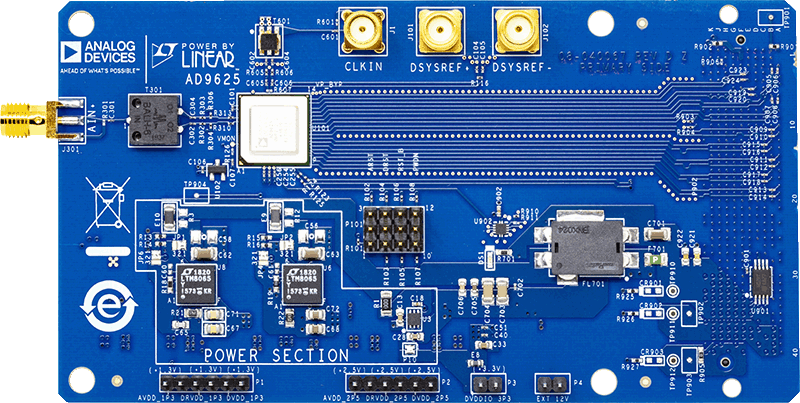

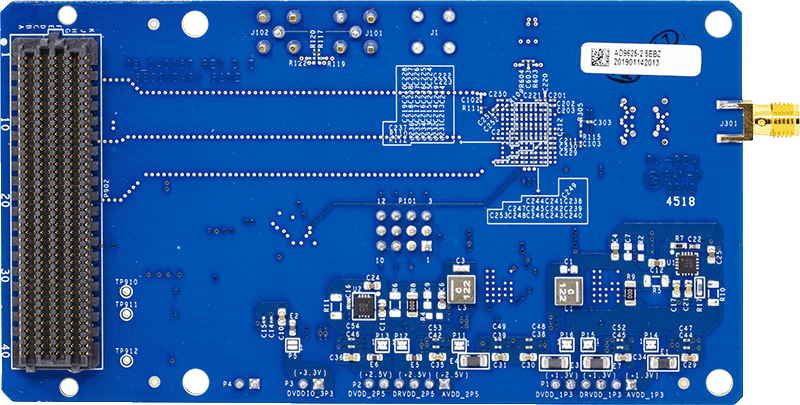

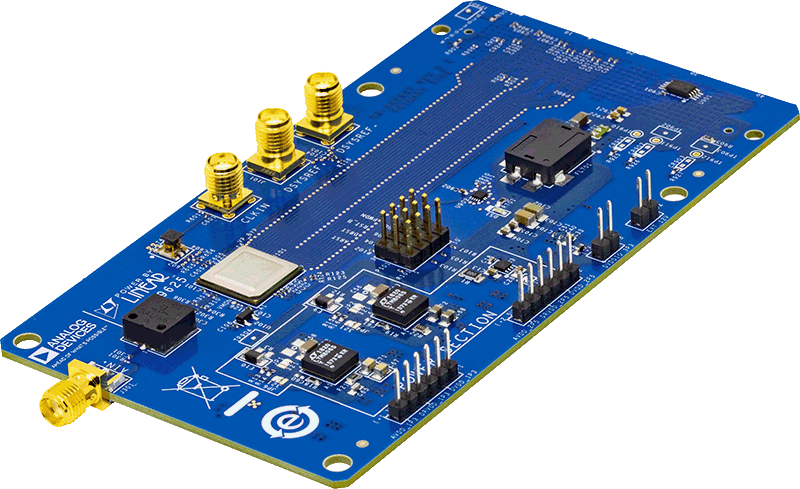

  • AD9625 Evaluation Board

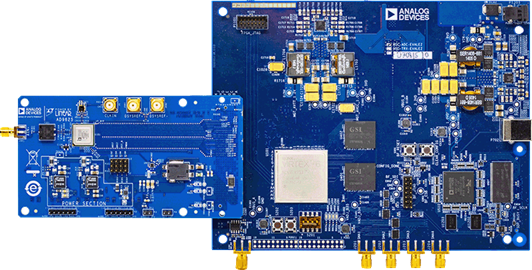

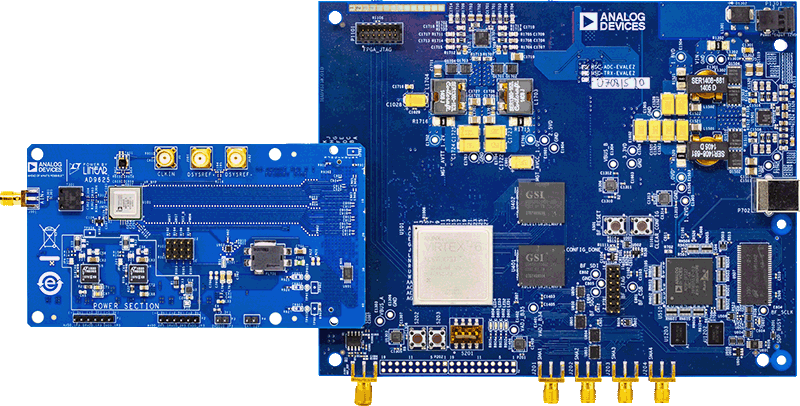

  • HSC-ADC-EVALEZ FPGA Based Data Capture Board

Helpful Documents

  • AD9625 Datasheet
  • VisualAnalog Converter Evaluation Tool User Manual, AN-905
  • High Speed ADC SPIController Software User Manual, AN-878
  • Interfacing to High Speed ADCs via SPI, AN-877

Software Needed

  • VisualAnalog
  • SPIController

Analog Option

  • Single-Ended to Differential Balun input to AD9625

All documents and software are available at http://www.analog.com/fifo.

For any questions please send an email to highspeed.converters@analog.com.

Markets and Technologies

Applicable Parts

Documentation & Resources

  • View All (4)
  • Design Tool (2)
  • Evaluation Design File (1)
  • Application Note (1)
    • Document Type

    Software

    Design Tool

    SPIController
    The high speed ADC SPI program allows the user to control advanced features on high speed, analog-to-digital converters (ADCs) with SPI capability.
    Visual Analog
    For designers who are selecting or evaluating high speed ADCs, VisualAnalog™ is a software package that combines a powerful set of simulation and data analysis tools with a user-friendly graphical interface.

    Related Hardware (1)

    Controller Boards
